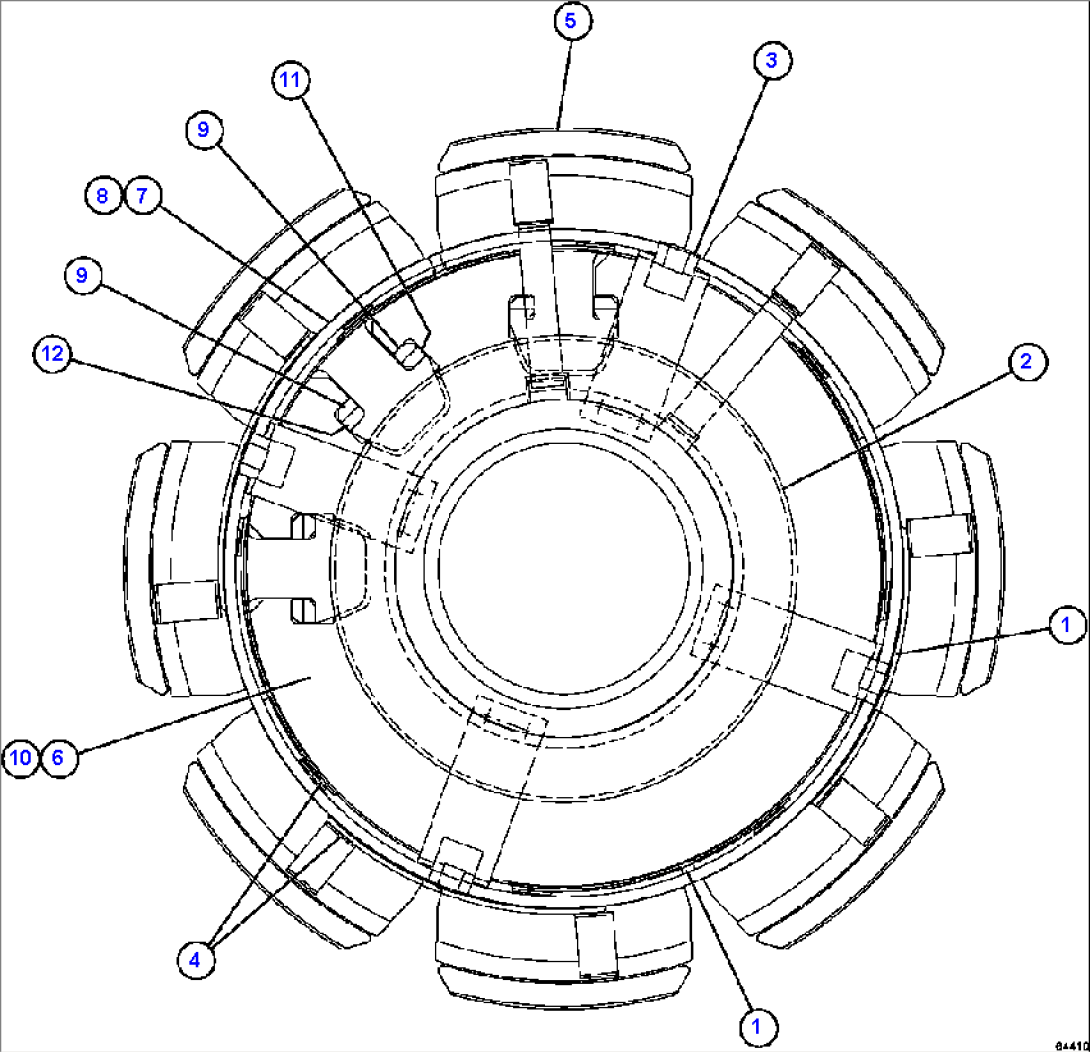

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VJ1063 | STRAP, CONNECTION | ||
| 2 | BF1480 | COLLECTOR RING ASSEMBLY | ||
| 3 | VE4643 | CLAMP, SUPPORT | ||
| 4 | BF4833 | STRIP, BRAZING | ||
| 5 | 58E-06-03070 | COIL, ROTOR | ||
| 6 | VE7006 | CORE, ROTOR | ||
| 7 | BF3105 | RING, TIE | ||
| 8 | BF1007 | TAPE, GLASS | ||
| 9 | VE1001 | STRIP, SLIPPER | ||
| 10 | GE1084 | SHAFT, ROTOR | ||
| 11 | VJ1069 | WEDGE | ||
| 12 | VJ1068 | WEDGE | ||
| 12 | (ALSO SEE FIGURE 64409 FOR BALANCE OF | |||
| 12 | ROTOR ASSEMBLY COMPONENT PARTS.) |
