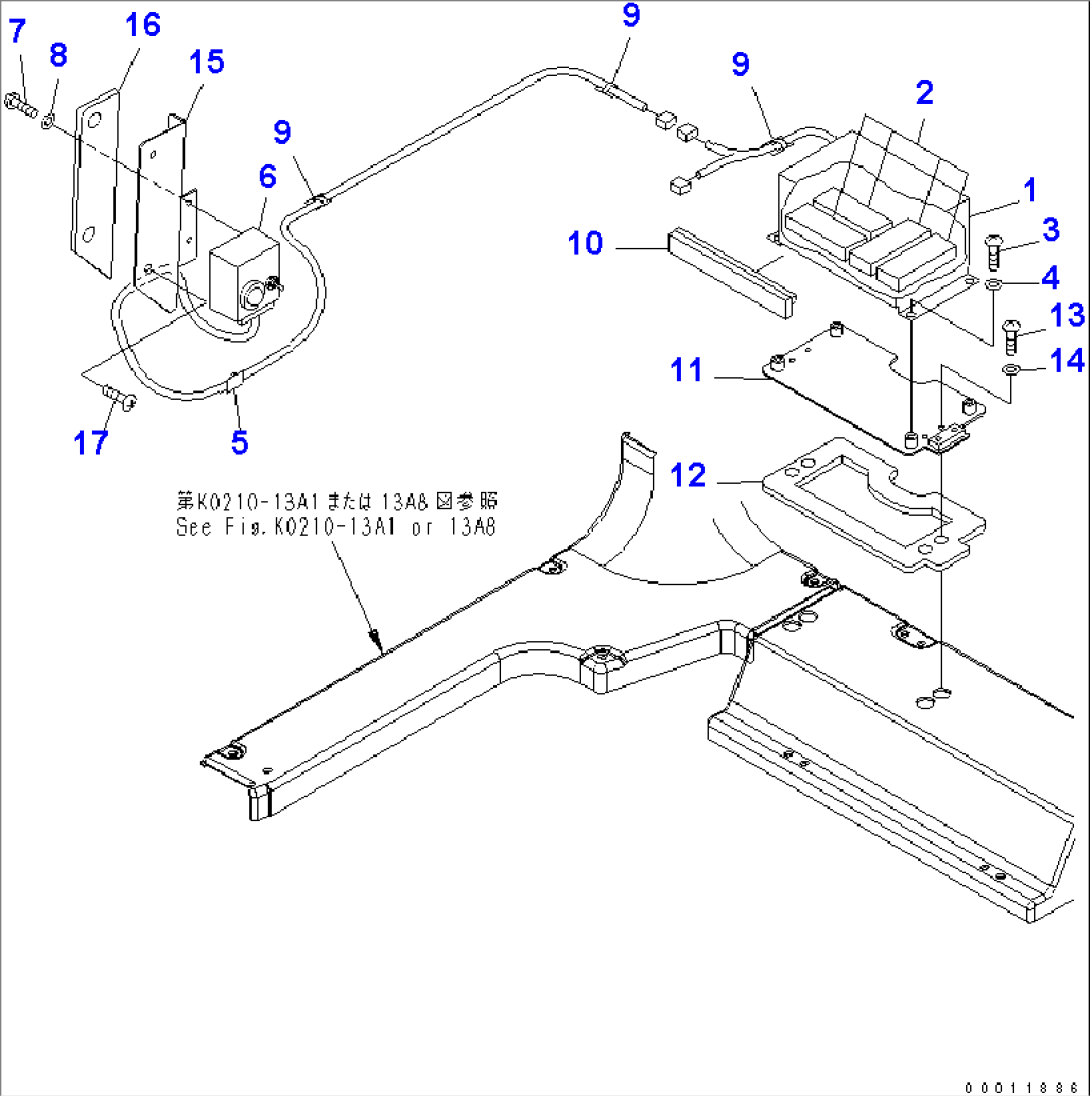

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-71710 | ANGLE SENSOR ASSY | 1020- | |
| 2 | 7861-92-5330 | SENSOR | 1020- | |
| 3 | 01245-00616 | SCREW | 1020- | |
| 4 | 01643-70623 | WASHER | 1020- | |
| 5 | 21W-54-14690 | CLIP | 1020- | |
| 6 | 154-06-71720 | LAMP ASSY | 1020- | |
| 7 | 01245-00816 | SCREW | 1020- | |
| 8 | 01643-70823 | WASHER | 1020- | |
| 9 | 21W-54-14690 | CLIP | 1020- | |
| 10 | 17A-Z11-1790 | SHEET | 1020- | |
| 11 | 17A-Z11-1730 | BRACKET ---------- | 1020- | |
| 12 | 17A-Z11-1770 | (BONDED) | 1020- | |
| 13 | 01245-00625 | SCREW | 1020- | |
| 14 | 01643-70623 | WASHER | 1020- | |
| 15 | 17A-Z11-1740 | BRACKET | 1020- | |
| 16 | 17A-Z11-1780 | (BONDED) | 1020- | |
| 17 | 01245-00830 | SCREW | 1020- |
