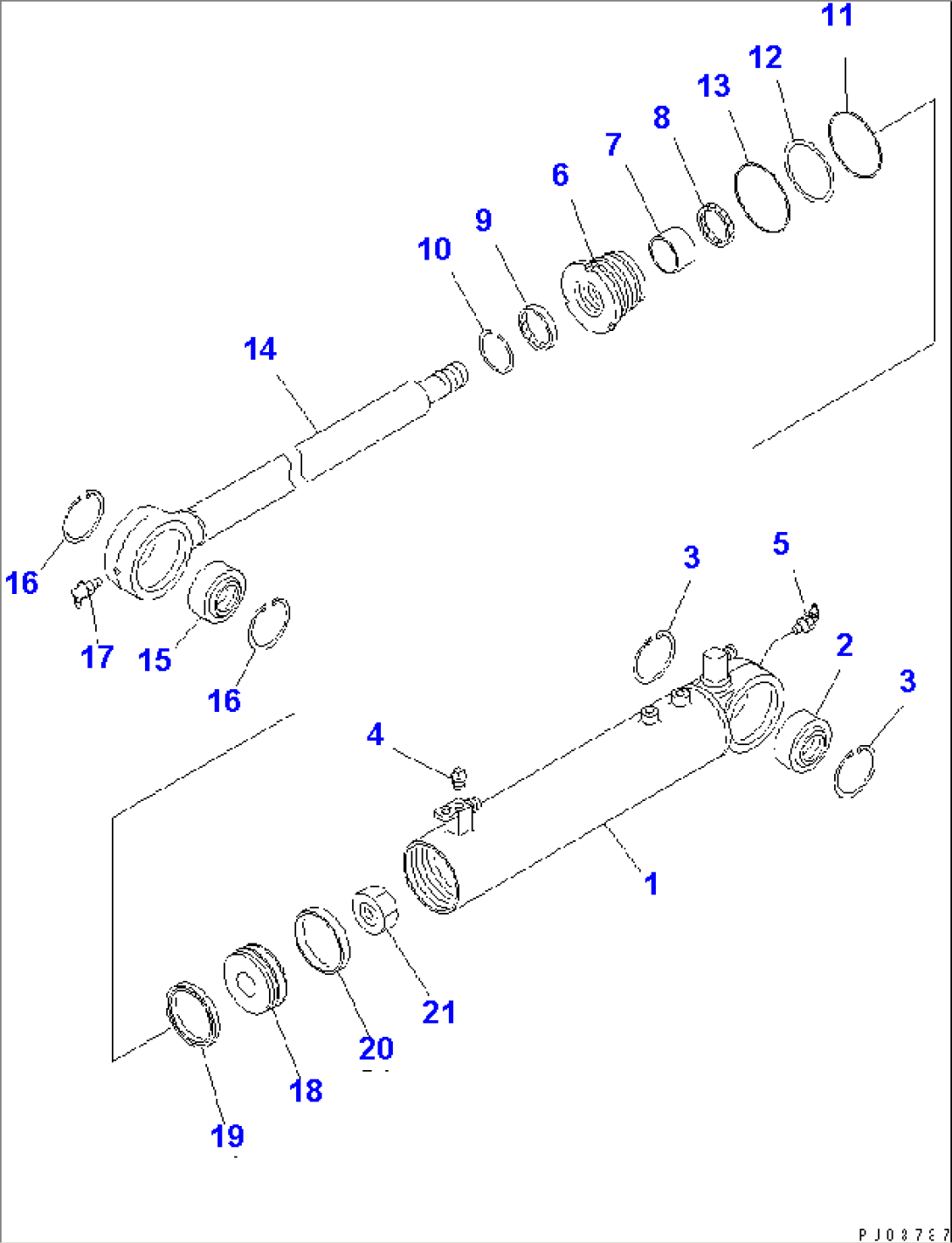

| Item | Part No. | Part Name | Qty | Serial No. |
| 114-63-02032 | CYLINDER ASS'Y,ANGLE | 3954- | ||
| 114-63-02031 | CYLINDER ASS'Y,ANGLE | 3001-3953 | ||
| 1 | 114-63-55841 | CYLINDER | 3001- | |
| 2 | 114-63-55170 | BUSHING | 3001- | |
| 3 | 04065-06220 | RING,SNAP | 3001- | |
| 4 | 07042-20108 | PLUG | 3001- | |
| 5 | 07020-00900 | FITTING,GREASE | 3001- | |
| 6 | 707-29-90910 | HEAD,CYLINDER | 3001- | |
| 7 | 07177-04025 | BUSHING | 3001- | |
| 8 | 707-51-40210 | PACKING,ROD | 3001- | |
| 9 | 198-63-75190 | SEAL,DUST | 3001- | |
| 10 | 07179-12052 | RING,SNAP | 3001- | |
| 11 | 07000-12085 | O-RING | 3001- | |
| 12 | 07001-02085 | RING,BACK-UP | 3001- | |
| 13 | 07000-12090 | O-RING | 3954- | |
| 13 | 07000-02090 | O-RING | 3001-3953 | |
| 14 | 114-63-12320 | ROD,PISTON | 3001- | |
| 15 | 114-63-55170 | BUSHING | 3001- | |
| 16 | 04065-06220 | RING,SNAP | 3001- | |
| 17 | 07020-00900 | FITTING,GREASE | 3001- | |
| 18 | 707-36-90920 | PISTON | 3001- | |
| 19 | 707-44-90070 | RING,PISTON | 3001- | |
| 20 | 07156-00912 | RING,WEAR | 3001- | |
| 21 | 07165-12729 | NUT,NYLON | 3954- | |
| 21 | 01580-02722 | NUT | 3001-3953 |
