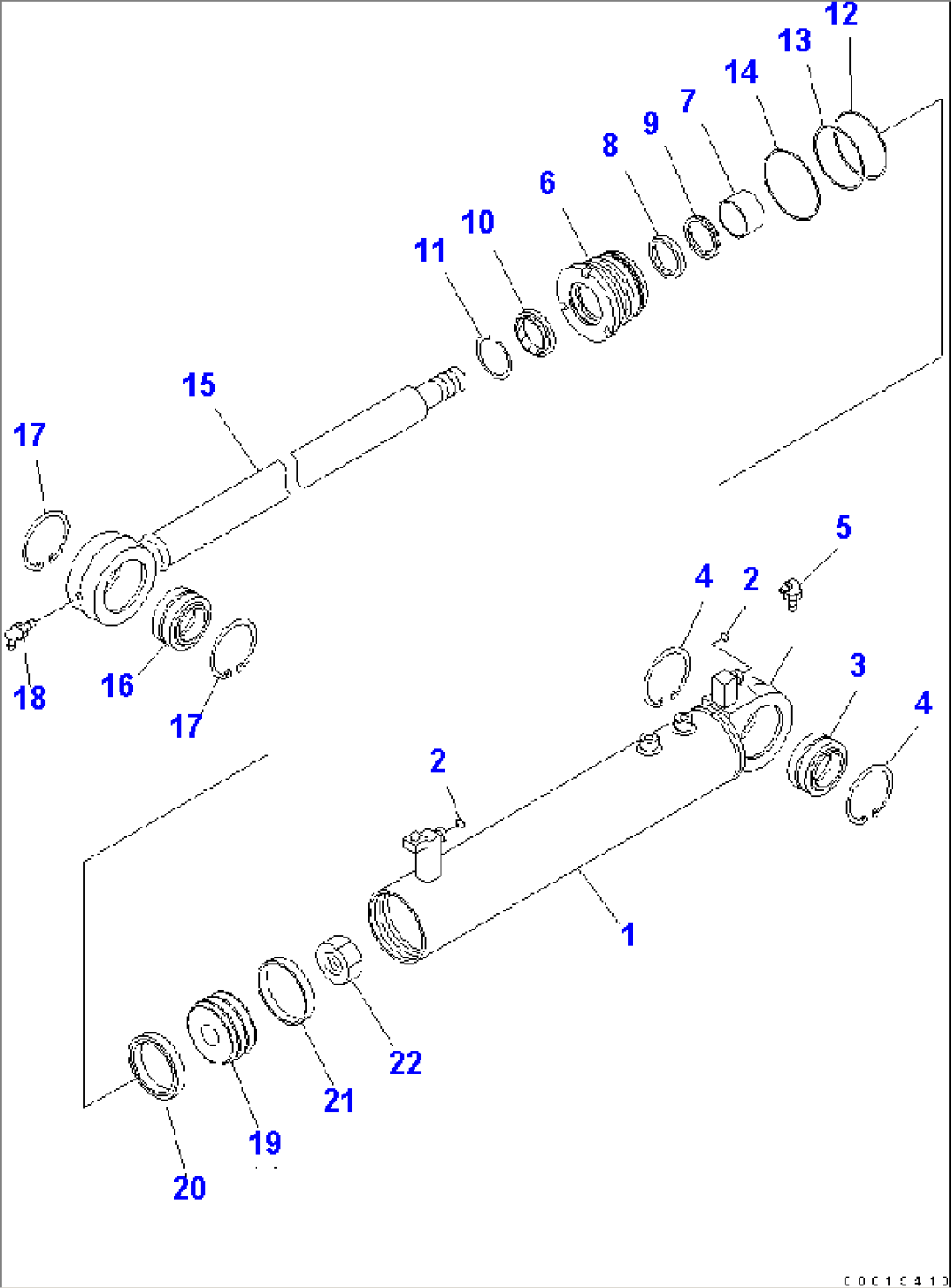

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-0A301 | CYLINDER ASS'Y | 1501- | ||
| 1 | 707-11-85080 | CYLINDER | 1501- | |
| 2 | 02896-11009 | O-RING (KIT) | 1501- | |
| 3 | 707-46-03020 | BUSHING | 1501- | |
| 4 | 04065-07225 | RING,SNAP | 1501- | |
| 5 | 07020-00900 | FITTING,GREASE | 1501- | |
| 6 | 707-29-85140 | HEAD,CYLINDER | 1501- | |
| 7 | 707-52-90220 | BUSHING | 1501- | |
| 8 | 707-51-45030 | PACKING,ROD (KIT) | 1501- | |
| 9 | 707-51-45640 | RING,BUFFER (KIT) | 1501- | |
| 10 | 707-56-45580 | SEAL,DUST (KIT) | 1501- | |
| 11 | 07179-12057 | RING,SNAP | 1501- | |
| 12 | 07000-12080 | O-RING (KIT) | 1501- | |
| 13 | 707-35-52770 | RING,BACK-UP (KIT) | 1501- | |
| 14 | 07000-12085 | O-RING (KIT) | 1501- | |
| 15 | 721-58-45260 | ROD,PISTON | 1501- | |
| 16 | 707-46-03020 | BUSHING | 1501- | |
| 17 | 04065-07225 | RING,SNAP | 1501- | |
| 18 | 07020-00900 | FITTING,GREASE | 1501- | |
| 19 | 707-36-85170 | PISTON | 1501- | |
| 20 | 707-44-85180 | RING,PISTON (KIT) | 1501- | |
| 21 | 707-39-85120 | RING,WEAR (KIT) | 1501- | |
| 22 | 707-67-33010 | NUT | 1501- | |
| 707-99-24930 | SERVICE KIT | 1501- |
