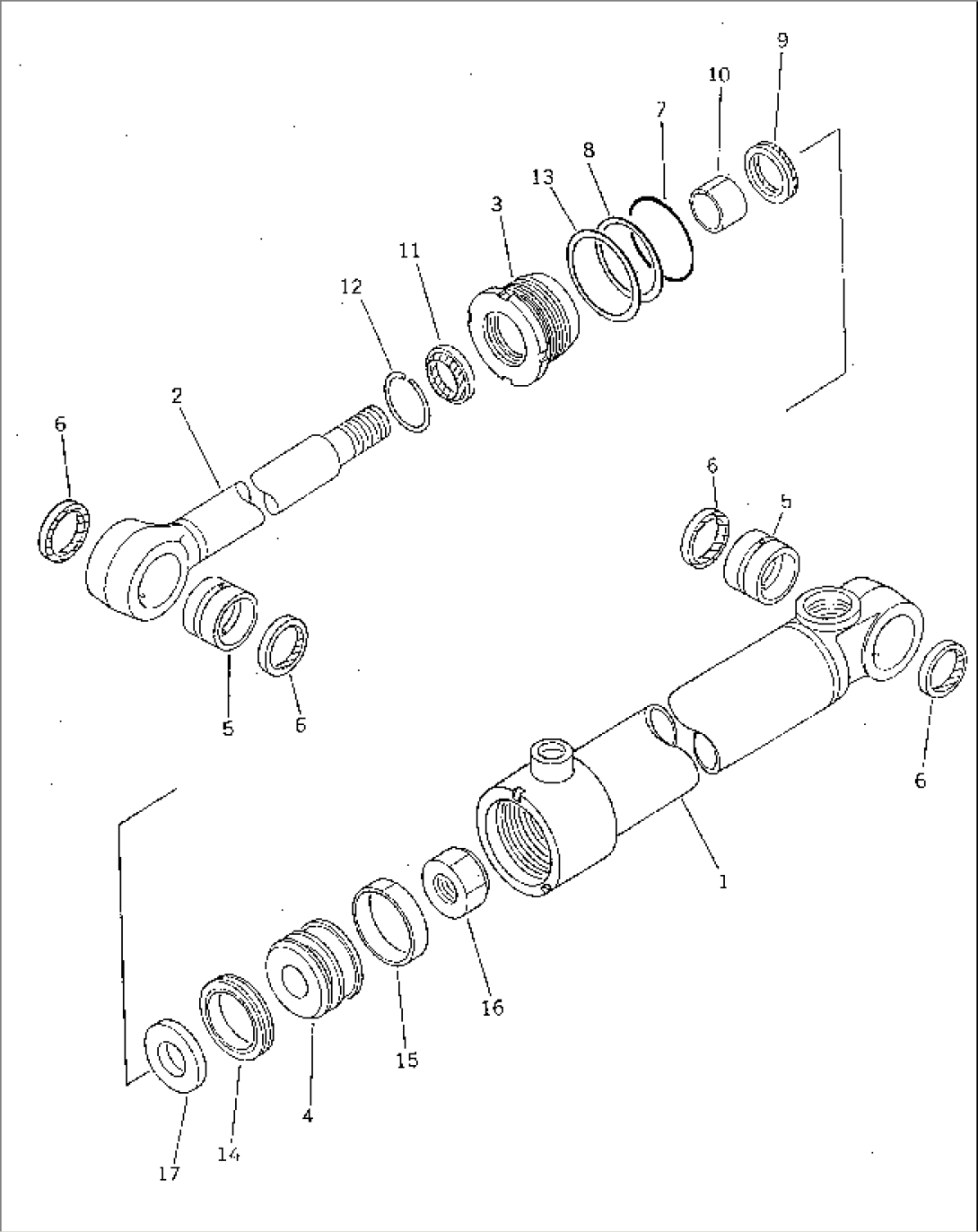

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-50511 | CYLINDER ASS'Y | (007)- | ||
| \0\707-00-50510 | CYLINDER ASS'Y | 10001-(006) | ||
| 1 | 707-11-50141 | CYLINDER | (007)- | |
| \0\707-11-50140 | CYLINDER | 10001-(006) | ||
| 2 | 707-58-30250 | ROD,PISTON | 10001- | |
| 3 | 707-29-50330 | HEAD,CYLINDER | 10001- | |
| 4 | 707-36-50080 | PISTON | 10001- | |
| 5 | 07144-10302 | BUSHING | 10001- | |
| 6 | 07145-00030 | SEAL,DUST | 10001- | |
| 7 | 07000-12060 | O-RING | 10001- | |
| 8 | 07001-02060 | RING,BACK-UP | 10001- | |
| 9 | 707-51-30030 | PACKING,ROD | 10001- | |
| 10 | 07177-03025 | BUSHING | 10001- | |
| 11 | 707-56-30510 | SEAL,DUST | 10001- | |
| 12 | 07179-12042 | RING,SNAP | .- | |
| \1\07179-00049 | RING,SNAP | 10001-. | ||
| 13 | 707-45-50010 | WASHER,LOCK | 10001- | |
| 14 | 707-44-50180 | RING,PISTON | .- | |
| \1\707-44-50080 | RING,PISTON | 10001-. | ||
| 15 | 07155-00515 | RING,WEAR | 10001- | |
| 16 | 07165-12222 | NUT,NYLON | 10001- | |
| 17 | 707-40-50080 | RETAINER | 10001- |
