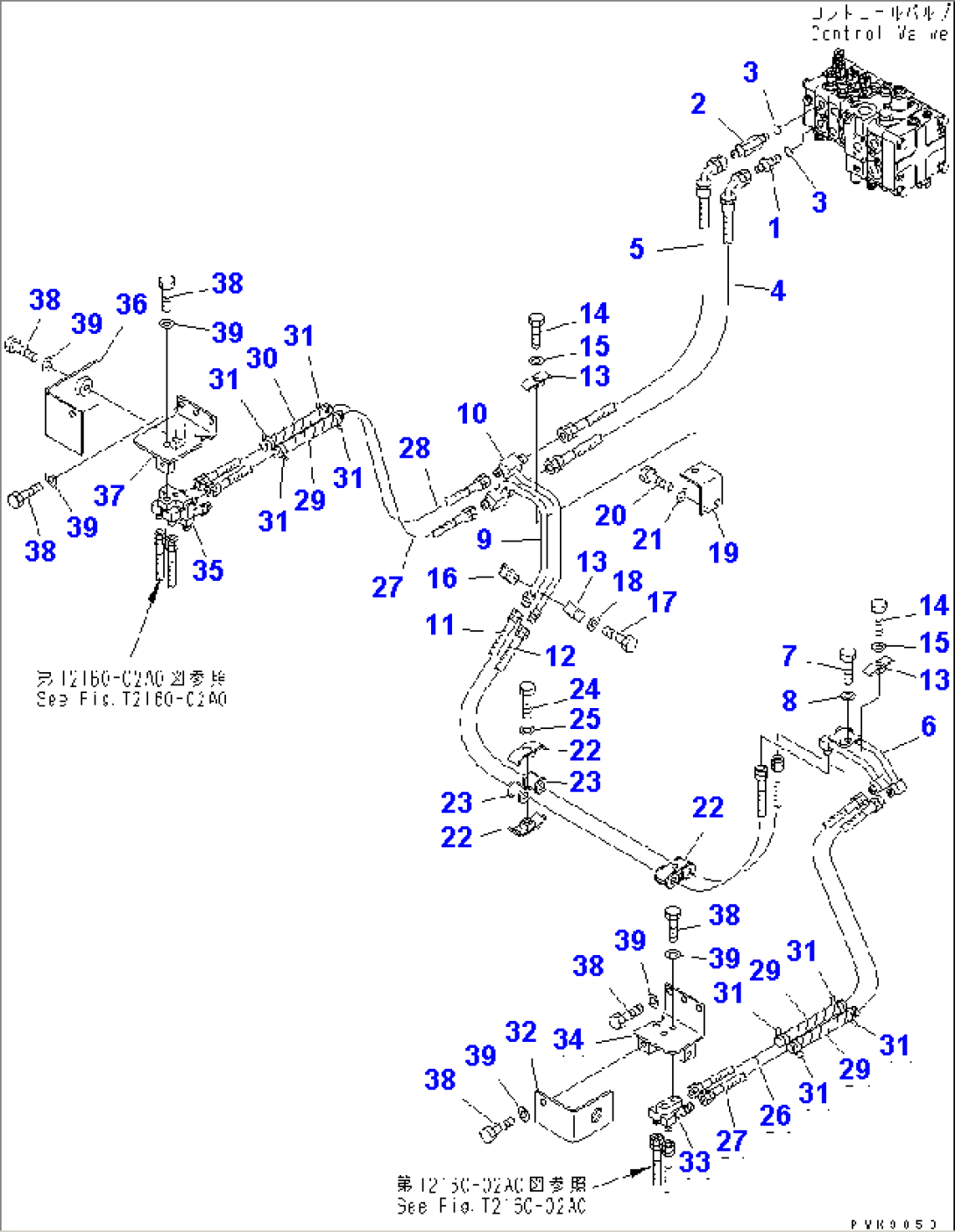

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07230-20422 | UNION | 1001- | |
| 2 | 201-62-52110 | NIPPLE | 1001- | |
| 3 | 07002-12034 | O-RING | 1001- | |
| 4 | 134-62-61712 | HOSE | 1001- | |
| 5 | 134-62-61451 | HOSE | 1001- | |
| 6 | 134-62-61723 | TUBE,L.H. | 1001- | |
| 7 | 01010-81025 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 134-62-61733 | TUBE,R.H. | 1001- | |
| 10 | 134-62-61762 | TUBE,REAR | 1001- | |
| 11 | 07637-00314 | HOSE | 1001- | |
| 12 | 07637-00313 | HOSE | 1001- | |
| 13 | 134-62-61850 | BRACKET | 1001- | |
| 14 | 01010-81240 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 134-62-61840 | BRACKET | 1001- | |
| 17 | 01010-81255 | BOLT | 1001- | |
| 18 | 01643-31232 | WASHER | 1001- | |
| 19 | 134-62-61831 | BRACKET | 1001- | |
| 20 | 01010-81240 | BOLT | 1001- | |
| 21 | 01643-31232 | WASHER | 1001- | |
| 22 | 07094-30315 | CLAMP | 1001- | |
| 23 | 07095-00317 | CUSHION | 1001- | |
| 24 | 01010-81265 | BOLT | 1001- | |
| 25 | 01643-31232 | WASHER | 1001- | |
| 26 | 07637-003A6 | HOSE | 1001- | |
| 27 | 07637-00307 | HOSE¤ 700MM | 1001- | |
| 28 | 07637-003A7 | HOSE | 1001- | |
| 29 | 08210-01803 | SPIRAL TUBE | 1001- | |
| 30 | 08210-01806 | SPIRAL TUBE | 1001- | |
| 31 | 08034-20519 | BAND | 1001- | |
| 32 | 134-62-63341 | COVER,L.H. | 1001- | |
| 33 | 134-62-63321 | TUBE | 1001- | |
| 34 | 134-62-63361 | BRACKET,L.H. | 1001- | |
| 35 | 134-62-63331 | TUBE | 1001- | |
| 36 | 134-62-63351 | COVER,R.H. | 1001- | |
| 37 | 134-62-63371 | BRACKET,R.H. | 1001- | |
| 38 | 01010-81225 | BOLT | 1001- | |
| 39 | 01643-31232 | WASHER | 1001- |
