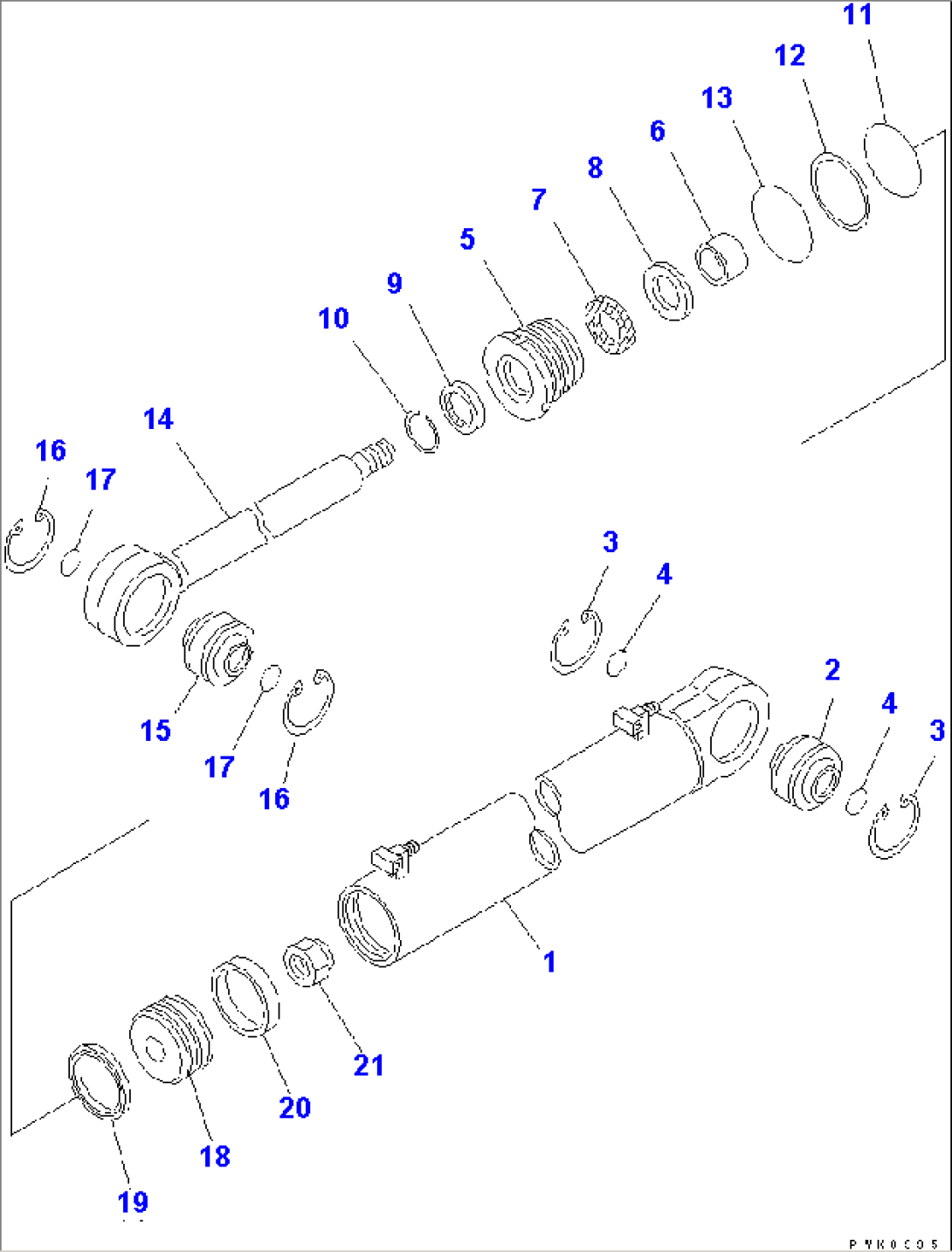

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-63-01071 | CYLINDER ASS'Y,ANGLE | 1244- | ||
| 134-63-01070 | CYLINDER ASS'Y,ANGLE | 1001-1243 | ||
| 1 | 134-63-55140 | CYLINDER | 1001- | |
| 2 | 707-46-04050 | BUSHING | 1001- | |
| 3 | 04065-01030 | RING,SNAP | 1001- | |
| 4 | 07000-13045 | O-RING (KIT) | 1001- | |
| 5 | 707-29-10800 | HEAD,CYLINDER | 1001- | |
| 6 | 707-52-90350 | BUSHING | 1001- | |
| 7 | 707-51-60030 | PACKING,ROD (KIT) | 1001- | |
| 8 | 707-51-60640 | RING,BUFFER (KIT) | 1244- | |
| 8 | 707-51-60630 | RING,BUFFER (KIT) | 1001-1243 | |
| 9 | 707-56-60540 | SEAL,DUST (KIT) | 1244- | |
| 9 | 141-63-93270 | SEAL,DUST (KIT) | 1001-1243 | |
| 10 | 07179-12074 | RING,SNAP | 1001- | |
| 11 | 07000-12095 | O-RING (KIT) | 1001- | |
| 12 | 07001-02095 | RING,BACK-UP (KIT) | 1001- | |
| 13 | 07000-12100 | O-RING (KIT) | 1001- | |
| 14 | 134-63-55120 | ROD,PISTON | 1001- | |
| 15 | 07137-04507 | BUSHING | 1001- | |
| 16 | 04065-01030 | RING,SNAP | 1001- | |
| 17 | 07000-13045 | O-RING (KIT) | 1001- | |
| 18 | 707-36-10350 | PISTON | 1001- | |
| 19 | 707-44-10180 | RING,PISTON (KIT) | 1001- | |
| 20 | 07156-01012 | RING,WEAR (KIT) | 1001- | |
| 21 | 707-67-45010 | NUT | 1244- | |
| 21 | 07165-14547 | NUT | 1001-1243 | |
| K | 707-99-35170 | SERVICE KIT | 1244- | |
| K | 707-99-35160 | SERVICE KIT | 1001-1243 |
