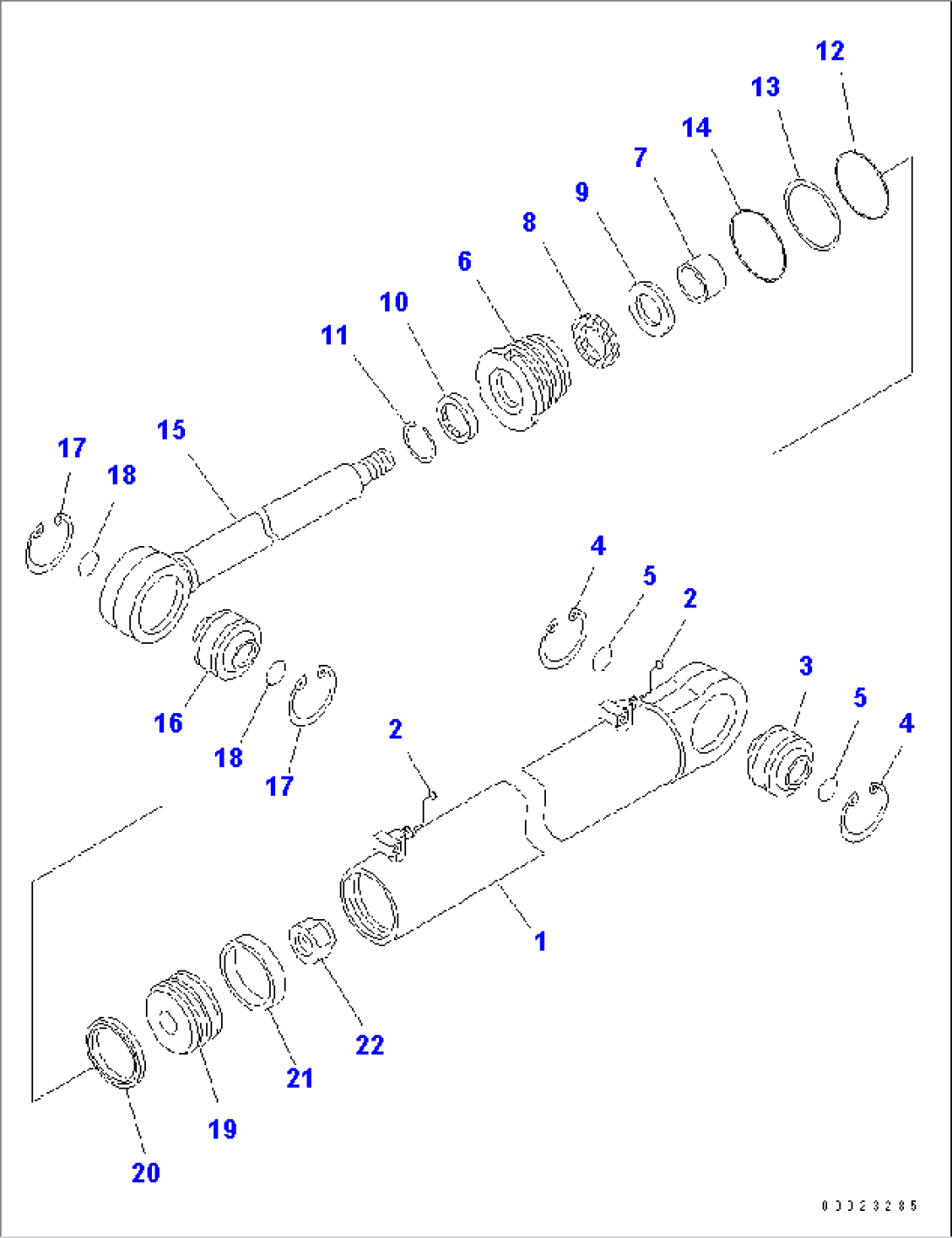

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-0C691 | CYLINDER ASS'Y,ANGLE | B45001-B47361 | ||
| 1 | 721-11-11600 | CYLINDER | B45001-B47361 | |
| 2 | 02896-11009 | O-RING (KIT) | B45001-B47361 | |
| 3 | 707-46-04050 | BUSHING | B45001-B47361 | |
| 4 | 04065-01030 | RING,SNAP | B45001-B47361 | |
| 5 | 07000-13045 | O-RING (KIT) | B45001-B47361 | |
| 6 | 707-29-11450 | HEAD,CYLINDER | B45001-B47361 | |
| 7 | 707-52-90400 | BUSHING | B45001-B47361 | |
| 8 | 707-51-65030 | PACKING,ROD (KIT) | B45001-B47361 | |
| 9 | 707-51-65640 | RING,BUFFER (KIT) | B45001-B47361 | |
| 10 | 707-56-65540 | SEAL,DUST (KIT) | B45001-B47361 | |
| 11 | 07179-12079 | RING,SNAP | B45001-B47361 | |
| 12 | 07000-12105 | O-RING (KIT) | B45001-B47361 | |
| 13 | 07146-02106 | RING,BACK-UP (KIT) | B45001-B47361 | |
| 14 | 07000-12110 | O-RING (KIT) | B45001-B47361 | |
| 15 | 707-58-65970 | ROD,PISTON | B45001-B47361 | |
| 16 | 07137-04507 | BUSHING | B45001-B47361 | |
| 17 | 04065-01030 | RING,SNAP | B45001-B47361 | |
| 18 | 07000-13045 | O-RING (KIT) | B45001-B47361 | |
| 19 | 707-36-11050 | PISTON | B45001-B47361 | |
| 20 | 707-44-11180 | RING,PISTON (KIT) | B45001-B47361 | |
| 21 | 07156-01112 | RING,WEAR (KIT) | B45001-B47361 | |
| 22 | 707-67-45010 | NUT | B45001-B47361 | |
| K | 707-99-36550 | SERVICE KIT | B45001-B47361 |
