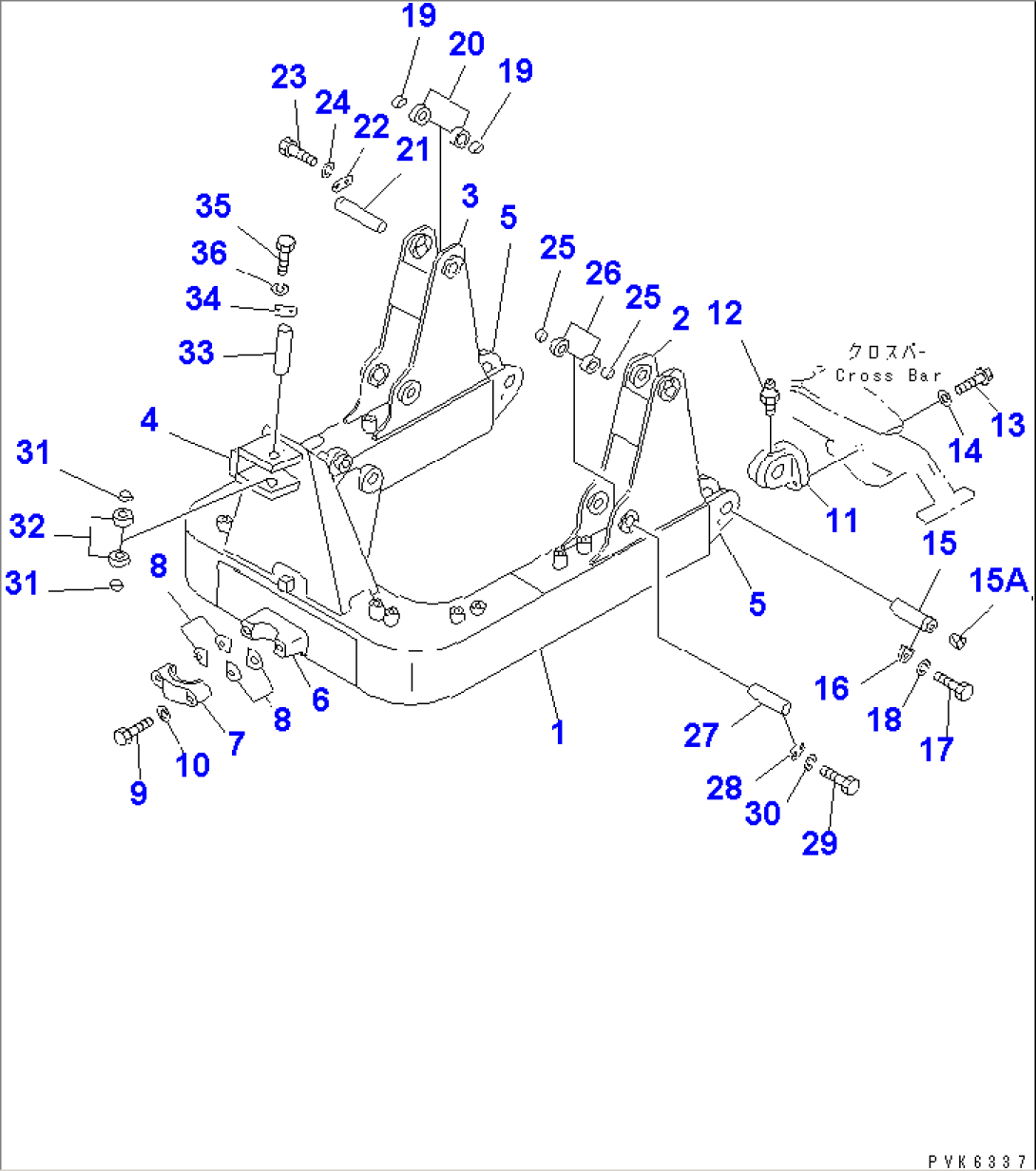

| Item | Part No. | Part Name | Qty | Serial No. |
| 114-72-00110 | FRAME ASS'Y | 42001- | ||
| 1 | \6\ | FRAME | 42001- | |
| 2 | 114-72-43230 | BRACKET,L.H. (WELDED) | 42001- | |
| 3 | 114-72-43240 | BRACKET,R.H. (WELDED) | 42001- | |
| 4 | 114-72-43220 | BRACKET (WELDED) | 42001- | |
| 5 | 114-72-31250 | BRACKET (WELDED) | 42001- | |
| 6 | \6\ | BEARING,(WELDED) (KIT) | 42001- | |
| 7 | 114-72-31270 | CAP (KIT) | 42001- | |
| 8 | 114-72-31281 | SHIM, 0.5MM (KIT) | 42001- | |
| 8 | 114-72-31290 | SHIM, 1.0MM (KIT) | 42001- | |
| 9 | 01010-52490 | BOLT (KIT) | 42001- | |
| 10 | 01643-32460 | WASHER (KIT) | 42001- | |
| 11 | 114-72-31260 | BRACKET | 42001- | |
| 12 | 07020-00000 | FITTING,GREASE | 42001- | |
| 13 | 01010-52470 | BOLT | 42001- | |
| 14 | 01643-32460 | WASHER | 42001- | |
| 15 | 114-72-21820 | PIN | 42001- | |
| 15A | 07049-01012 | PLUG | 42001- | |
| 16 | 114-72-21980 | LOCK | 42001- | |
| 17 | 01010-51435 | BOLT | 42001- | |
| 18 | 01602-21442 | WASHER,SPRING | 42001- | |
| 19 | 114-72-21950 | COLLAR | 42001- | |
| 20 | 114-72-23450 | BUSHING | 42001- | |
| 21 | 114-72-43330 | PIN | 42001- | |
| 22 | 113-70-21280 | LOCK | 42001- | |
| 23 | 01010-51025 | BOLT | 42001- | |
| 24 | 01602-21030 | WASHER,SPRING | 42001- | |
| 25 | 114-72-21950 | COLLAR | 42001- | |
| 26 | 114-72-23450 | BUSHING | 42001- | |
| 27 | 114-72-43330 | PIN | 42001- | |
| 28 | 113-70-21280 | LOCK | 42001- | |
| 29 | 01010-51025 | BOLT | 42001- | |
| 30 | 01602-21030 | WASHER,SPRING | 42001- | |
| 31 | 114-72-21950 | COLLAR | 42001- | |
| 32 | 114-72-23450 | BUSHING | 42001- | |
| 33 | 114-72-43330 | PIN | 42001- | |
| 34 | 113-70-21280 | LOCK | 42001- | |
| 35 | 01010-51025 | BOLT | 42001- | |
| 36 | 01602-21030 | WASHER,SPRING | 42001- | |
| SERVICE KIT | ||||
| 6 | 114-72-00060 | PIVOT ASS'Y | 42001- | |
| 6 | \6\ | BEARING | 42001- | |
| 7 | 114-72-31270 | CAP | 42001- | |
| 8 | 114-72-31281 | SHIM, 0.5MM | 42001- | |
| 8 | 114-72-31290 | SHIM, 1.0MM | 42001- | |
| 9 | 01010-52490 | BOLT | 42001- | |
| 10 | 01643-32460 | WASHER | 42001- |
