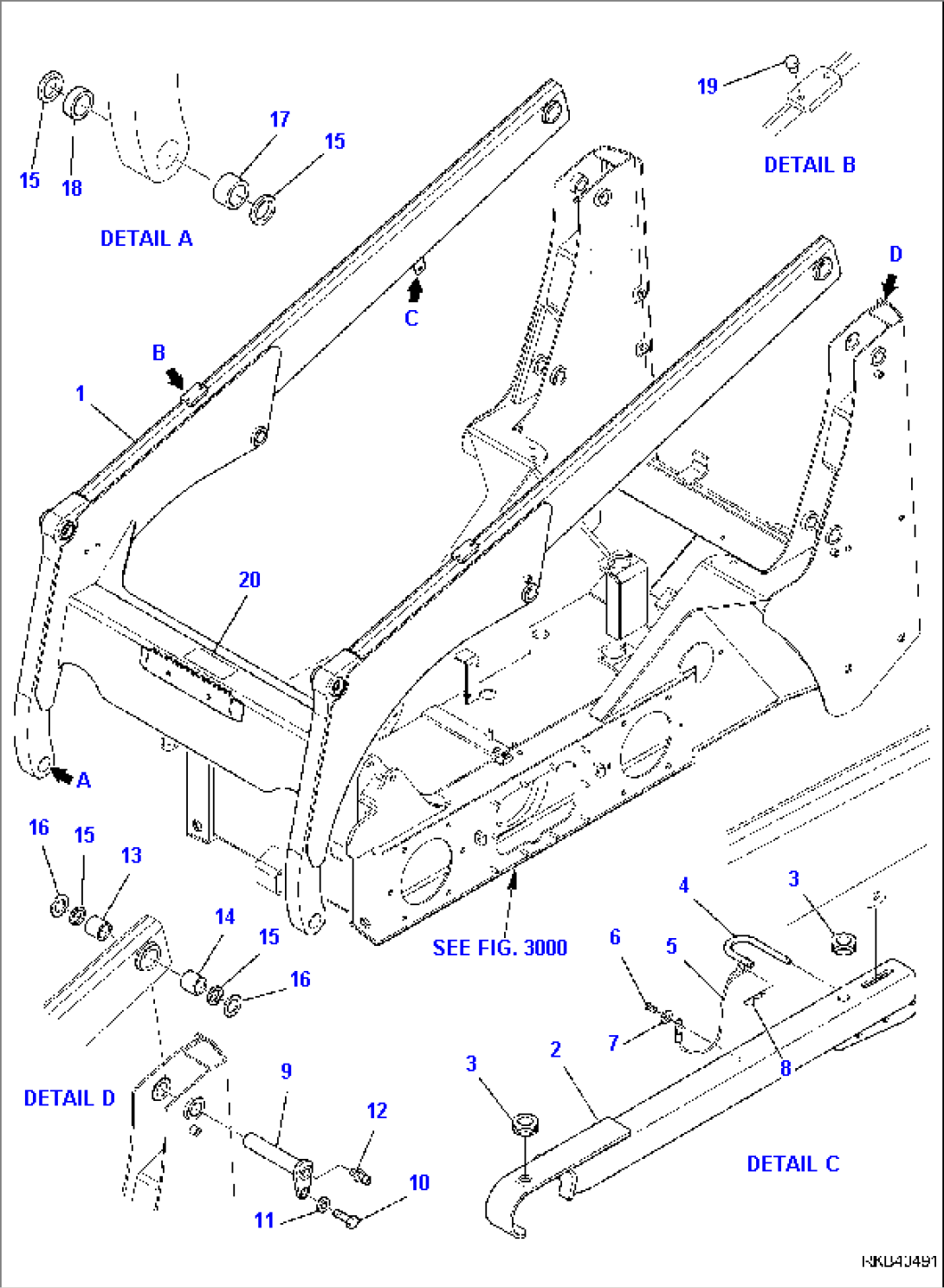

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 37D-70-11112 | ARM, ASSEMBLY | F00248-F00267F00269-F00317F00001-F00246 | |
| 1 | 37D-70-11113 | ARM, ASSEMBLY | F00268-F00268F00318-F00247-F00247 | |
| 2 | 37D-70-11312 | PUSH-ROD | F00001- | |
| 3 | 42N-06-12740 | GROMMET | F00001- | |
| 4 | 37A-70-11270 | PIN | F00001- | |
| 5 | 42N-43-12940 | CABLE | F00001- | |
| 6 | 01010-80610 | BOLT | F00001- | |
| 7 | 01643-10623 | WASHER | F00001- | |
| 8 | 21D-09-85520 | PIN, COTTER | F00001- | |
| 9 | 37D-70-11210 | PIN | F00001- | |
| 10 | 01010-81020 | BOLT | F00001- | |
| 11 | 37A-09-4A013 | WASHER | F00001- | |
| 12 | 07020-00000 | FITTING, GREASE | F00001- | |
| 13 | 20A-70-R1120 | BUSHING | F00001- | |
| 14 | 20M-70-81350 | BUSHING | F00001- | |
| 15 | 20A-70-12221 | GASKET | F00001- | |
| 16 | 37D-70-11441 | SHIM, 1.000 MM | F00001- | |
| 17 | 20M-70-81350 | BUSHING | F00001- | |
| 18 | 37D-70-11240 | BUSHING | F00001- | |
| 19 | 22K-54-22290 | CAP | F00001- | |
| 20 | 37D-54-11580 | MAT | F00001- | |
| SEE FIG. 3000 |
