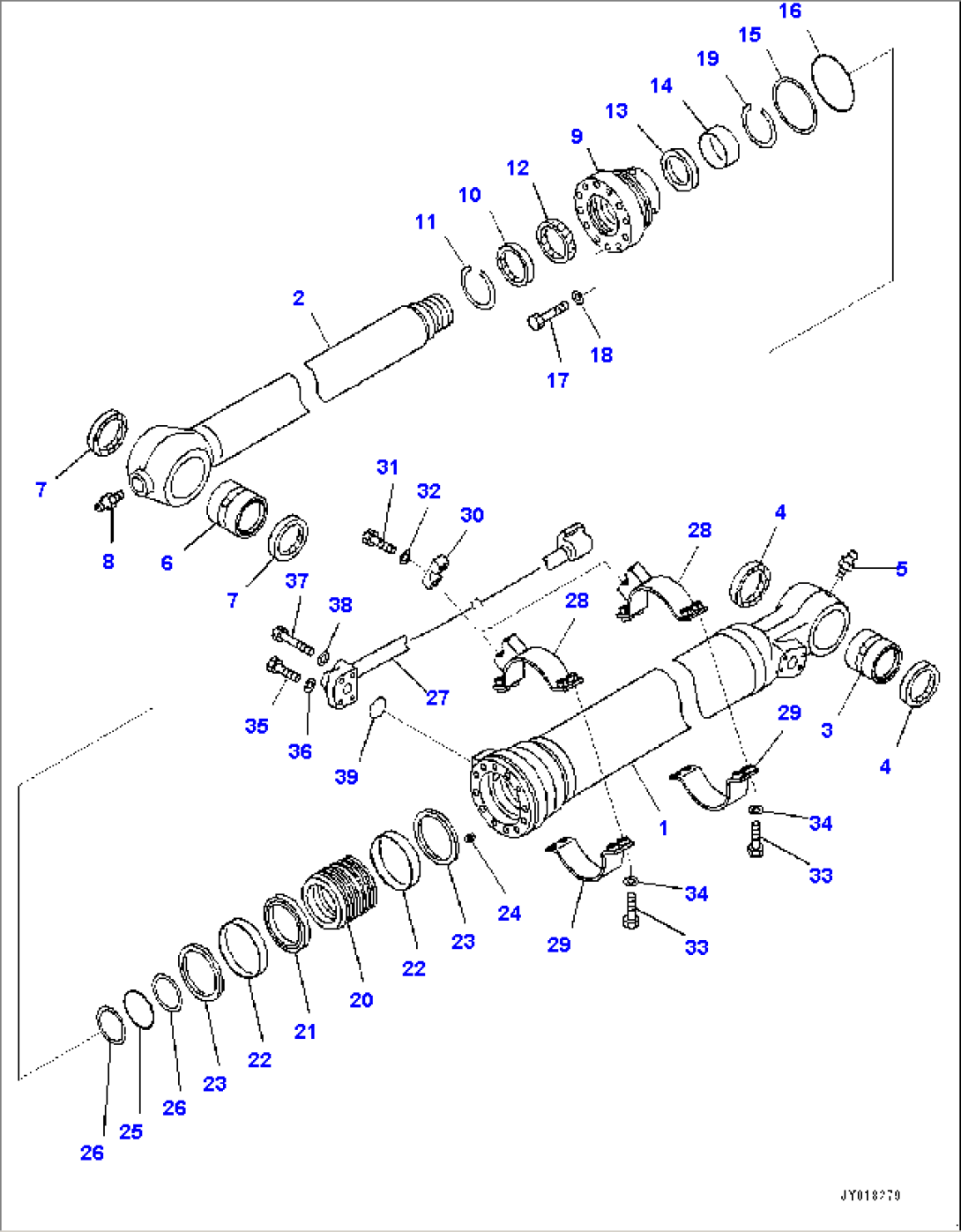

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-H1-X1490 | Cylinder Assembly | | B50001- |
| 707-E1-01490 | Cylinder Assembly | | B50001- |
| 1 | 707-13-11880 | Cylinder | | B50001- |
| 2 | 707-58-80871 | Rod, Piston | | B50001- |
| 3 | 707-76-70110 | Bushing | | B50001- |
| 4 | 07145-00070 | Seal, Dust, (Kit : K22) | | B50001- |
| 5 | 07020-00000 | Fitting, Grease | | B50001- |
| 6 | 707-76-70120 | Bushing | | B50001- |
| 7 | 20Y-70-23220 | Seal, Dust, (Kit : K22) | | B50001- |
| 8 | 07020-00000 | Fitting, Grease | | B50001- |
| 9 | 707-27-11870 | Head, Cylinder | | B50001- |
| 10 | 707-56-80740 | Seal, Dust, (Kit : K22) | | B50001- |
| 11 | 07179-13094 | Ring, Snap | | B50001- |
| 12 | 707-51-80860 | Packing, Rod, (Kit : K22) | | B50001- |
| 13 | 707-51-80650 | Ring, Buffer, (Kit : K22) | | B50001- |
| 14 | 707-52-90561 | Bushing | | B50001- |
| 15 | 707-35-31060 | Ring, Back-up, (Kit : K22) | | B50001- |
| 16 | 07000-B5105 | O-ring, (Kit : K22) | | B50001- |
| 17 | 707-88-81070 | Bolt | | B50001- |
| 18 | 01643-51645 | Washer | | B50001- |
| 19 | 707-75-80040 | Ring, Snap | | B50001- |
| 20 | 707-36-11880 | Piston | | B50001- |
| 21 | 707-44-11250 | Ring, Piston, (Kit : K22) | | B50001- |
| 22 | 707-39-11530 | Ring, Wear, (Kit : K22) | | B50001- |
| 23 | 707-44-11920 | Ring | | B50001- |
| 24 | 01310-01216 | Screw | | B50001- |
| 25 | 07000-B5070 | O-ring, (Kit : K22) | | B50001- |
| 26 | 707-35-30700 | Ring, Back-up, (Kit : K22) | | B50001- |
| 27 | 707-86-69140 | Tube | | B50001- |
| 28 | 707-88-51140 | Bracket | | B50001- |
| 29 | 707-88-26660 | Band | | B50001- |
| 30 | 707-88-13590 | Clamp | | B50001- |
| 31 | 01010-81040 | Bolt | | B50001- |
| 32 | 01643-31032 | Washer | | B50001- |
| 33 | 07372-21240 | Bolt | | B50001- |
| 34 | 01643-51232 | Washer | | B50001- |
| 35 | 07372-21045 | Bolt | | B50001- |
| 36 | 01643-51032 | Washer | | B50001- |
| 37 | 07372-21060 | Bolt | | B50001- |
| 38 | 01643-51032 | Washer | | B50001- |
| 39 | 07000-B3030 | O-ring, (Kit : K22) | | B50001- |
