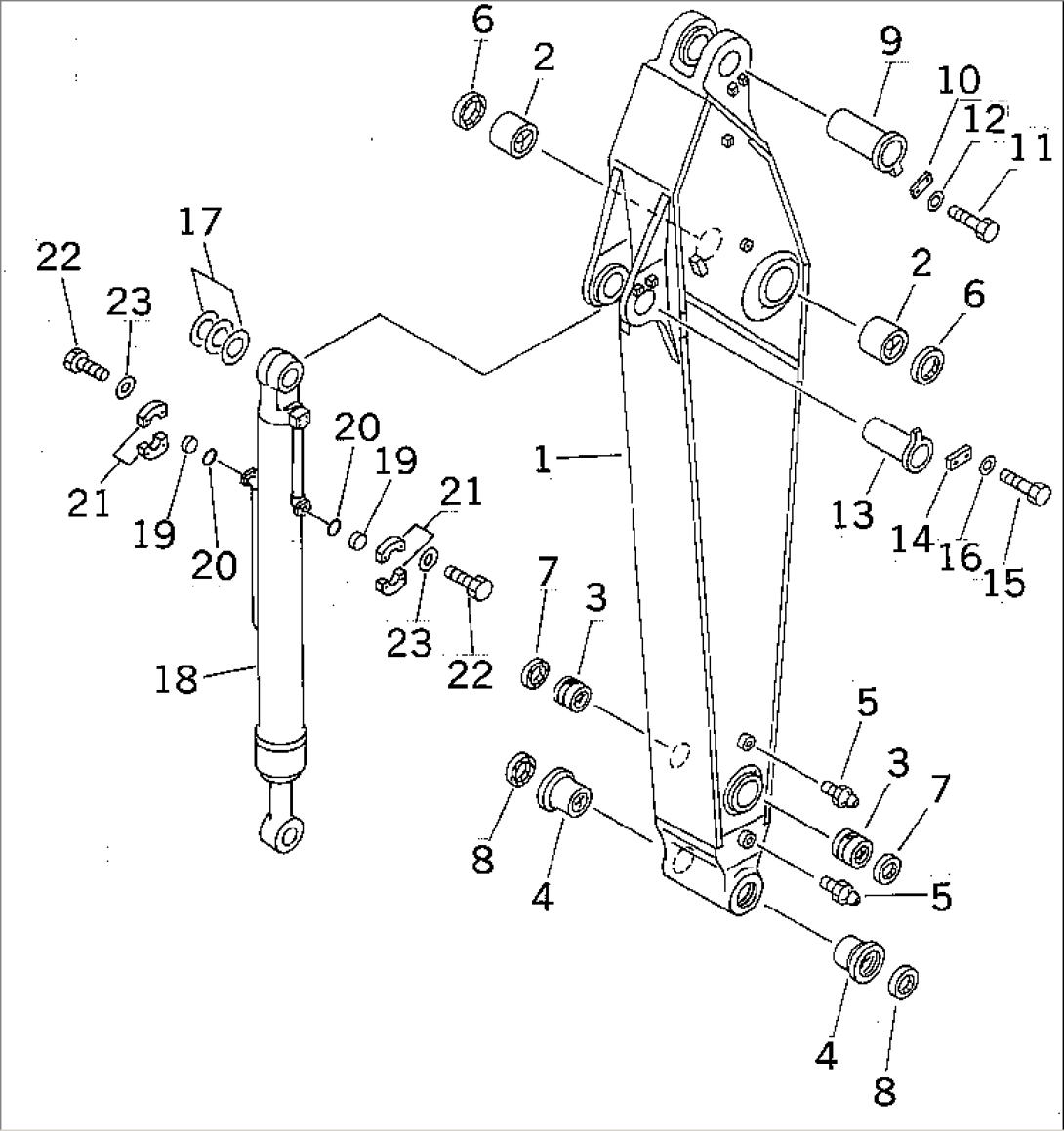

| Item | Part No. | Part Name | Qty | Serial No. |
| 208-944-0201 | SHORT ARM ASS'Y | 32994- | ||
| \0\208-944-0200 | SHORT ARM ASS'Y | 30001-32993 | ||
| 1 | \6\ | ARM | 33026- | |
| 1 | \6\ | ARM | 30001-33025 | |
| 2 | 208-70-61521 | BUSHING | 30001- | |
| 3 | 208-70-13141 | BUSHING | 30001- | |
| 4 | 208-70-72170 | BUSHING | 32994- | |
| 4 | 208-70-32140 | BUSHING | 30001-32993 | |
| 5 | 07020-00000 | FITTING | 30001- | |
| 6 | 07145-00120 | SEAL | 30001- | |
| 7 | 208-70-12231 | SEAL,DUST | 30001- | |
| 8 | 205-70-62160 | SEAL | 30001- | |
| 9 | 208-70-61220 | PIN | 30001- | |
| 10 | 205-70-66580 | PLATE | 30001- | |
| 11 | 01010-81235 | BOLT | 31007- | |
| 11 | 01010-51235 | BOLT | 30001-31006 | |
| 12 | 01643-31232 | WASHER | 30001- | |
| 13 | 208-70-61240 | PIN | 30001- | |
| 14 | 205-70-66580 | PLATE | 30001- | |
| 15 | 01010-81235 | BOLT | 31007- | |
| 15 | 01010-51235 | BOLT | 30001-31006 | |
| 16 | 01643-31232 | WASHER | 30001- | |
| 17 | 207-70-11340 | SPACER, 0.8MM | 30001- | |
| 18 | (\8\208-63-X9040) | CYLINDER GROUP,(SEE FIG.Y1620-41A0A) | 32339- | |
| 18 | (\8\208-63-X2531) | BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0A) | 32001-32338 | |
| 18 | (\8\208-63-X2130) | BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0) | 30001-31999 | |
| 19 | 07378-11000 | HEAD | 30001- | |
| 20 | 07000-13032 | O-RING | 30001- | |
| 21 | 07371-31049 | FLANGE | 30001- | |
| 22 | 07372-21035 | BOLT | 30001- | |
| 23 | 01643-51032 | WASHER | 30001- |
