| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07073-41425 | HOSE | 11002- | |
| 2 | 07000-B3048 | O-RING | 11002- | |
| 3 | 07371-51470 | FLANGE | 11002- | |
| 4 | 01010-81455 | BOLT | 11002- | |
| 5 | 01643-31445 | WASHER | 11002- | |
| 6 | 07221-20422 | NUT | 11002- | |
| 7 | 07222-00414 | PLUG | 11002- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc1800 6 m1 s/n 10001 up
- Work equipment
- Arm (3.9m) (bucket cylinder hose) (backhoe) (with auto greasing) (for lincoln)(#11002 )
Поиск по каталогу

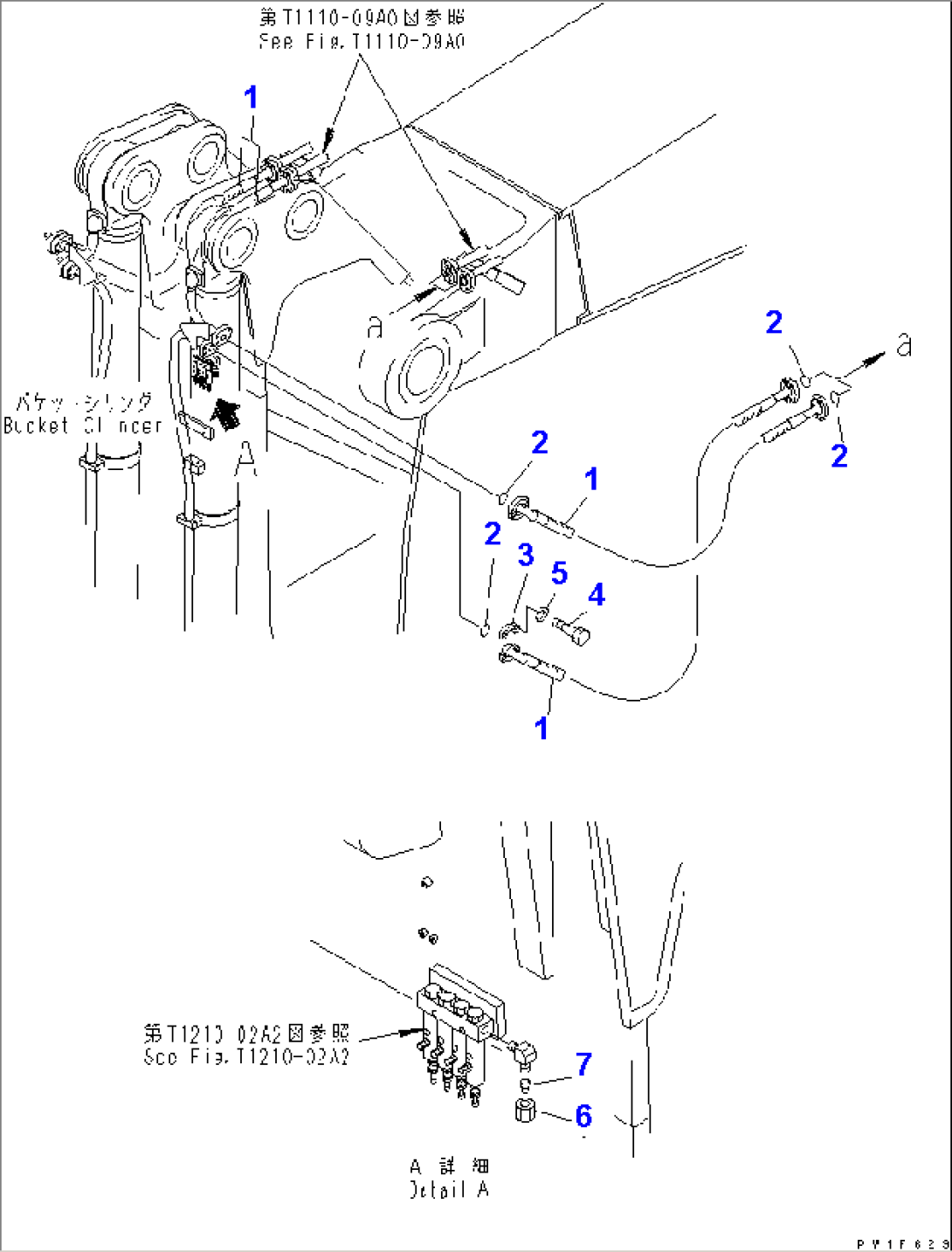

ARM (3.9M) (BUCKET CYLINDER HOSE) (BACKHOE) (WITH AUTO GREASING) (FOR LINCOLN)(#11002-)
