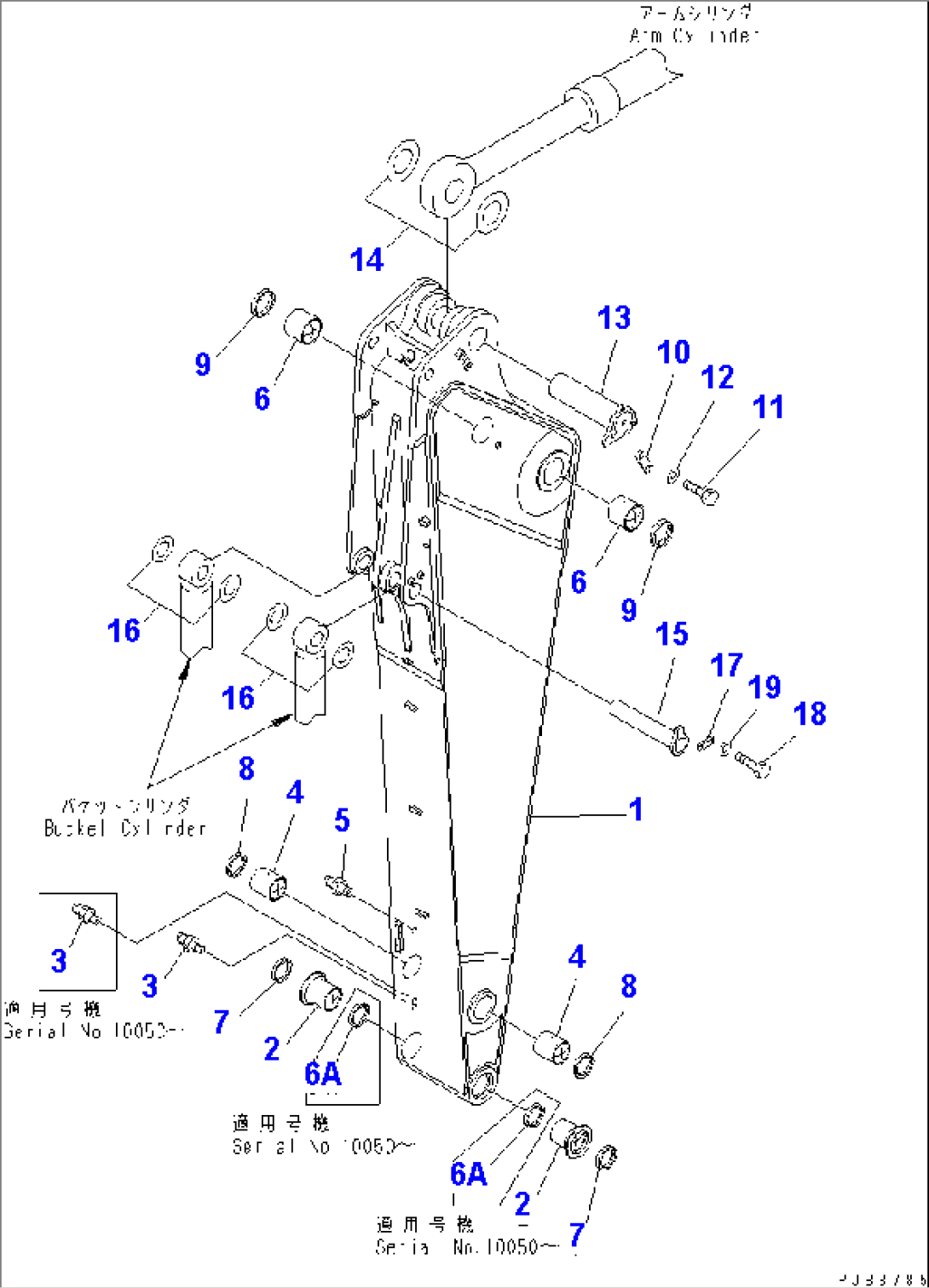

| Item | Part No. | Part Name | Qty | Serial No. |
| 21N-947-0012 | ARM ASS'Y | 10233- | ||
| 21N-947-0011 | ARM ASS'Y | 10050-10232 | ||
| \3\21N-947-0010 | ARM ASS'Y | 10001-10049 | ||
| 1 | \6\ | ARM | 10233- | |
| 1 | \6\ | ARM | 10050-10232 | |
| 1 | \6\ | ARM | 10001-10049 | |
| 2 | 21N-70-32150 | BUSHING | 10050- | |
| 2 | \3\21N-70-12152 | BUSHING | 10001-10049 | |
| 3 | 07020-00000 | FITTING | 10050- | |
| 3 | \3\07020-00000 | FITTING | 10001-10049 | |
| 4 | 21N-70-12170 | BUSHING | 10001- | |
| 5 | 07020-00000 | FITTING | 10001- | |
| 6 | 21N-70-11181 | BUSHING | 10001- | |
| 6A | 209-72-11261 | SEAL | 10050- | |
| 7 | 21N-70-12160 | SEAL | 10001- | |
| 8 | 209-72-11261 | SEAL | 10001- | |
| 9 | 209-72-11311 | SEAL | 10001- | |
| 10 | 21N-70-11210 | PLATE | 10001- | |
| 11 | 01010-82455 | BOLT | 10001- | |
| 12 | 01643-32460 | WASHER | 10001- | |
| 13 | 21N-70-31170 | PIN | 10001- | |
| 14 | 21N-72-11210 | SHIM, 1.0MM | 10001- | |
| 15 | 21N-70-32140 | PIN | 10001- | |
| 16 | 207-70-11340 | SPACER, 0.8MM | 10001- | |
| 17 | 21N-70-11230 | PLATE | 10001- | |
| 18 | 01010-81640 | BOLT | 10001- | |
| 19 | 01643-31645 | WASHER | 10001- |
