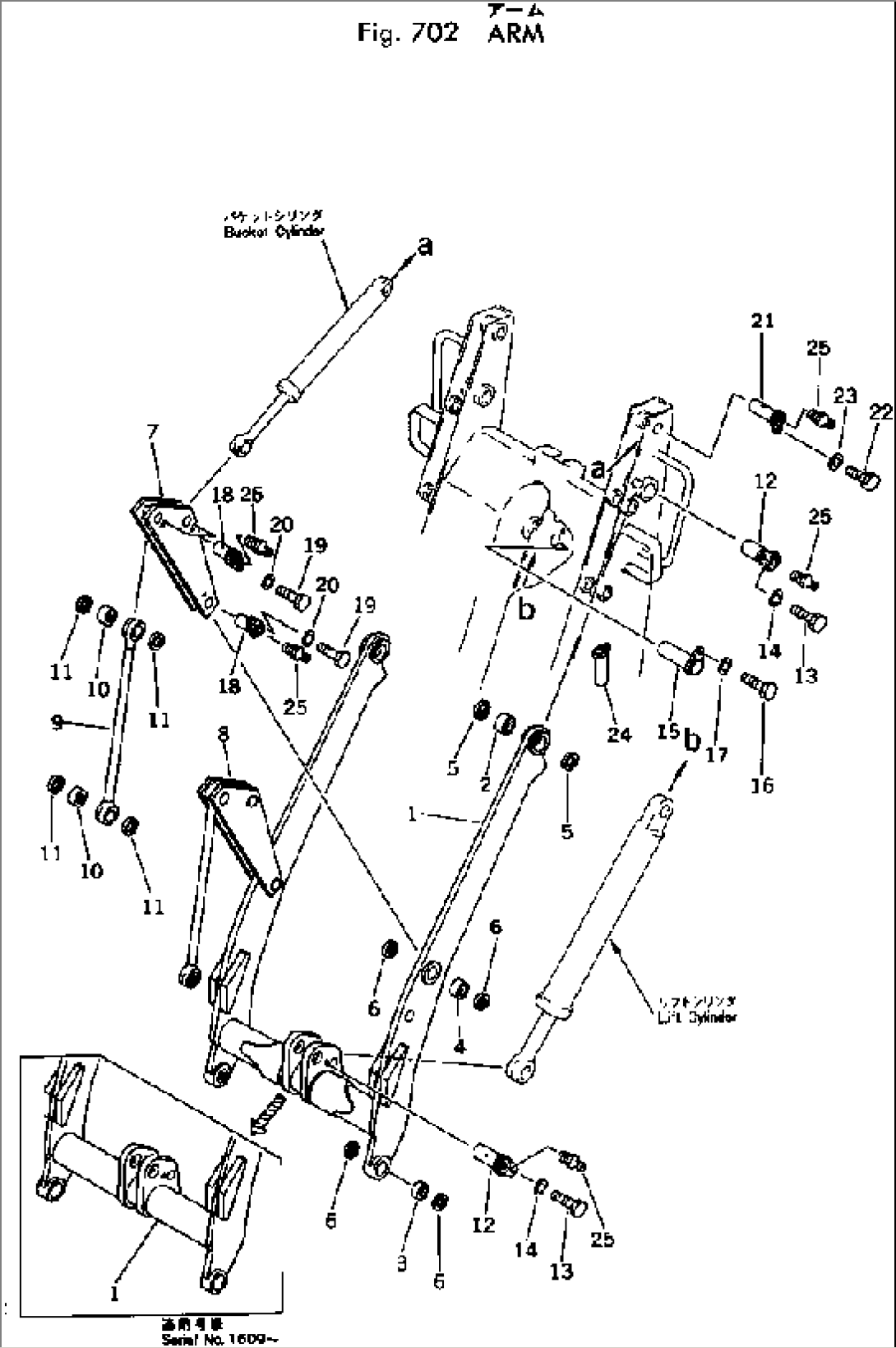

| Item | Part No. | Part Name | Qty | Serial No. |
| FF7810-70102 | ARM ASS'Y | 1609- | ||
| FF7810-70100 | ARM ASS'Y | 1001-1608 | ||
| 1 | \6\ | ARM | 1609- | |
| \3\FF7810-70111 | ARM | 1001-1608 | ||
| (FF7810-70112{FF7810-80121)} | ||||
| 2 | 07143-10405 | BUSHING | 1001- | |
| 3 | 07143-10303 | BUSHING | 1001- | |
| 4 | 07143-10302 | BUSHING | 1001- | |
| 5 | 07145-00045 | SEAL | 1001- | |
| 6 | 07145-00030 | SEAL | 1001- | |
| 7 | FF7810-70120 | LEVER,L.H. | 1001- | |
| 8 | FF7810-70130 | LEVER,R.H. | 1001- | |
| FF7810-70200 | ROD ASS'Y | 1001- | ||
| 9 | \6\ | ROD | 1001- | |
| 10 | 07143-10302 | BUSHING | 1001- | |
| 11 | 07145-00030 | SEAL | 1001- | |
| 12 | FF7810-70310 | PIN | 1001- | |
| 13 | 01010-51220 | BOLT | 1001- | |
| 14 | 01602-21236 | WASHER,SPRING | 1001- | |
| 15 | FF7810-70320 | PIN | 1001- | |
| 16 | 01010-51220 | BOLT | 1001- | |
| 17 | 01602-21236 | WASHER,SPRING | 1001- | |
| 18 | FF7820-70310 | PIN | 1001- | |
| 19 | 01010-51020 | BOLT | 1001- | |
| 20 | 01602-21030 | WASHER,SPRING | 1001- | |
| 21 | FF7820-70320 | PIN | 1001- | |
| 22 | 01010-51020 | BOLT | 1001- | |
| 23 | 01602-21030 | WASHER,SPRING | 1001- | |
| 24 | FF7810-70340 | PIN | 1001- | |
| 25 | 07020-00000 | FITTING,GREASE | 1001- |
