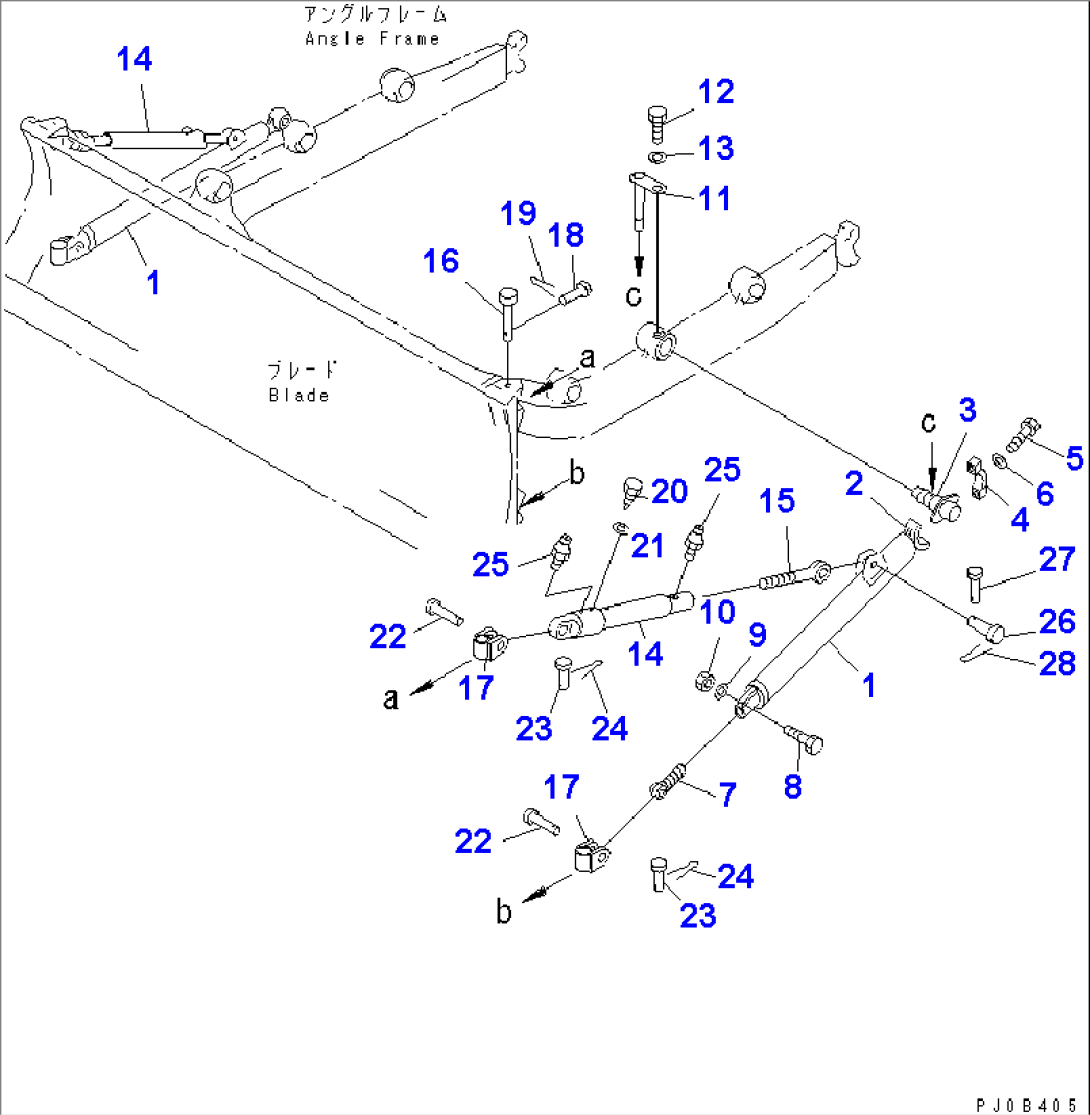

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14U-70-13111 | ARM | 3034- | |
| 2 | 175-70-12150 | BRACKET | 3034- | |
| 150-70-00214 | CAP ASS'Y | 3034- | ||
| 2 | \6\ | BRACKET (WELDED) | 3034- | |
| 3 | 154-70-12162 | SHAFT | 3034- | |
| 4 | 175-70-12160 | CAP | 3034- | |
| 4 | 175-70-12160 | CAP | 3034- | |
| 5 | 01010-82095 | BOLT | 3034- | |
| 5 | 01010-52095 | BOLT | 3034- | |
| 6 | 01643-32060 | WASHER | 3034- | |
| 6 | 01643-32060 | WASHER | 3034- | |
| 7 | 15B-854-1421 | SCREW | 3034- | |
| 8 | 01010-81880 | BOLT | 3034- | |
| 9 | 01643-31845 | WASHER | 3034- | |
| 10 | 01580-11815 | NUT | 3034- | |
| 11 | 154-70-19181 | PIN | 3034- | |
| 12 | 01010-81420 | BOLT | 3034- | |
| 13 | 205-06-62271 | WASHER | 3034- | |
| 14 | 15B-854-1450 | BRACE | 3034- | |
| 15 | 15B-854-1460 | SCREW | 3034- | |
| 16 | 144-854-6150 | PIN | 3034- | |
| 17 | 14W-70-13110 | JOINT | 3034- | |
| 18 | 170-70-12240 | PIN | 3034- | |
| 19 | 04050-14025 | PIN,COTTER | 3034- | |
| 20 | 175-70-12221 | SCREW | 3034- | |
| 21 | 01643-31445 | WASHER | 3034- | |
| 22 | 144-854-1280 | PIN | 3034- | |
| 23 | 144-854-1290 | PIN | 3034- | |
| 24 | 04050-14025 | PIN,COTTER | 3034- | |
| 25 | 07020-00000 | FITTING,GREASE | 3034- | |
| 26 | 150-70-13411 | PIN | 3034- | |
| 27 | 170-70-12240 | PIN | 3034- | |
| 28 | 04050-14025 | PIN,COTTER | 3034- | |
| SERVICE PARTS |
