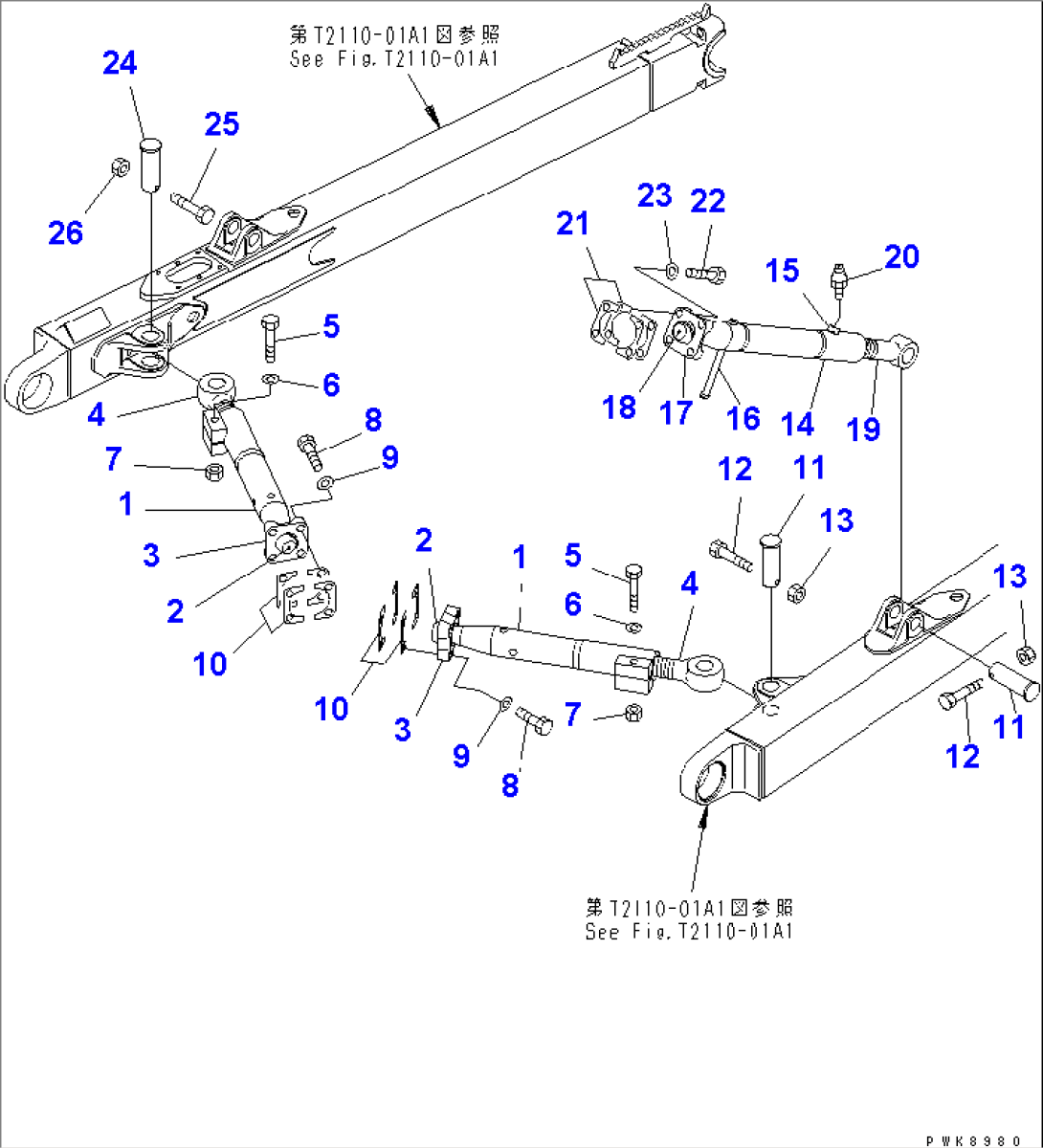

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-71-00010 | BRACE ASS'Y | 1001- | ||
| 1 | 13F-Z27-4110 | BRACE | 1001- | |
| 2 | 144-817-2171 | JOINT (WELDED) | 1001- | |
| 3 | 13F-Z27-4130 | RETAINER | 1001- | |
| 4 | 13F-Z27-4150 | JOINT | 1001- | |
| 5 | 01011-82015 | BOLT | 1001- | |
| 6 | 01643-32060 | WASHER | 1001- | |
| 7 | 01580-12016 | NUT | 1001- | |
| 8 | 01010-82060 | BOLT | 1001- | |
| 9 | 01643-32060 | WASHER | 1001- | |
| 10 | 144-817-2381 | SHIM, 1.0MM | 1001- | |
| 10 | 144-817-2391 | SHIM, 0.5MM | 1001- | |
| 11 | 13F-Z27-5610 | PIN | 1001- | |
| 12 | 01010-81265 | BOLT | 1001- | |
| 13 | 01598-01214 | NUT | 1001- | |
| 134-71-00020 | BRACE ASS'Y | 1001- | ||
| 14 | 13G-71-63310 | BRACE | 1001- | |
| 15 | 01099-03417 | PROTECTOR (WELDED) | 1001- | |
| 16 | 130-817-5590 | ROD | 1001- | |
| 17 | 13G-71-61421 | RETAINER | 1001- | |
| 18 | 144-817-2171 | JOINT (WELDED) | 1001- | |
| 19 | 130-920-3250 | JOINT | 1001- | |
| 20 | 07020-00000 | FITTING,GREASE | 1001- | |
| 21 | 144-817-2381 | SHIM, 1.0MM | 1001- | |
| 21 | 144-817-2391 | SHIM, 0.5MM | 1001- | |
| 22 | 01010-82060 | BOLT | 1001- | |
| 23 | 01643-32060 | WASHER | 1001- | |
| 24 | 13F-Z27-5610 | PIN | 1001- | |
| 25 | 01010-81265 | BOLT | 1001- | |
| 26 | 01598-01214 | NUT | 1001- |
