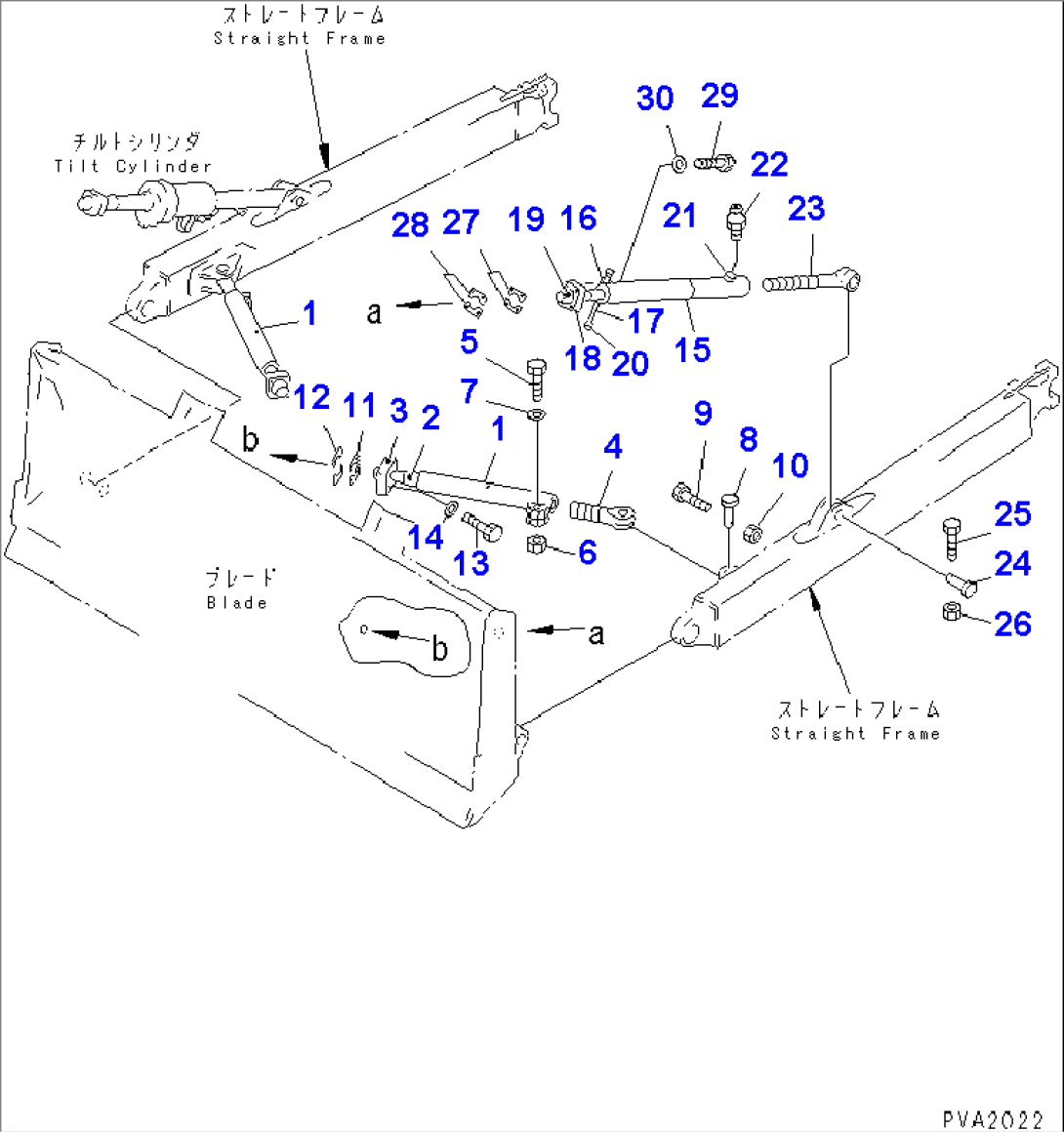

| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-71-00150 | CENTER BRACE ASS'Y | 3034- | ||
| 1 | 14Y-71-13110 | BRACE | 3034- | |
| 2 | 14Y-71-13120 | SHAFT (WELDED) | 3034- | |
| 3 | 144-817-2420 | RETAINER | 3034- | |
| 4 | 144-817-2570 | JOINT | 3034- | |
| 5 | 01011-82025 | BOLT | 3034- | |
| 6 | 01580-12016 | NUT | 3034- | |
| 7 | 01643-32060 | WASHER | 3034- | |
| 8 | 13F-Z27-5610 | PIN | 3034- | |
| 9 | 01010-81265 | BOLT | 3034- | |
| 10 | 01598-01214 | NUT | 3034- | |
| 144-817-0670 | SHIM KIT | 3034- | ||
| 11 | \6\ | SHIM¤ 1.0MM | 3034- | |
| 12 | \6\ | SHIM¤ 0.5MM | 3034- | |
| 13 | 01010-82075 | BOLT | 3034- | |
| 14 | 01643-32060 | WASHER | 3034- | |
| 14Y-71-00160 | TILT BRACE ASS'Y | 3034- | ||
| 15 | 14X-71-13111 | BRACE | 3034- | |
| 16 | 14X-71-11E20 | PLATE (WELDED) | 3034- | |
| 17 | 144-817-2280 | ROD | 3034- | |
| 18 | 144-817-2420 | RETAINER | 3034- | |
| 19 | 14Y-71-13120 | SHAFT (WELDED) | 3034- | |
| 20 | 19N-911-1250 | SPACER (WELDED) | 3034- | |
| 21 | 01099-03417 | PROTECTOR (WELDED) | 3034- | |
| 22 | 07020-00000 | FITTING | 3034- | |
| 23 | 144-920-2122 | JOINT | 3034- | |
| 24 | 13F-Z27-5610 | PIN | 3034- | |
| 25 | 01010-81265 | BOLT | 3034- | |
| 26 | 01598-01214 | NUT | 3034- | |
| 144-817-0670 | SHIM KIT | 3034- | ||
| 27 | \6\ | SHIM¤ 1.0MM | 3034- | |
| 28 | \6\ | SHIM¤ 0.5MM | 3034- | |
| 29 | 01010-82075 | BOLT | 3034- | |
| 30 | 01643-32060 | WASHER | 3034- |
