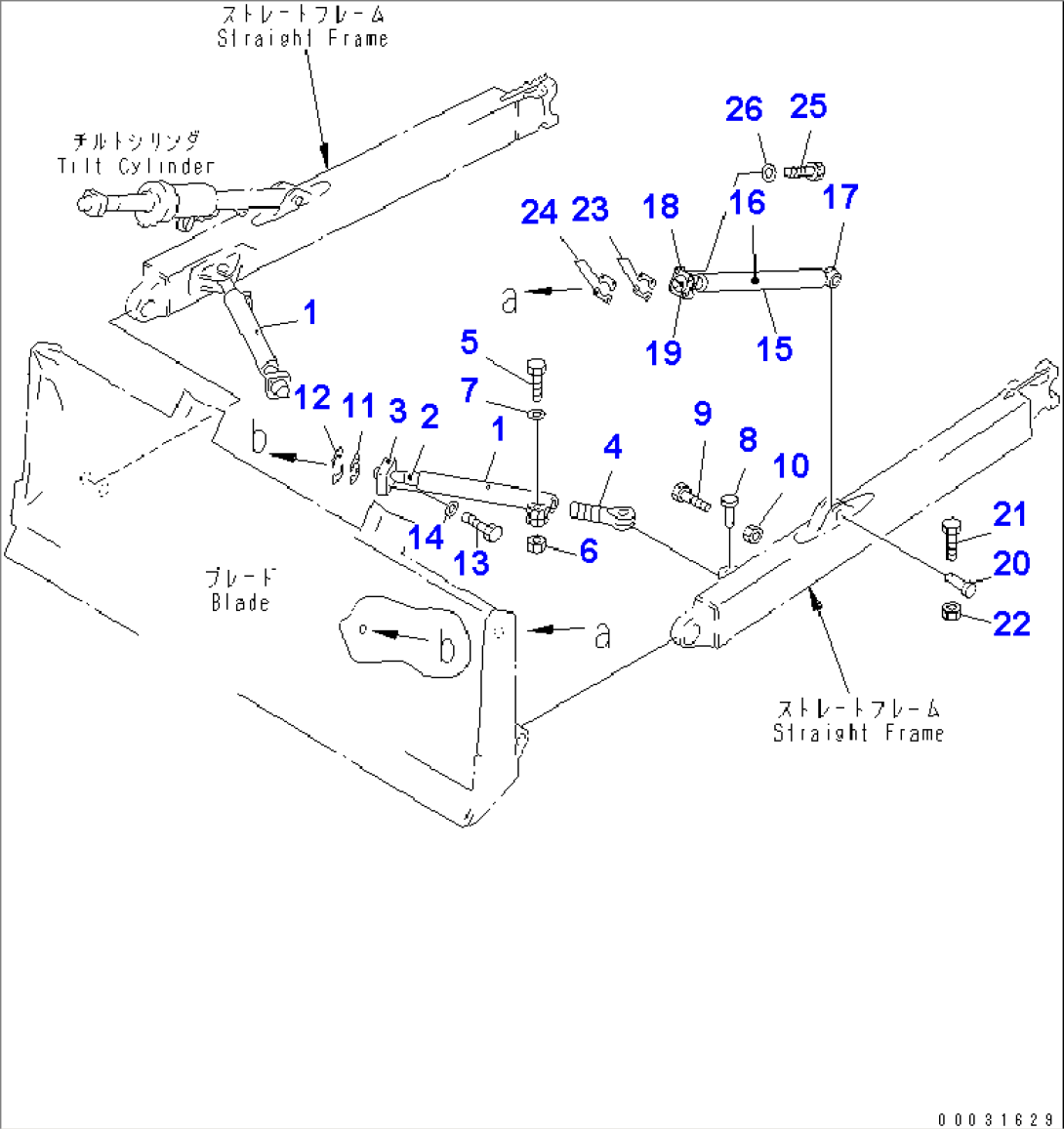

| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-71-00151 | CENTER BRACE ASS'Y | 69001- | ||
| 1 | 14Y-71-13110 | BRACE | 69001- | |
| 2 | 14Y-71-13120 | SHAFT (WELDED) | 69001- | |
| 3 | 144-817-2420 | RETAINER | 69001- | |
| 4 | 144-817-2570 | JOINT | 69001- | |
| 5 | 01011-82025 | BOLT | 69001- | |
| 6 | 01580-12016 | NUT | 69001- | |
| 7 | 01643-32060 | WASHER | 69001- | |
| 8 | 13F-Z27-5610 | PIN | 69001- | |
| 9 | 01010-81265 | BOLT | 69001- | |
| 10 | 01598-01214 | NUT | 69001- | |
| 144-817-0670 | SHIM KIT | 69001- | ||
| 11 | \6\ | SHIM, 1.0MM | 69001- | |
| 12 | \6\ | SHIM, 0.5MM | 69001- | |
| 13 | 01010-82075 | BOLT | 69001- | |
| 14 | 01643-32060 | WASHER | 69001- | |
| 14Y-71-00170 | TILT BRACE ASS'Y | 69001- | ||
| 15 | 14X-71-13210 | BRACE | 69001- | |
| 16 | 14X-71-13A10 | TUBE (WELDED) | 69001- | |
| 17 | 14X-71-13220 | JOINT | 69001- | |
| 18 | 144-817-2420 | RETAINER | 69001- | |
| 19 | 14Y-71-13120 | SHAFT (WELDED) | 69001- | |
| 20 | 13F-Z27-5610 | PIN | 69001- | |
| 21 | 01010-81265 | BOLT | 69001- | |
| 22 | 01598-01214 | NUT | 69001- | |
| 144-817-0670 | SHIM KIT | 69001- | ||
| 23 | \6\ | SHIM, 1.0MM | 69001- | |
| 24 | \6\ | SHIM, 0.5MM | 69001- | |
| 25 | 01010-82075 | BOLT | 69001- | |
| 26 | 01643-32060 | WASHER | 69001- |
