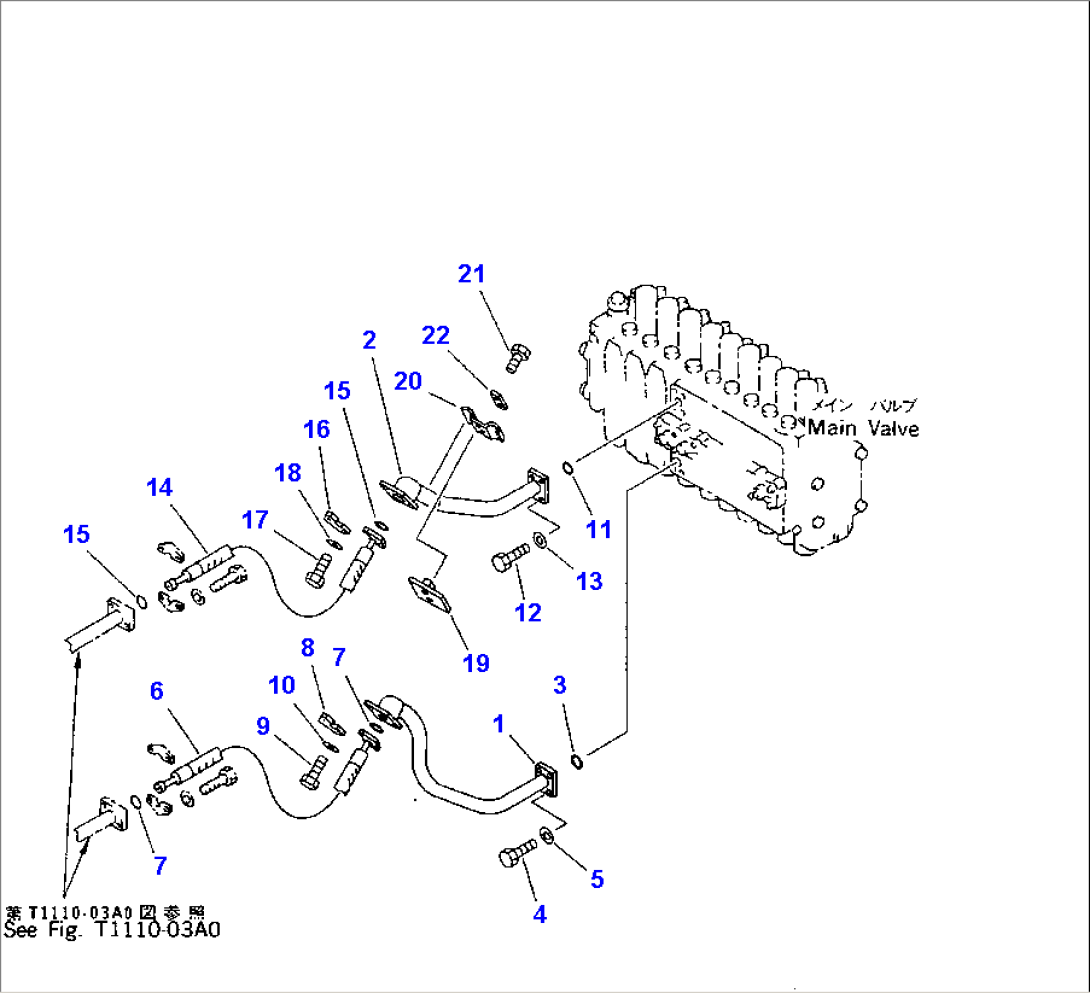

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-K2590 | TUBE | K30001-@ | |
| 2 | 20Y-62-K2610 | TUBE | K30001-@ | |
| 3 | 21T-09-11450 | O-RING | K30001-@ | |
| 4 | 07372-21035 | BOLT | K30001-@ | |
| 5 | 01643-51032 | WASHER | K30001-@ | |
| 6 | 20Y-62-21280 | HOSE | K30001-@ | |
| 7 | 07000-13025 | O-RING | K30001-@ | |
| 8 | 07371-30640 | FLANGE | K30001-@ | |
| 9 | 07372-21035 | BOLT | K30001-@ | |
| 10 | 01643-51032 | WASHER | K30001-@ | |
| 11 | 21T-09-11450 | O-RING | K30001-@ | |
| 12 | 07372-21035 | BOLT | K30001-@ | |
| 13 | 01643-51032 | WASHER | K30001-@ | |
| 14 | 20Y-62-21280 | HOSE | K30001-@ | |
| 15 | 07000-13025 | O-RING | K30001-@ | |
| 16 | 07371-30640 | FLANGE | K30001-@ | |
| 17 | 07372-21035 | BOLT | K30001-@ | |
| 18 | 01643-51032 | WASHER | K30001-@ | |
| 19 | 20Y-62-28480 | BRACKET | K30001-@ | |
| 20 | 20Y-62-13710 | CLAMP | K30001-@ | |
| 21 | 01010-51235 | BOLT | K30001-K31999 | |
| 22 | 20Y-62-13450 | PLATE | K30001-@ |
