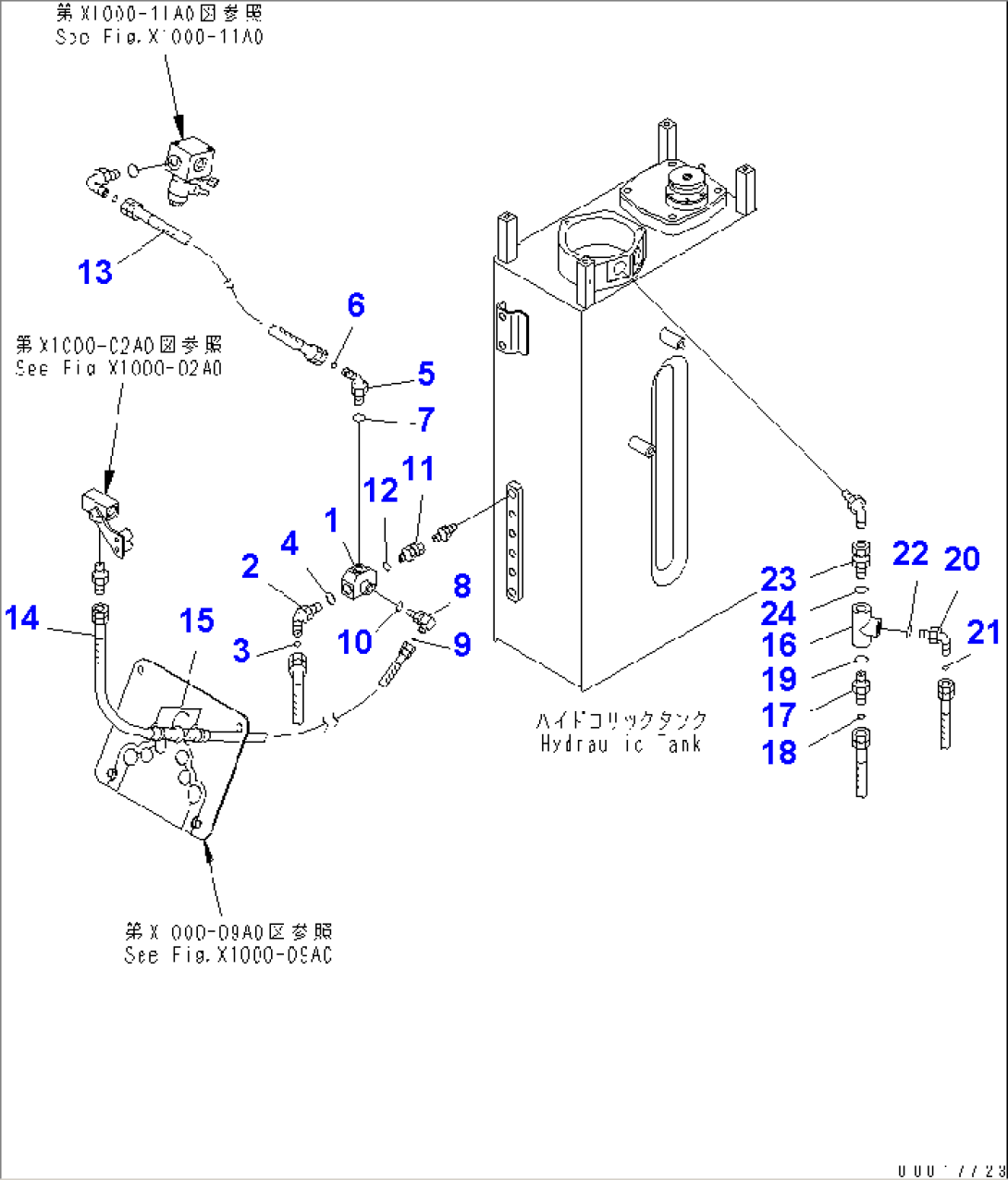

| Item | Part No. | Part Name | Qty | Serial No. |
| 22B-62-15880 | JOINT ASS'Y | 9501- | ||
| 1 | 22B-62-15860 | BLOCK | 9501- | |
| 2 | 02783-10422 | ELBOW | 9501- | |
| 3 | 02896-11012 | O-RING | 9501- | |
| 4 | 07002-12034 | O-RING | 9501- | |
| 5 | 02783-10210 | ELBOW | 9501- | |
| 6 | 02896-11008 | O-RING | 9501- | |
| 7 | 07002-11423 | O-RING | 9501- | |
| 8 | 02782-10311 | ELBOW | 9501- | |
| 9 | 02896-11009 | O-RING | 9501- | |
| 10 | 07002-11423 | O-RING | 9501- | |
| 11 | 22B-62-15820 | CONNECTOR | 9501- | |
| 12 | 07002-12034 | O-RING | 9501- | |
| 13 | 02762-002A5 | HOSE | 9501- | |
| 14 | 22B-62-19810 | HOSE | 9501- | |
| 15 | 08034-20834 | BAND | 9501- | |
| 22B-62-15970 | JOINT ASS'Y | 9501- | ||
| 16 | 22B-62-15870 | TEE | 9501- | |
| 17 | 02781-00628 | UNION | 9501- | |
| 18 | 02896-11018 | O-RING | 9501- | |
| 19 | 07002-12434 | O-RING | 9501- | |
| 20 | 02782-10422 | ELBOW | 9501- | |
| 21 | 02896-11012 | O-RING | 9501- | |
| 22 | 07002-12034 | O-RING | 9501- | |
| 23 | 22B-62-15850 | CONNECTOR | 9501- | |
| 24 | 07002-12434 | O-RING | 9501- |
