| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-968-4350 | LAMP | 20001- | |
| 2 | 04434-51010 | CLIP | 20001- | |
| 3 | 04434-51008 | CLIP | 20001- | |
| 4 | 08037-02512 | GROMMET | 20001- | |
| 5 | 22U-00-27311 | PLATE | 22197- | |
| 22U-00-27310 | PLATE | 20001-22196 | ||
| 6 | 22U-00-27320 | CASE | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc58uu 3 s/n 20001 up
- Special product
- Arm crane (lamp and plate) (for cab)
Поиск по каталогу

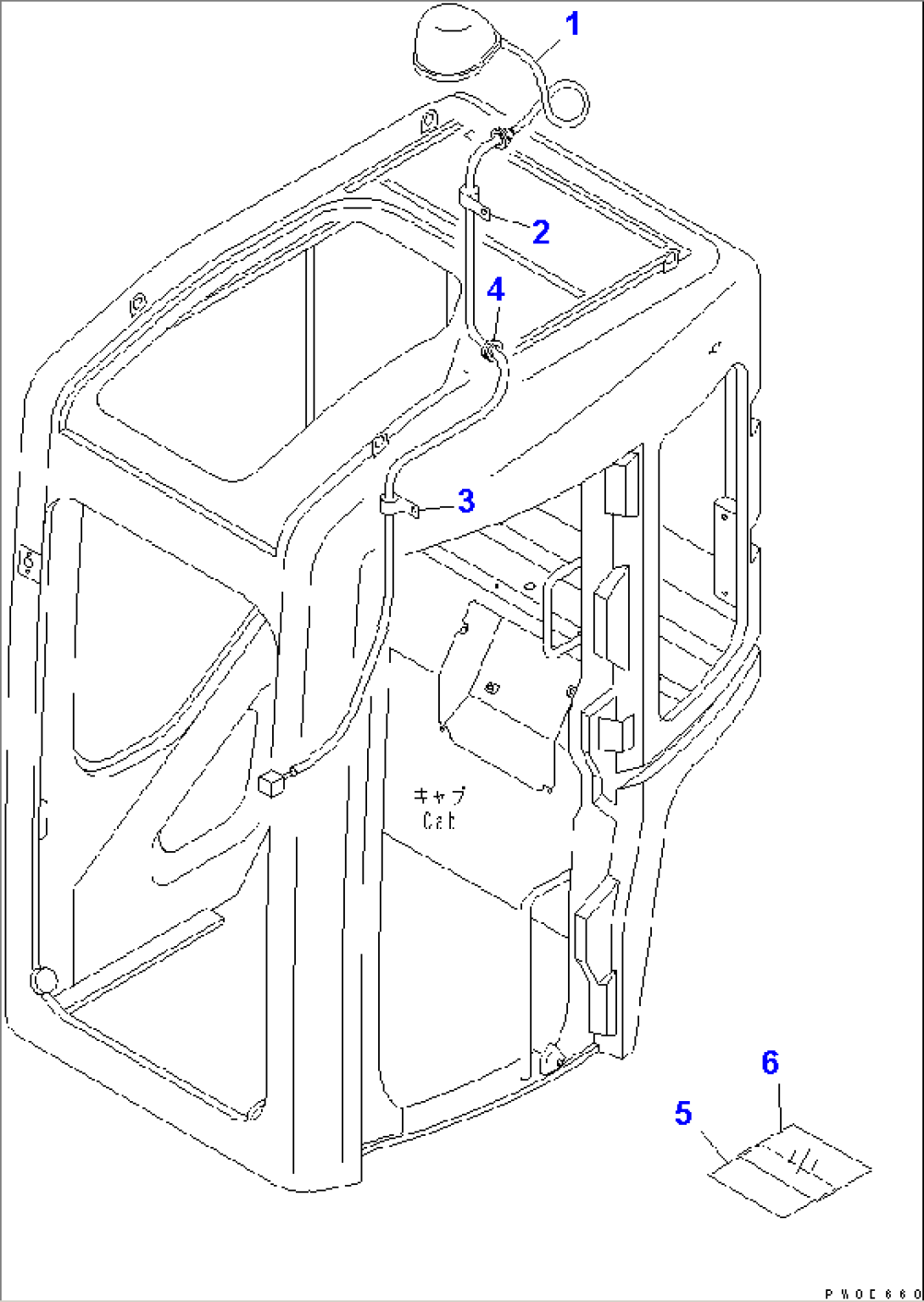

ARM CRANE (LAMP AND PLATE) (FOR CAB)
