| Item | Part No. | Part Name | Qty | Serial No. |

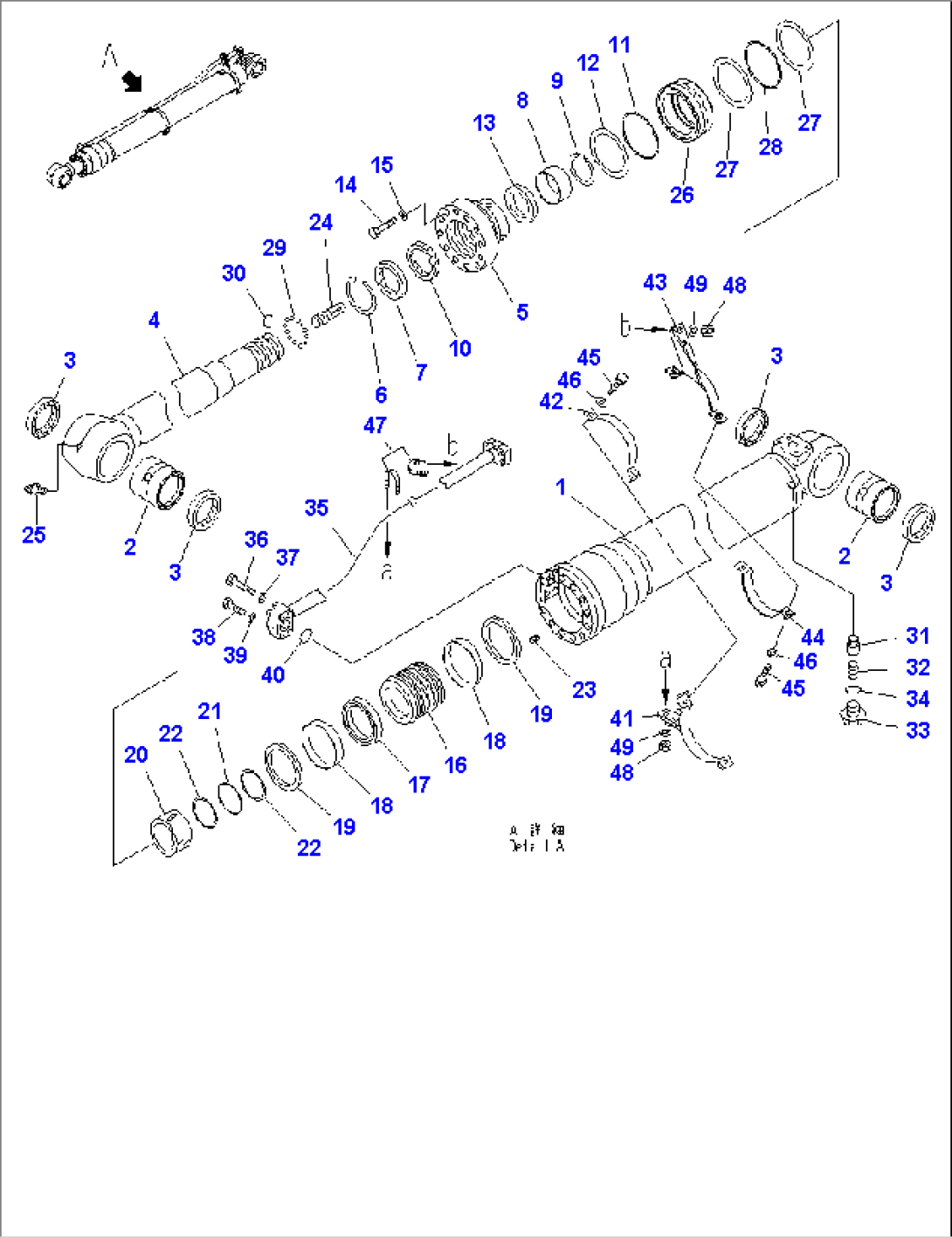

| G-1 | (\8\707-01-XR251) | CYLINDER GROUP,(FINAL COATING) | B31800- | |
| ==================== | ||||
| 707-01-0J251 | CYLINDER ASS'Y | B31800- | ||
| 1 | 707-13-13870 | CYLINDER | B31800- | |
| 2 | 707-76-80010 | BUSHING | B31800- | |
| 3 | 07145-00080 | SEAL,DUST (KIT) | B31800- | |
| 4 | 707-58-95270 | ROD,PISTON | B31800- | |
| 5 | 707-27-13850 | HEAD,CYLINDER | B31800- | |
| 6 | 07179-13109 | RING,SNAP | B31800- | |
| 7 | 707-56-95510 | SEAL,DUST (KIT) | B31800- | |
| 8 | 707-52-90720 | BUSHING | B31800- | |
| 9 | 707-75-95030 | RING,SNAP | B31800- | |
| 10 | 707-51-95030 | PACKING,ROD (KIT) | B31800- | |
| 11 | 07000-15125 | O-RING (KIT) | B31800- | |
| 12 | 707-35-31260 | RING,BACK-UP (KIT) | B31800- | |
| 13 | 707-51-95650 | RING,BUFFER (KIT) | B31800- | |
| 14 | 01010-81875 | BOLT | B31800- | |
| 15 | 707-41-11840 | WASHER | B31800- | |
| 16 | 707-36-13771 | PISTON | B31800- | |
| 17 | 707-44-13250 | RING,PISTON (KIT) | B31800- | |
| 18 | 707-39-13530 | RING,WEAR (KIT) | B31800- | |
| 19 | 707-44-13920 | RING | B31800- | |
| 20 | 707-71-71010 | PLUNGER | B31800- | |
| 21 | 07000-15085 | O-RING (KIT) | B31800- | |
| 22 | 707-35-30850 | RING,BACK-UP (KIT) | B31800- | |
| \0\707-35-90960 | RING,BACK-UP (KIT) | B31800- | ||
| 23 | 01310-01216 | SCREW | B31800- | |
| 24 | 707-71-80270 | PLUNGER | B31800- | |
| 25 | 07020-00000 | FITTING,GREASE | B31800- | |
| 26 | 707-71-34980 | COLLAR | B31800- | |
| 27 | 707-35-31260 | RING,BACK-UP (KIT) | B31800- | |
| \0\707-35-91370 | RING,BACK-UP (KIT) | B31800- | ||
| 28 | 07000-15125 | O-RING (KIT) | B31800- | |
| 29 | 04260-00635 | BALL | B31800- | |
| 30 | 707-71-91270 | CAP | B31800- | |
| 31 | 707-83-13010 | VALVE | B31800- | |
| 32 | 07750-01628 | SPRING | B31800- | |
| 33 | 707-87-14070 | PLUG | B31800- | |
| 34 | 07002-12034 | O-RING (KIT) | B31800- | |
| 35 | 707-86-67740 | TUBE | B31800- | |
| 36 | 07372-21060 | BOLT | B31800- | |
| 37 | 01643-51032 | WASHER | B31800- | |
| 38 | 07372-21045 | BOLT | B31800- | |
| 39 | 01643-51032 | WASHER | B31800- | |
| 40 | 07000-13030 | O-RING (KIT) | B31800- | |
| 41 | 707-88-22530 | BRACKET | B31800- | |
| 42 | 707-88-21261 | BAND | B31800- | |
| 43 | 707-88-28030 | BRACKET | B31800- | |
| 44 | 707-88-21261 | BAND | B31800- | |
| 45 | 07372-21035 | BOLT | B31800- | |
| 46 | 01643-51032 | WASHER | B31800- | |
| 47 | 07283-32738 | CLIP | B31800- | |
| 48 | 01597-01009 | NUT | B31800- | |
| 49 | 01643-31032 | WASHER | B31800- | |
| ==================== | ||||
| 707-99-50500 | SERVICE KIT | B31800- |
