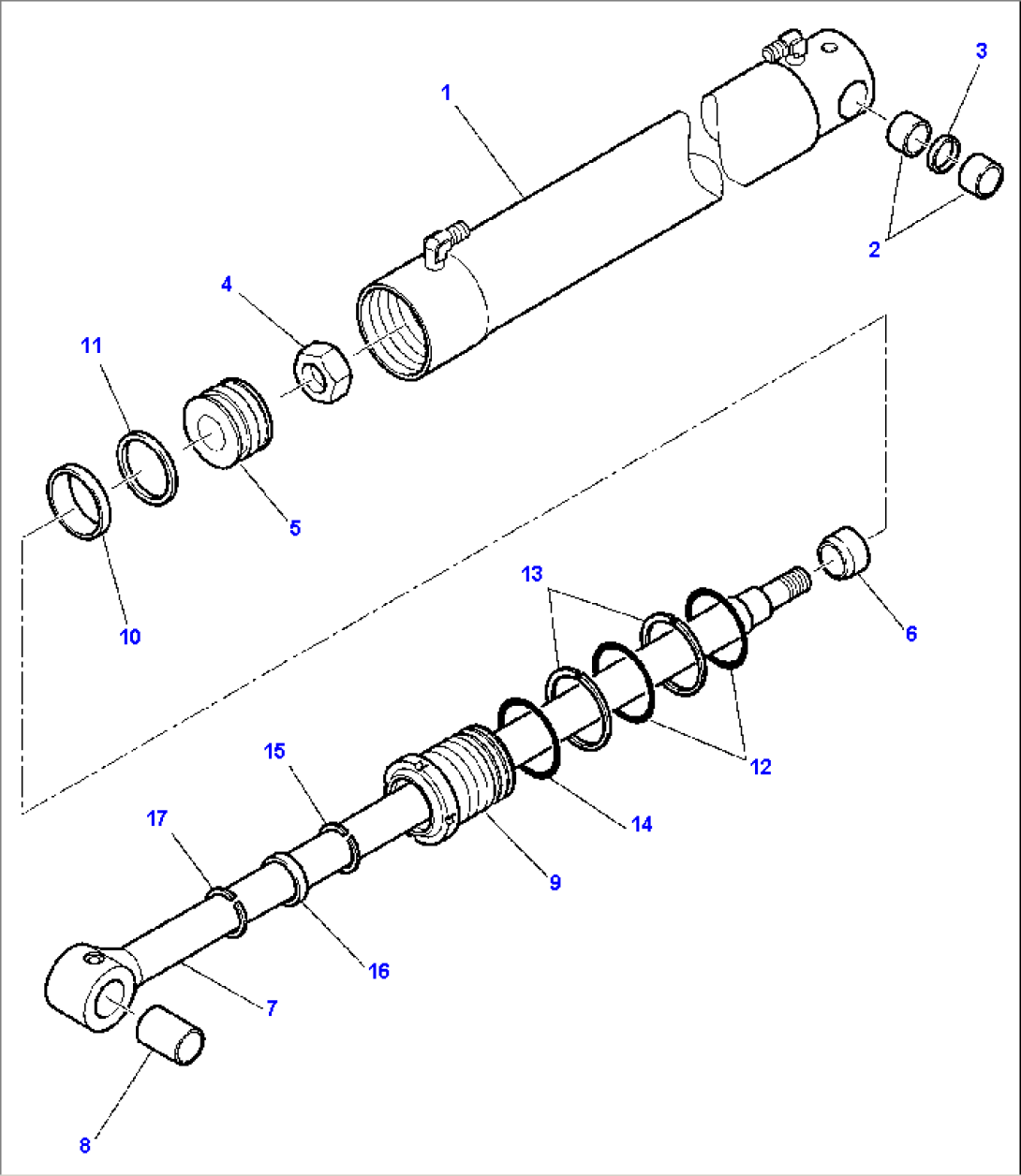

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (395002006) | ARM CYLINDER | 15050001- | |
| 1 | 395067012 | CYLINDER | 15050001- | |
| 2 | 500217005 | BUSHING | 15050001- | |
| 3 | 500044300 | SPACER | 15050001- | |
| 4 | 801920220 | NUT | 15050001- | |
| 5 | 395275013 | PISTON | 15050001- | |
| 6 | 391575011 | BUSHING | 15050001- | |
| 7 | 395188011 | ROD | 15050001- | |
| 8 | 500217006 | BUSHING | 15050001- | |
| 9 | 395303011 | CYLINDER HEAD | 15050001- | |
| \9 | 878000491 | GASKET KIT | 15050001- | |
| 10 | \6\ | GASKET | 15050001- | |
| 11 | \6\ | RING WEAR | 15050001- | |
| 12 | \6\ | O-RING | 15050001- | |
| 13 | \6\ | RING | 15050001- | |
| 14 | \6\ | O-RING | 15050001- | |
| 15 | \6\ | SCRAPER RING | 15050001- | |
| 16 | \6\ | GASKET | 15050001- | |
| 17 | \6\ | SCRAPER RING | 15050001- |
