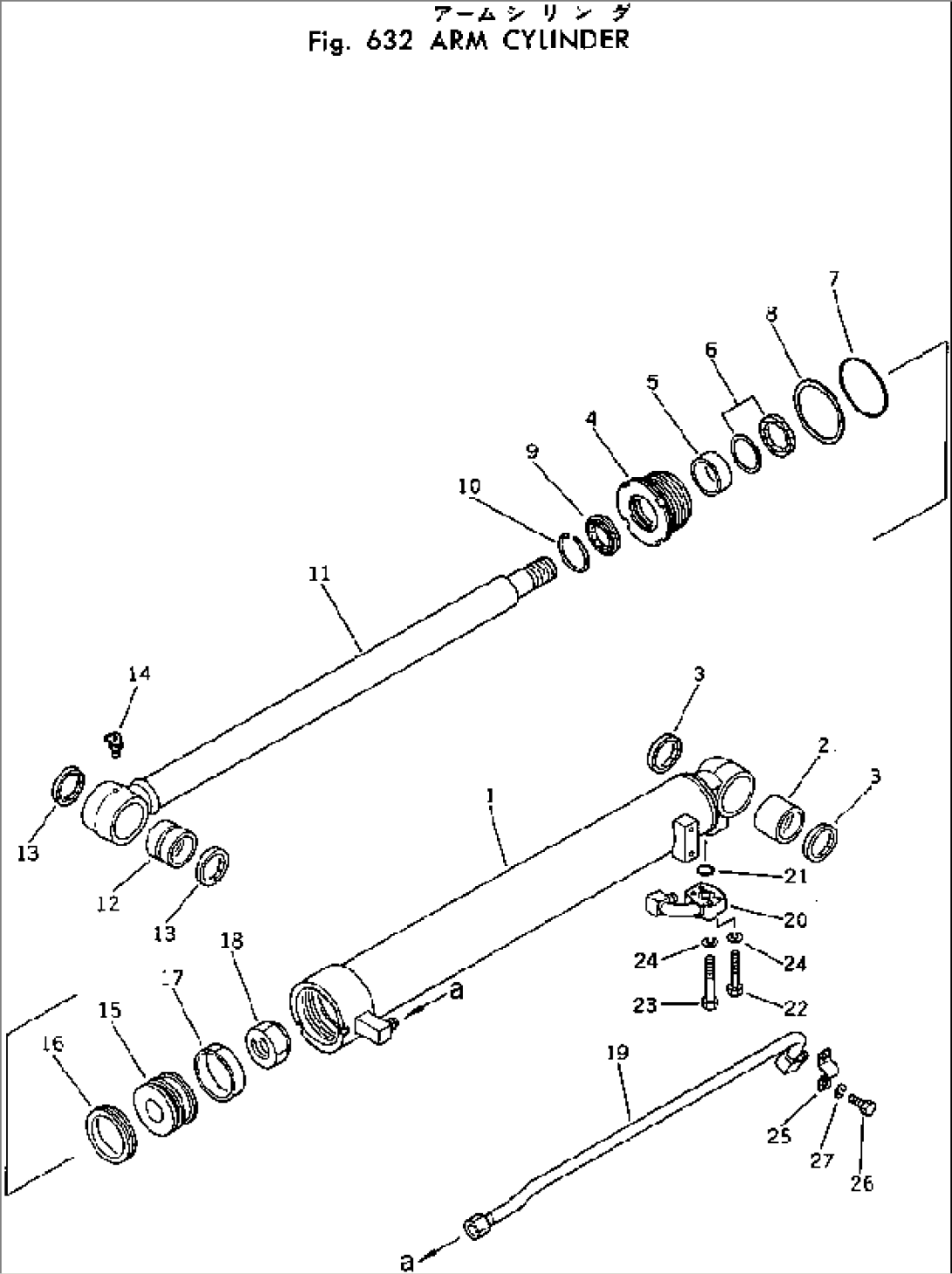

| Item | Part No. | Part Name | Qty | Serial No. |
| 201-63-36700 | CYLINDER ASS'Y | 15001- | ||
| 1 | 201-63-36740 | CYLINDER | 15001- | |
| 2 | 07143-10606 | BUSHING | 15001- | |
| 3 | 07145-00060 | SEAL,DUST (KIT) | 15001- | |
| 4 | 707-29-11490 | HEAD,CYLINDER | 15001- | |
| 5 | 07177-06530 | BUSHING | 15001- | |
| 6 | 707-51-65211 | PACKING,ROD (KIT) | 15001- | |
| 7 | 07000-12115 | O-RING (KIT) | 15001- | |
| 8 | 20D-63-32290 | RING,BACK-UP (KIT) | 15001- | |
| 9 | 144-63-92170 | SEAL,DUST (KIT) | 15001- | |
| 10 | 07179-00088 | RING,SNAP | 15001- | |
| 11 | 201-63-36720 | ROD | 15001- | |
| 12 | 07144-10606 | BUSHING | 15001- | |
| 13 | 07145-00060 | SEAL,DUST (KIT) | 15001- | |
| 14 | 07020-00675 | FITTING,GREASE | 15001- | |
| 15 | 707-36-11580 | PISTON | 15001- | |
| 16 | 707-44-11080 | RING,PISTON (KIT) | 15001- | |
| 17 | 07155-01125 | RING,WEAR (KIT) | 15001- | |
| 18 | 07165-14547 | NUT | 15001- | |
| 19 | 201-63-36770 | TUBE | 15001- | |
| 20 | 201-63-36580 | TUBE | 15001- | |
| 21 | 07000-13025 | O-RING (KIT) | 15001- | |
| 22 | 01010-50840 | BOLT | 15001- | |
| 23 | 01010-50850 | BOLT | 15001- | |
| 24 | 01602-20825 | WASHER,SPRING | 15001- | |
| 25 | 07282-02288 | CLAMP | 15001- | |
| 26 | 01010-51020 | BOLT | 15001- | |
| 27 | 01602-21030 | WASHER,SPRING | 15001- |
