| Item | Part No. | Part Name | Qty | Serial No. |

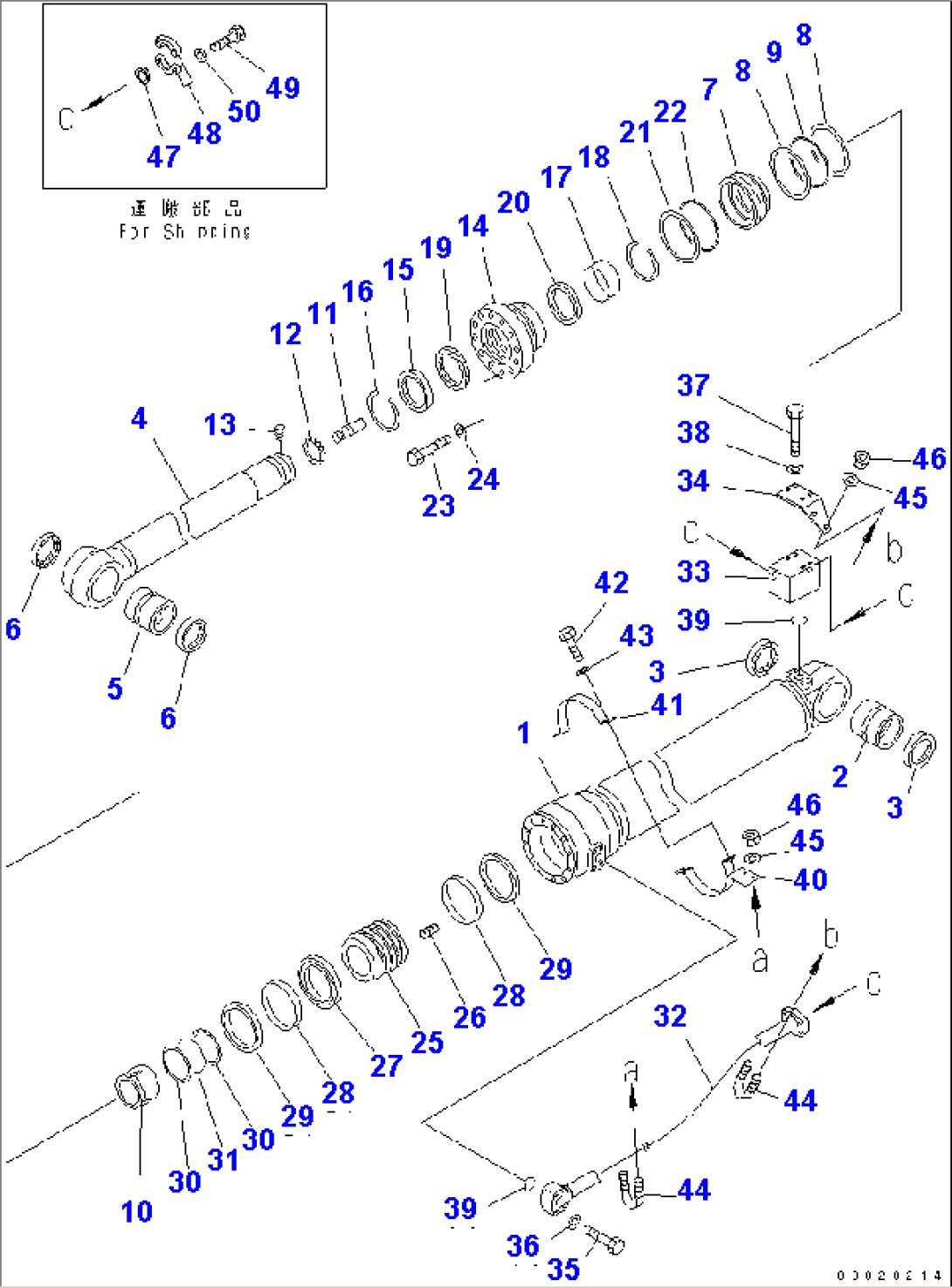

| G-1 | (\8\707-01-XU781) | ARM CYLINDER GROUP,(FINAL COATING) | K45001- | |
| ==================== | ||||
| 707-01-0F691 | CYLINDER ASS'Y | K45001- | ||
| 1 | 707-13-18770 | CYLINDER | K45001- | |
| 2 | 707-76-11220 | BUSHING | K45001- | |
| 3 | 07145-00110 | SEAL,DUST (KIT) | K45001- | |
| 4 | 707-58-12530 | ROD | K45001- | |
| 5 | 707-76-11220 | BUSHING | K45001- | |
| 6 | 07145-00110 | SEAL,DUST (KIT) | K45001- | |
| 7 | 707-71-31690 | COLLAR | K45001- | |
| 8 | 707-35-91840 | RING,BACK-UP (KIT) | K45001- | |
| 9 | 07000-15175 | O-RING (KIT) | K45001- | |
| 10 | 707-71-61330 | PLUNGER | K45001- | |
| 11 | 707-71-70340 | PLUNGER | K45001- | |
| 12 | 04260-00952 | BALL | K45001- | |
| 13 | 707-71-91230 | CAP | K45001- | |
| 14 | 707-27-18930 | HEAD | K45001- | |
| 15 | 195-63-93170 | SEAL,DUST (KIT) | K45001- | |
| 16 | 07179-13136 | RING,SNAP | K45001- | |
| 17 | 707-52-90980 | BUSHING | K45001- | |
| 18 | 07179-13126 | RING,SNAP | K45001- | |
| 19 | 707-51-12030 | PACKING,ROD (KIT) | K45001- | |
| 20 | 707-51-12640 | RING,BUFFER (KIT) | K45001- | |
| 21 | 707-35-91840 | RING,BACK-UP (KIT) | K45001- | |
| 22 | 07000-15175 | O-RING (KIT) | K45001- | |
| 23 | 01011-82400 | BOLT | K45001- | |
| 24 | 707-88-75410 | WASHER | K45001- | |
| 25 | 707-36-18520 | PISTON | K45001- | |
| 26 | 01310-01225 | SCREW | K45001- | |
| 27 | 707-44-18280 | RING,PISTON (KIT) | K45001- | |
| 28 | 707-39-18510 | RING,WEAR (KIT) | K45001- | |
| 29 | 707-44-18920 | RING | K45001- | |
| 30 | 07001-05110 | RING,BACK-UP (KIT) | K45001- | |
| 31 | 07000-15110 | O-RING (KIT) | K45001- | |
| 32 | 707-86-12610 | TUBE | K45001- | |
| 33 | 707-86-11610 | BLOCK | K45001- | |
| 34 | 707-88-02960 | PLATE | K45001- | |
| 35 | 07372-21060 | BOLT | K45001- | |
| 36 | 01643-51032 | WASHER | K45001- | |
| 37 | 01011-81005 | BOLT | K45001- | |
| 38 | 01643-51032 | WASHER | K45001- | |
| 39 | 07000-13035 | O-RING (KIT) | K45001- | |
| 40 | 707-88-25450 | BRACKET | K45001- | |
| 41 | 707-88-21880 | BAND | K45001- | |
| 42 | 07372-21240 | BOLT | K45001- | |
| 43 | 01643-51232 | WASHER | K45001- | |
| 44 | 07283-33442 | CLIP | K45001- | |
| 45 | 01643-31032 | WASHER | K45001- | |
| 46 | 01597-01009 | NUT | K45001- | |
| 47 | 707-88-33040 | CAP | K45001- | |
| 48 | 07371-31049 | FLANGE,SPLIT | K45001- | |
| 49 | 07372-21035 | BOLT | K45001- | |
| 50 | 01643-51032 | WASHER | K45001- | |
| ==================== | ||||
| 707-99-68780 | SERVICE KIT | K45001- |
