| Item | Part No. | Part Name | Qty | Serial No. |

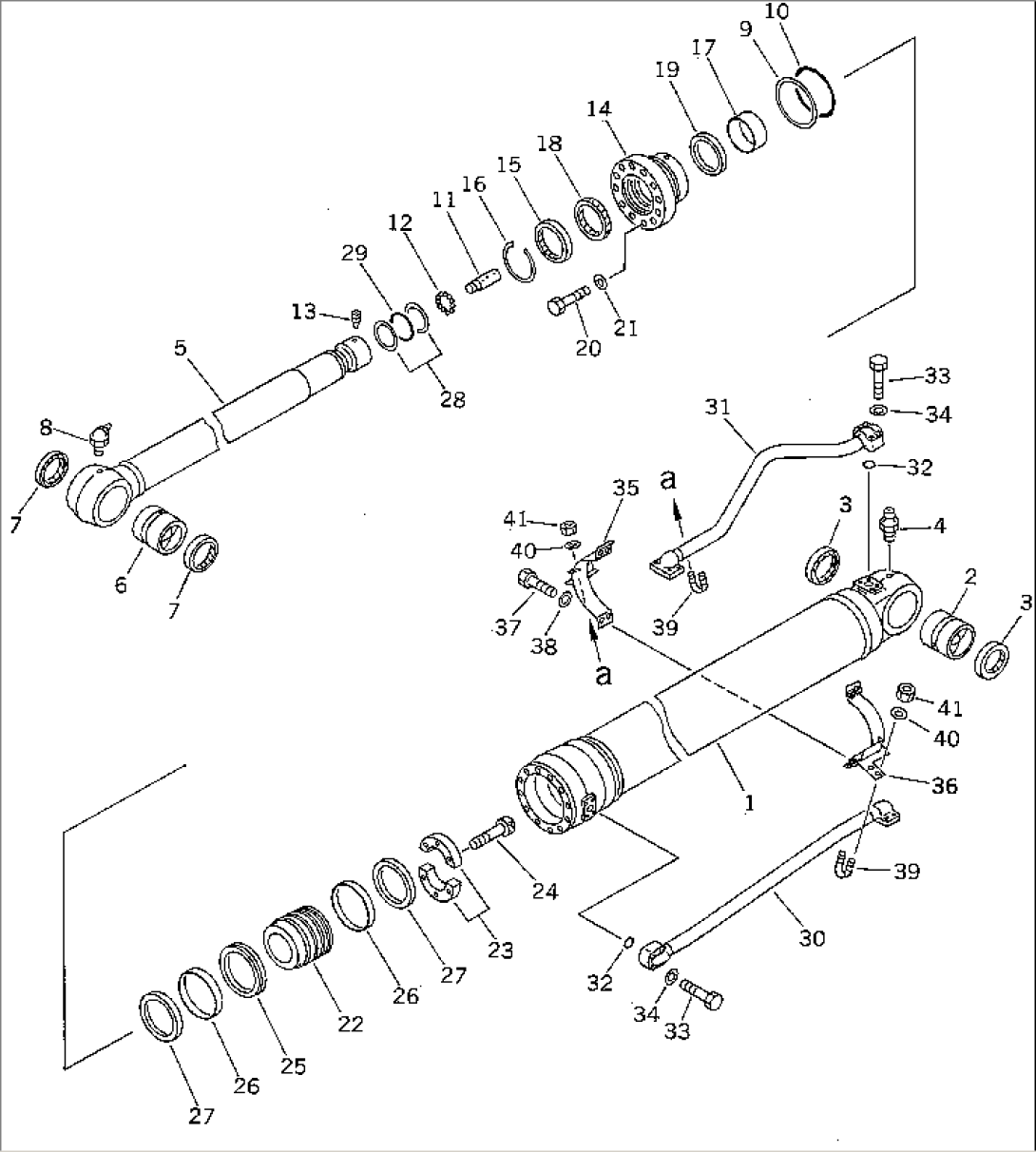

| G-1 | (\8\208-63-X3120) | ARM CYLINDER GROUP | 20001- | |
| ==================== | ||||
| 208-63-03120 | ARM CYLINDER ASS'Y | 20001- | ||
| 1 | 208-63-64340 | CYLINDER | 20001- | |
| 2 | 707-76-11130 | BUSHING | 20001- | |
| 3 | 07145-00110 | SEAL,DUST (KIT) | 20001- | |
| 4 | 07020-00000 | FITTING,GREASE | 20001- | |
| 5 | 208-63-64320 | ROD | 20001- | |
| 6 | 707-76-11130 | BUSHING | 20001- | |
| 7 | 07145-00110 | SEAL,DUST (KIT) | 20001- | |
| 8 | 07020-00675 | FITTING,GREASE | 20001- | |
| 9 | 07001-05180 | RING,BACK-UP (KIT) | 20001- | |
| 10 | 07000-15180 | O-RING (KIT) | 20001- | |
| 11 | 707-71-60310 | PLUNGER | 20001- | |
| 12 | 04260-01270 | BALL | 20001- | |
| 13 | 707-71-91050 | SCREW | 20001- | |
| 14 | 707-27-18660 | HEAD | 20001- | |
| 15 | 195-63-93170 | SEAL,DUST (KIT) | 20001- | |
| 16 | 07179-13136 | RING,SNAP | 20001- | |
| 17 | 707-52-90950 | BUSHING | 20001- | |
| 18 | 707-51-12030 | PACKING,ROD (KIT) | 20001- | |
| 19 | 707-51-12630 | RING,BUFFER (KIT) | 20001- | |
| 20 | 01011-82400 | BOLT | 20001- | |
| 21 | 707-88-75410 | WASHER | 20001- | |
| 22 | 707-36-18500 | PISTON | 20001- | |
| 23 | 707-40-18870 | SPACER | 20001- | |
| 24 | 01252-31455 | BOLT | 20001- | |
| 25 | 707-44-18280 | RING,PISTON (KIT) | 20001- | |
| 26 | 707-39-18830 | RING,WEAR (KIT) | 20001- | |
| 27 | 707-44-18920 | RING | 20001- | |
| 28 | 707-35-52940 | RING,BACK-UP (KIT) | 20001- | |
| 29 | 07000-12100 | O-RING (KIT) | 20001- | |
| 30 | 208-63-64370 | TUBE | 20001- | |
| 31 | 207-63-64380 | TUBE | 20001- | |
| 32 | 07000-13035 | O-RING (KIT) | 20001- | |
| 33 | 01010-51060 | BOLT | 20001- | |
| 34 | 01643-51032 | WASHER | 20001- | |
| 35 | 208-63-64390 | BRACKET | 20001- | |
| 36 | 208-63-64400 | BRACKET | 20001- | |
| 37 | 01010-51240 | BOLT | 20001- | |
| 38 | 01643-51232 | WASHER | 20001- | |
| 39 | 07283-23442 | CLIP | 20001- | |
| 40 | 01643-31032 | WASHER | 20001- | |
| 41 | 01599-01011 | NUT | 20001- | |
| ==================== |
