| Item | Part No. | Part Name | Qty | Serial No. |

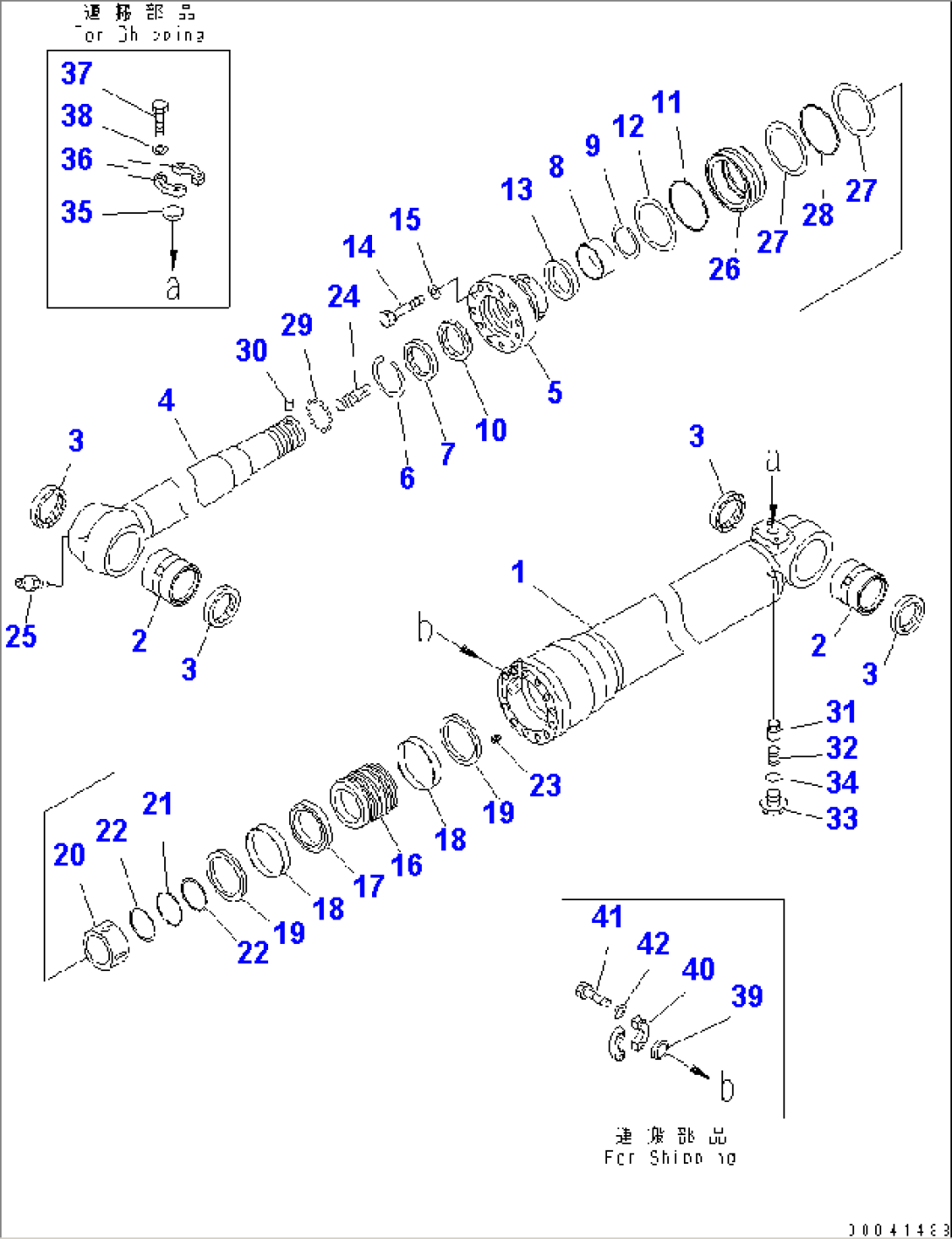

| G-1 | 707-01-0R080 | CYLINDER GROUP | 40001- | |
| ==================== | ||||
| 1 | 707-01-0H600 | CYLINDER ASS'Y | 40001- | |
| 1 | 707-13-13870 | CYLINDER | 40001- | |
| 2 | 707-76-80431 | BUSHING | 40001- | |
| 3 | 707-77-80010 | SEAL,DUST (KIT) | 40001- | |
| 4 | 707-58-95270 | ROD,PISTON | 40001- | |
| 5 | 707-27-13850 | HEAD,CYLINDER | 40001- | |
| 6 | 07179-13109 | RING,SNAP | 40001- | |
| 7 | 707-56-95730 | SEAL,DUST (KIT) | 40001- | |
| 8 | 707-52-90720 | BUSHING | 40001- | |
| 9 | 707-75-95030 | RING,SNAP | 40001- | |
| 10 | 707-51-95030 | PACKING,ROD (KIT) | 40001- | |
| 11 | 07000-15125 | O-RING (KIT) | 40001- | |
| 12 | 707-35-91370 | RING,BACK-UP (KIT) | 40001- | |
| 13 | 707-51-95650 | RING,BUFFER (KIT) | 40001- | |
| 14 | 01010-81875 | BOLT | 40001- | |
| 15 | 707-41-11840 | WASHER | 40001- | |
| 16 | 707-36-13771 | PISTON | 40001- | |
| 17 | 707-44-13250 | RING,PISTON (KIT) | 40001- | |
| 18 | 707-39-13530 | RING,WEAR (KIT) | 40001- | |
| 19 | 707-44-13920 | RING | 40001- | |
| 20 | 707-71-71070 | PLUNGER | 40001- | |
| 21 | 07000-15085 | O-RING (KIT) | 40001- | |
| 22 | 707-35-90960 | RING,BACK-UP (KIT) | 40001- | |
| 23 | 01310-01216 | SCREW | 40001- | |
| 24 | 707-71-80270 | PLUNGER | 40001- | |
| 25 | 07020-00000 | FITTING,GREASE | 40001- | |
| 26 | 707-71-34980 | COLLAR | 40001- | |
| 27 | 707-35-91370 | RING,BACK-UP (KIT) | 40001- | |
| 28 | 07000-15125 | O-RING (KIT) | 40001- | |
| 29 | 04260-00635 | BALL | 40001- | |
| 30 | 707-71-91270 | CAP | 40001- | |
| 31 | 707-83-13010 | VALVE | 40001- | |
| 32 | 07750-01628 | SPRING | 40001- | |
| 33 | 707-87-14070 | PLUG | 40001- | |
| 34 | 07002-12034 | O-RING (KIT) | 40001- | |
| 35 | 707-88-33040 | CAP | 40001- | |
| 36 | 07371-31049 | FLANGE,SPLIT | 40001- | |
| 37 | 07372-21035 | BOLT | 40001- | |
| 38 | 01643-51032 | WASHER | 40001- | |
| 39 | 707-88-33030 | CAP | 40001- | |
| 40 | 07371-30640 | FLANGE,SPLIT | 40001- | |
| 41 | 07372-21035 | BOLT | 40001- | |
| 42 | 01643-51032 | WASHER | 40001- | |
| ==================== | ||||
| K | 707-98-48610 | SERVICE KIT | 40001- |
