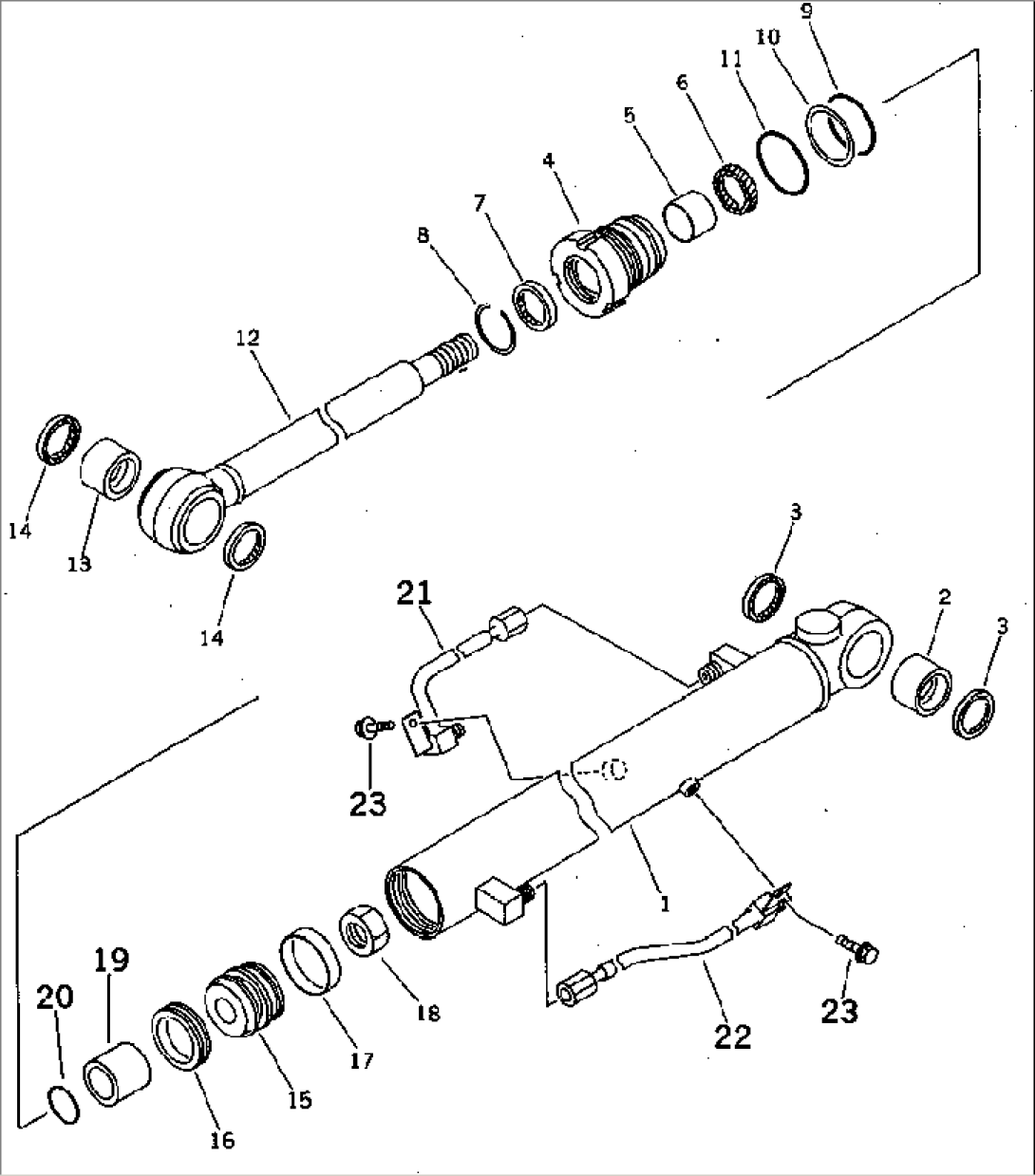

| Item | Part No. | Part Name | Qty | Serial No. |
| 20M-63-02021 | CYLINDER ASS'Y | 8001- | ||
| 1 | 20M-63-67141 | CYLINDER | 8001- | |
| 2 | 07143-10302 | BUSHING | 8001- | |
| 3 | 07145-00030 | SEAL,DUST (K3) | 8001- | |
| 4 | 707-29-50810 | HEAD,CYLINDER | 8001- | |
| 5 | 07177-03025 | BUSHING | 8001- | |
| 6 | 707-51-30210 | PACKING,ROD (K3) | 8001- | |
| 7 | 707-56-30510 | SEAL,DUST (K3) | 8001- | |
| 8 | 07179-12042 | RING,SNAP | 8001- | |
| 9 | 07000-13045 | O-RING (K3) | 8001- | |
| 10 | 707-35-52510 | RING,BACK-UP (K3) | 8001- | |
| 11 | 07000-03048 | O-RING (K3) | 8001- | |
| 12 | 707-58-30670 | ROD,PISTON | 8001- | |
| 13 | 07143-10302 | BUSHING | 8001- | |
| 14 | 07145-00030 | SEAL,DUST (K3) | 8001- | |
| 15 | 707-36-50070 | PISTON | 8001- | |
| 16 | 707-44-50180 | RING,PISTON (K3) | 8001- | |
| 17 | 10E-63-32390 | RING,WEAR (K3) | 8001- | |
| 18 | 01580-02218 | NUT | 8001- | |
| 19 | 20M-70-71530 | SPACER | 8001- | |
| 20 | 07000-03030 | O-RING | 8001- | |
| 21 | 20M-62-73210 | TUBE | 8001- | |
| 22 | 20M-63-67170 | TUBE | 8001- | |
| 23 | 01435-00812 | BOLT | 8001- |
