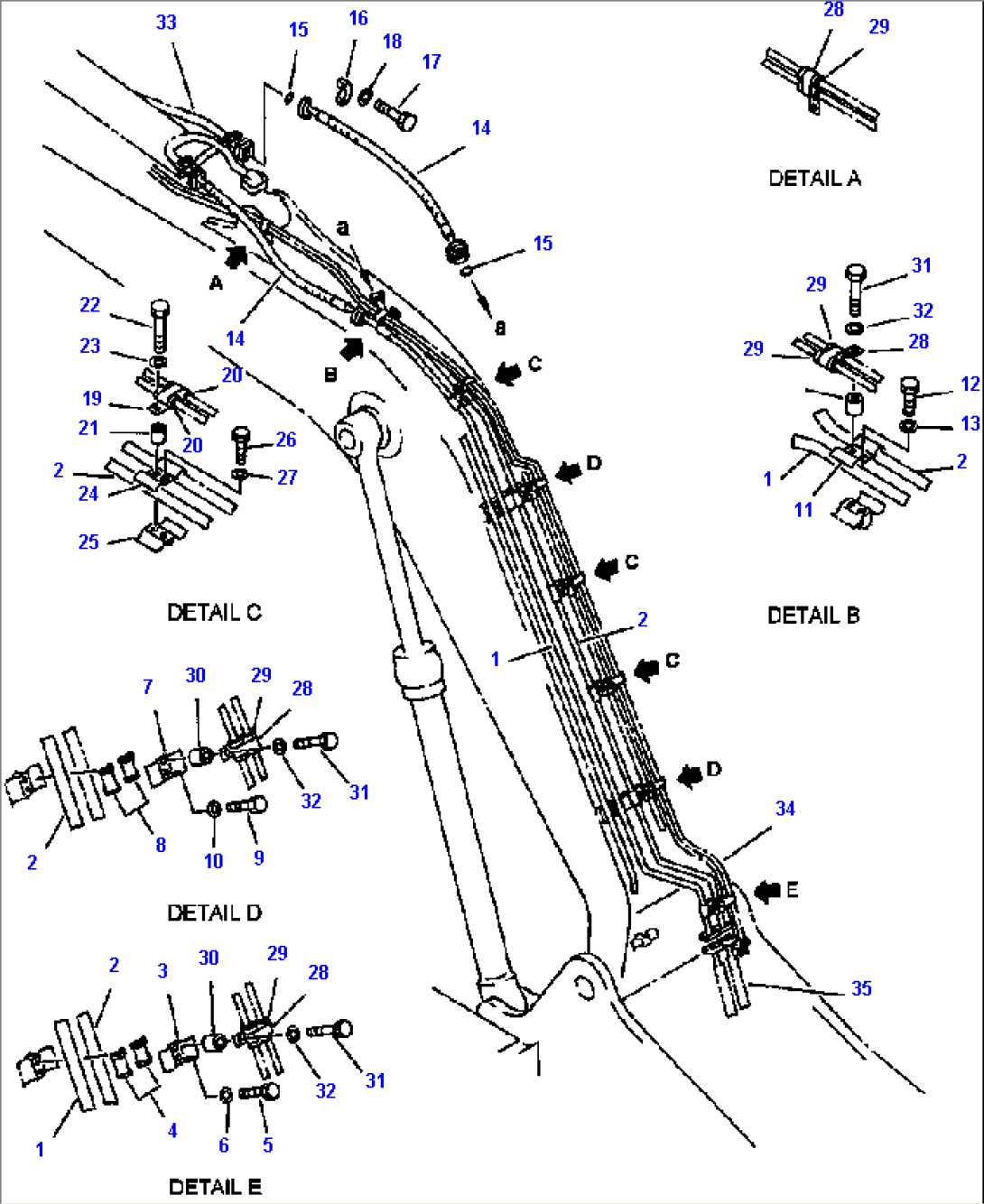

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-54611 | TUBE | ||
| 2 | 207-62-54621 | TUBE | ||
| 3 | 207-62-54770 | CLAMP | ||
| 4 | 205-62-73430 | SEAT | ||
| 5 | 01010-81230 | BOLT | ||
| 6 | 01643-31232 | WASHER | ||
| 7 | 207-62-54770 | CLAMP | ||
| 8 | 205-62-73430 | SEAT | ||
| 9 | 01010-81230 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 207-62-54760 | CLAMP | ||
| 12 | 01010-81230 | BOLT | ||
| 13 | 01643-31232 | WASHER | ||
| 14 | 207-62-54670 | HOSE | ||
| 15 | 07000-13032 | O-RING | ||
| 16 | 07371-31049 | FLANGE | ||
| 17 | 07372-21035 | BOLT | ||
| 18 | 01643-51032 | WASHER | ||
| 19 | 419-963-1430 | CLIP | ||
| 20 | 07095-20318 | CUSHION | ||
| 21 | 120-54-42430 | SPACER | ||
| 22 | 01010-81255 | BOLT | ||
| 23 | 01643-31232 | WASHER | ||
| 24 | 207-62-54760 | CLAMP | ||
| 25 | 207-62-55160 | CLAMP | ||
| 26 | 01010-81230 | BOLT | ||
| 27 | 01643-31232 | WASHER | ||
| 28 | 419-963-1430 | CLIP | ||
| 29 | 07095-20318 | CUSHION | ||
| 30 | 120-54-42430 | SPACER | ||
| 31 | 01010-81260 | BOLT | ||
| 32 | 01643-31232 | WASHER | ||
| 33 | TUBE (SEE PG 07-040) | |||
| 34 | TUBE (SEE PG 07-040) | |||
| 35 | HOSE (SEE PG 06-178) |
