| Item | Part No. | Part Name | Qty | Serial No. |

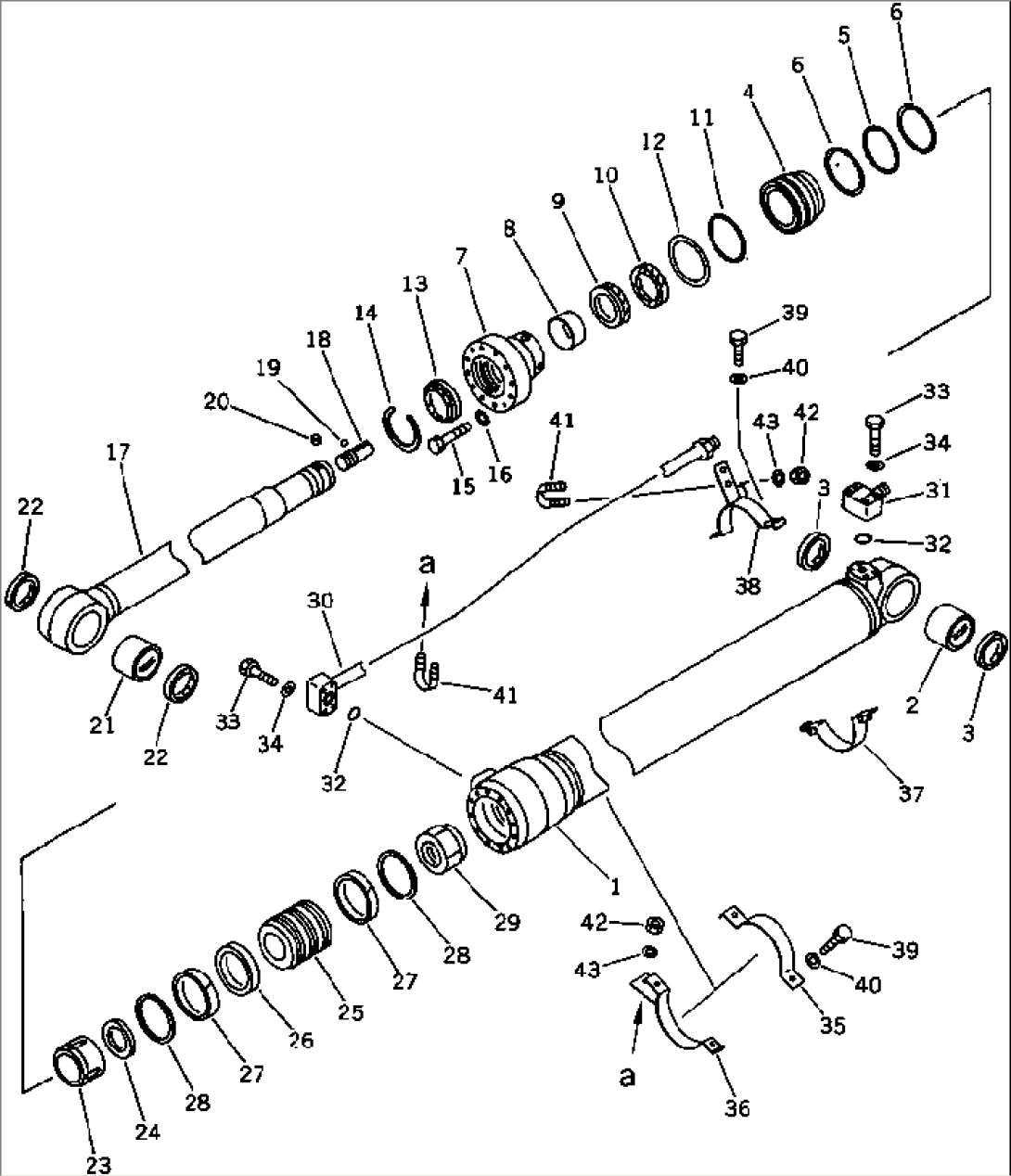

| G1 | (\8\203-63-X2121) | CYLINDER ASS'Y,ARM | K20245-K20574 | |
| ==================== | ||||
| 203-63-02120 | CYLINDER ASS'Y,ARM | K20245-K20574 | ||
| 1 | 203-63-64341 | CYLINDER | K20245-K20574 | |
| 2 | 707-76-70240 | BUSHING | K20245-K20574 | |
| 3 | 07145-00070 | SEAL,DUST | K20245-K20574 | |
| 4 | 707-71-32500 | COLLAR | K20245-K20574 | |
| 5 | 07000-15110 | O-RING | K20245-K20574 | |
| 6 | 07001-05110 | RING,BACK-UP | K20245-K20574 | |
| 7 | 707-27-11670 | HEAD,CYLINDER | K20245-K20574 | |
| 8 | 707-52-90500 | BUSHING | K20245-K20574 | |
| 9 | 707-51-75030 | PACKING,ROD | K20245-K20574 | |
| 10 | 707-51-75630 | RING,BUFFER | K20245-K20574 | |
| 11 | 07000-15110 | O-RING | K20245-K20574 | |
| 12 | 07001-05110 | RING,BACK-UP | K20245-K20574 | |
| 13 | 144-63-94170 | SEAL,DUST | K20245-K20574 | |
| 14 | 07179-13089 | RING,SNAP | K20245-K20574 | |
| 15 | 01010-81670 | BOLT | K20245-K20574 | |
| 16 | 01643-51645 | WASHER | K20245-K20574 | |
| 17 | 203-63-64320 | ROD | K20245-K20574 | |
| 18 | 707-71-60200 | PLUNGER | K20245-K20574 | |
| 19 | 04260-00635 | BALL | K20245-K20574 | |
| 20 | 707-71-91270 | CAP | K20245-K20574 | |
| 21 | 707-76-70240 | BUSHING | K20245-K20574 | |
| 22 | 07145-00070 | SEAL,DUST | K20245-K20574 | |
| 23 | 707-71-60801 | PLUNGER | K20245-K20574 | |
| 24 | 707-40-11470 | RETAINER | K20245-K20574 | |
| 25 | 707-36-11510 | PISTON | K20245-K20574 | |
| 26 | 707-44-11280 | RING,PISTON | K20245-K20574 | |
| 27 | 707-39-11510 | RING,WEAR | K20245-K20574 | |
| 28 | 707-44-11920 | RING | K20245-K20574 | |
| 29 | 07165-15860 | NUT,NYLON | K20245-K20574 | |
| 30 | 203-63-64371 | TUBE | K20245-K20574 | |
| 31 | 707-87-11450 | ELBOW | K20245-K20574 | |
| 32 | 07000-13025 | O-RING | K20245-K20574 | |
| 33 | 01010-50850 | BOLT | K20245-K20574 | |
| 34 | 01643-50823 | WASHER | K20245-K20574 | |
| 35 | 707-88-95350 | BAND | K20245-K20574 | |
| 36 | 707-88-95502 | BRACKET | K20245-K20574 | |
| 37 | 707-88-95360 | BAND | K20245-K20574 | |
| 38 | 707-88-95510 | BRACKET | K20245-K20574 | |
| 39 | 01010-51035 | BOLT | K20245-K20574 | |
| 40 | 01643-51032 | WASHER | K20245-K20574 | |
| 41 | 07283-22236 | CLIP | K20245-K20574 | |
| 42 | 01599-01011 | NUT | K20245-K20574 | |
| 43 | 01643-31032 | WASHER | K20245-K20574 | |
| ==================== |
