| Item | Part No. | Part Name | Qty | Serial No. |

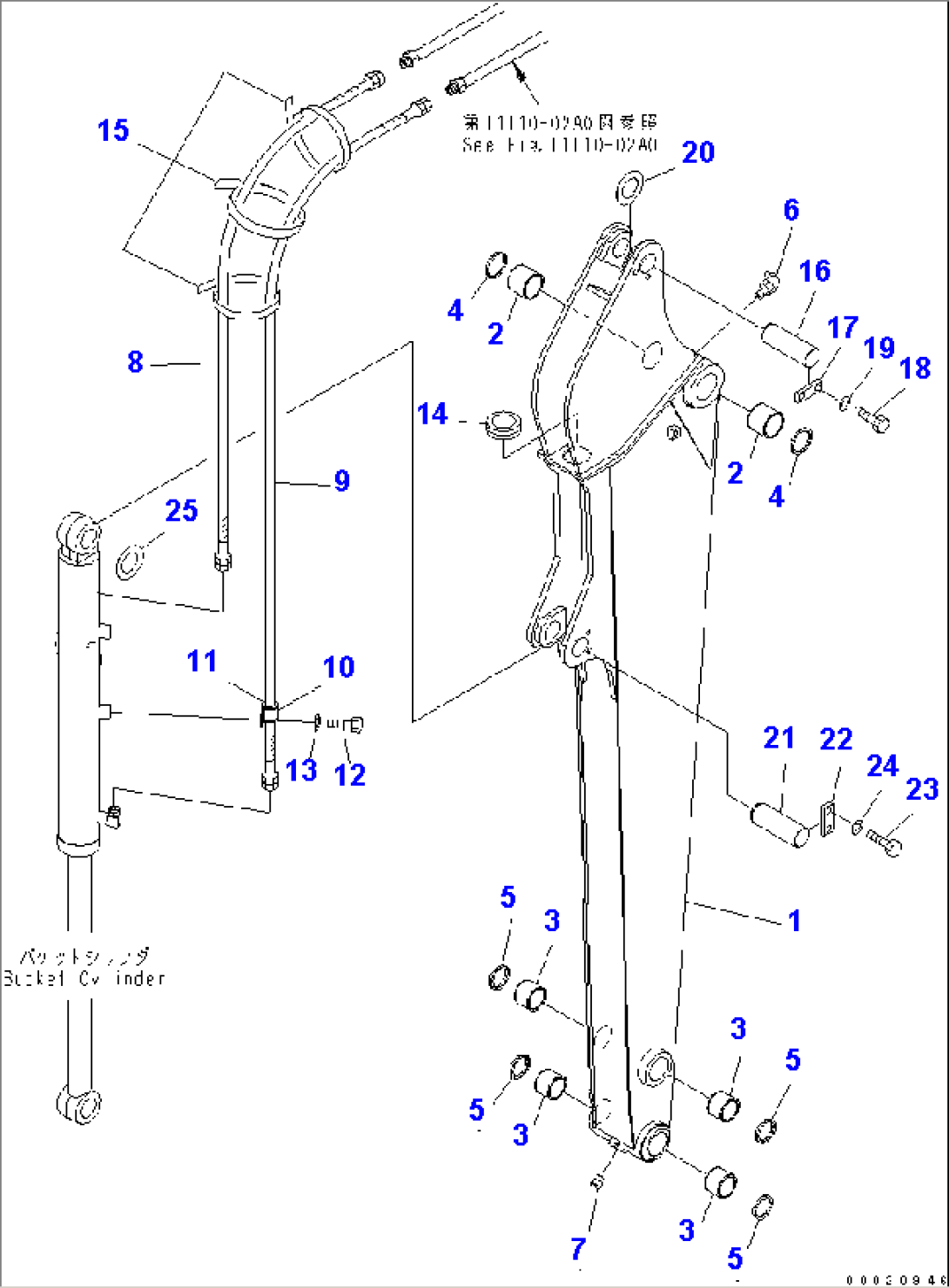

| 22M-943-0111 | ARM ASS'Y | 8001- | ||
| 1 | \6\ | ARM | 8001- | |
| 2 | 22M-70-21730 | BUSHING | 8001- | |
| 3 | 22M-70-21740 | BUSHING | 8001- | |
| 4 | 07145-00050 | SEAL | 8001- | |
| 5 | 20U-70-42530 | SEAL | 8001- | |
| 6 | 07020-00675 | FITTING | 8001- | |
| 7 | 07043-70108 | PLUG | 8001- | |
| 8 | 22M-943-2180 | HOSE | 8001- | |
| 9 | 22M-943-2141 | HOSE | 8001- | |
| 10 | 04434-52711 | CLIP | 8001- | |
| 11 | 07095-20419 | CUSHION | 8001- | |
| 12 | 01010-81020 | BOLT | 8001- | |
| 13 | 01643-31032 | WASHER | 8001- | |
| 14 | 08037-05022 | GROMMET | 8001- | |
| 15 | 08034-20519 | BAND | 8001- | |
| 16 | 22M-70-22820 | PIN | 10201- | |
| 16 | \0\20S-70-71571 | PIN | 8001-10200 | |
| 17 | 04082-00212 | LOCK | 8001- | |
| 18 | 01010-81230 | BOLT | 8001- | |
| 19 | 01643-31232 | WASHER | 8001- | |
| 20 | 20T-70-81780 | SPACER, 1.0MM | 8001- | |
| 21 | 22M-70-22820 | PIN | 10201- | |
| 21 | \0\20S-70-71571 | PIN | 8001-10200 | |
| 22 | 04082-00212 | LOCK | 8001- | |
| 23 | 01010-81230 | BOLT | 8001- | |
| 24 | 01643-31232 | WASHER | 8001- | |
| 25 | 20T-70-81710 | SPACER, 1.0MM | 8001- |
