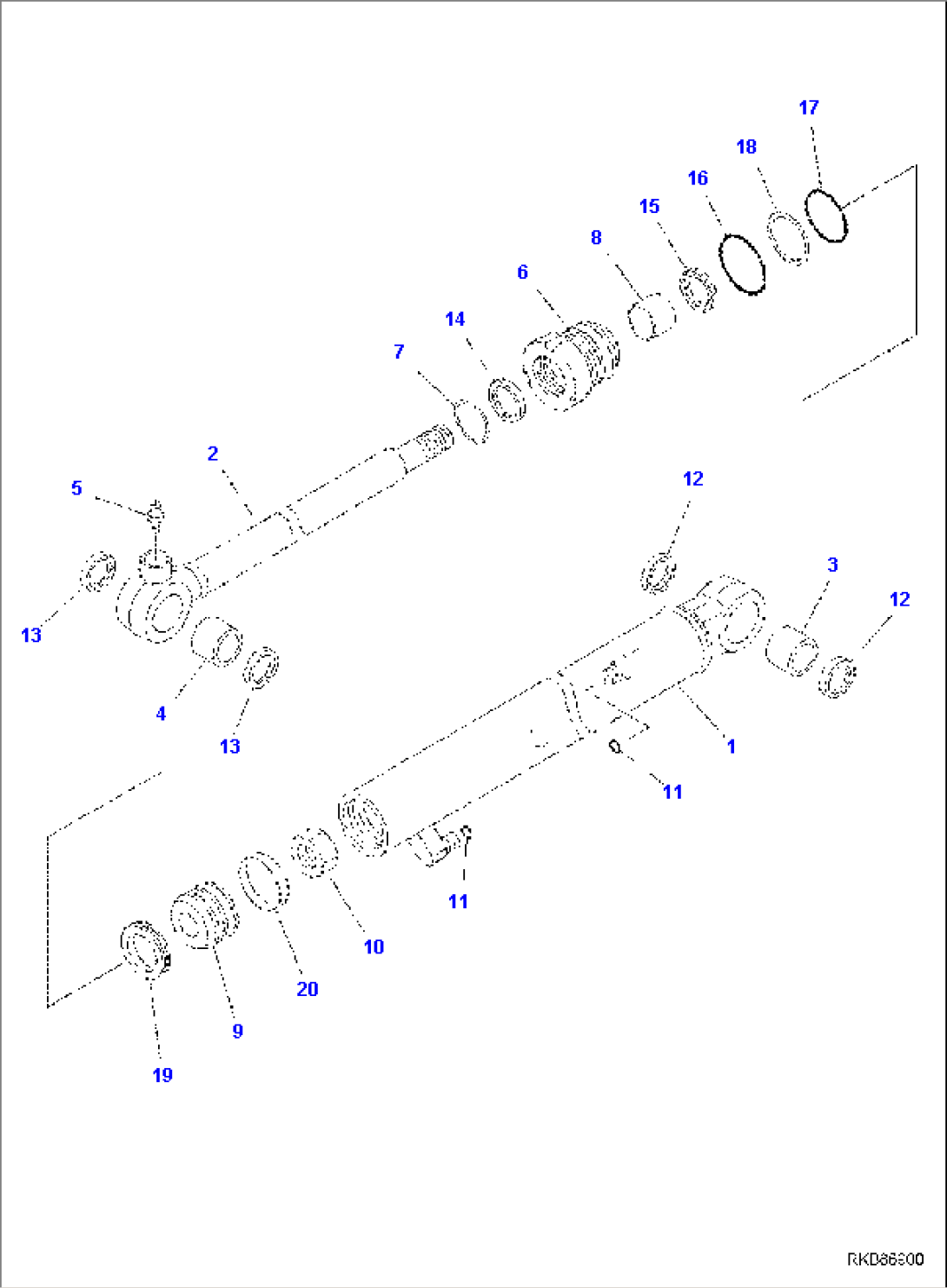

| Item | Part No. | Part Name | Qty | Serial No. |
| \0.99 | 707-00-0T130 | BUCKET CYLINDER, ASSEMBLY | F30001- | |
| 1 | 721-11-50590 | CYLINDER | F30001- | |
| 2 | 721-58-30620 | PISTON ROD | F30001- | |
| 3 | 07143-10302 | BUSHING | F30001- | |
| 4 | 07144-10302 | BUSHING | F30001- | |
| 5 | 07020-00000 | FITTING, GREASE | F30001- | |
| 6 | 707-29-50810 | HEAD, CYLINDER | F30001- | |
| 7 | 07179-12042 | RING, SNAP | F30001- | |
| 8 | 707-52-15050 | BUSHING | F30001- | |
| 9 | 707-36-50070 | PISTON | F30001- | |
| 10 | 707-67-22010 | NUT | F30001- | |
| \10.99 | 707-98-04740 | KIT, GASKET | F30001- | |
| 11 | 02896-11008 | O-RING | F30001- | |
| 12 | 07145-00030 | SEAL, DUST | F30001- | |
| 13 | 07145-00030 | SEAL, DUST | F30001- | |
| 14 | 707-56-30510 | SEAL, DUST | F30001- | |
| 15 | 707-51-30210 | PACKING, ROD | F30001- | |
| 16 | 07000-13048 | O-RING | F30001- | |
| 17 | 07000-13045 | O-RING | F30001- | |
| 18 | 707-35-52510 | RING, BACK-UP | F30001- | |
| 19 | 707-44-50180 | RING, PISTON | F30001- | |
| 20 | 10E-63-32390 | RING, WEAR | F30001- |
