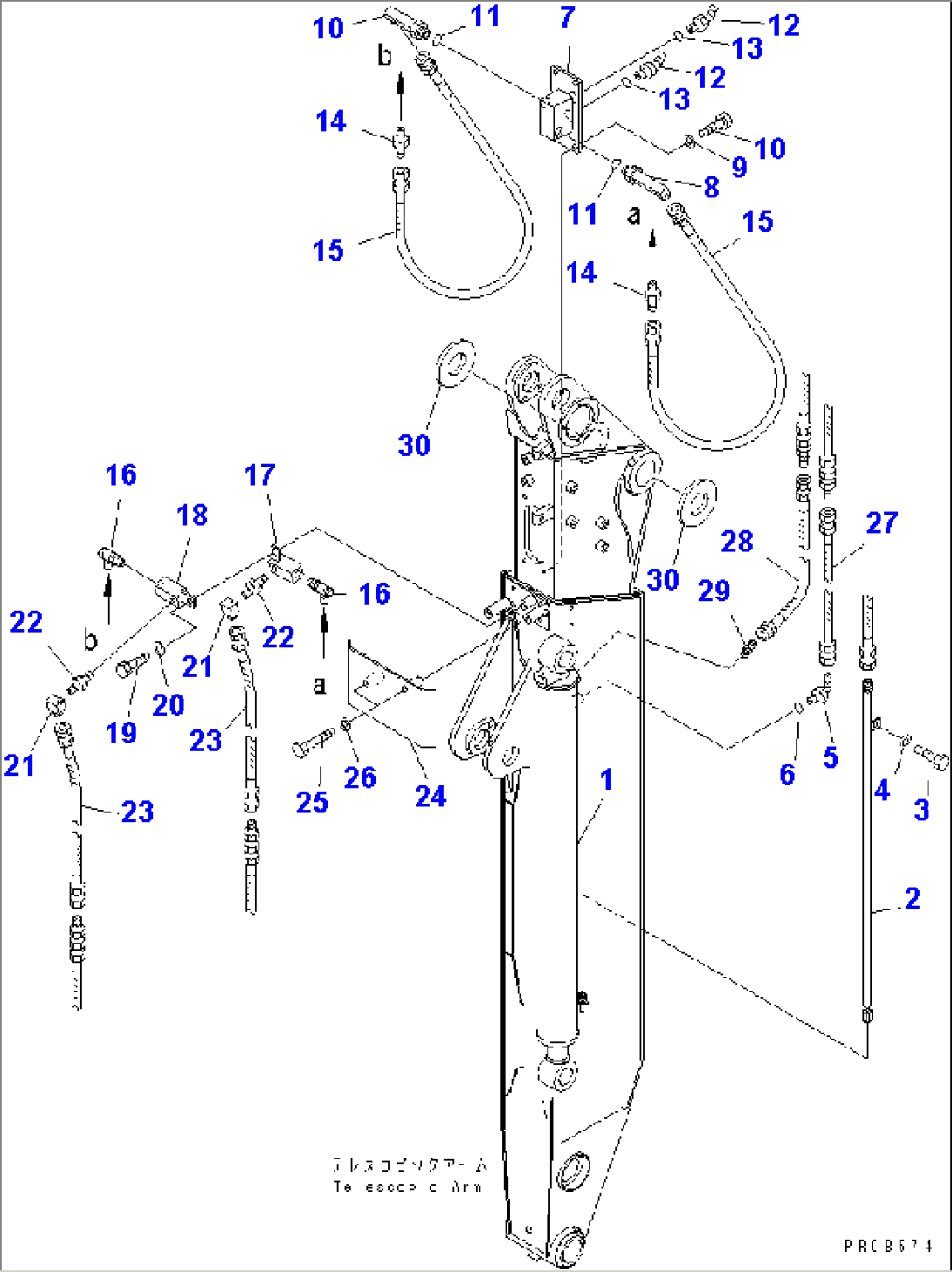

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20T-63-02290 | CYLINDER ASS'Y | 8617- | |
| 2 | 20T-957-1310 | TUBE | 8617- | |
| 3 | 01010-81020 | BOLT | 8617- | |
| 4 | 01643-31032 | WASHER | 8617- | |
| 5 | 07235-10315 | ELBOW | 8617- | |
| 6 | 07002-12034 | O-RING | 8617- | |
| 7 | 20U-957-2110 | COVER | 8617- | |
| 8 | 01010-81020 | BOLT | 8617- | |
| 9 | 01643-31032 | WASHER | 8617- | |
| 10 | 20X-62-21470 | ELBOW | 8617- | |
| 11 | 07002-12034 | O-RING | 8617- | |
| 12 | 07236-10422 | ELBOW | 8617- | |
| 13 | 07002-12034 | O-RING | 8617- | |
| 14 | 07238-10422 | CONNECTOR | 8617- | |
| 15 | 07086-20409 | HOSE | 8617- | |
| 16 | 21S-973-1420 | JOINT | 8617- | |
| 17 | 20T-957-1560 | ELBOW | 8617- | |
| 18 | 20T-957-1570 | BLOCK | 8617- | |
| 19 | 01010-81025 | BOLT | 8617- | |
| 20 | 01643-31032 | WASHER | 8617- | |
| 21 | 154-865-1160 | ELBOW | 8617- | |
| 22 | 07238-10422 | CONNECTOR | 8617- | |
| 23 | 201-62-58530 | HOSE | 8617- | |
| 24 | 20U-957-2310 | COVER | 8617- | |
| 25 | 01010-81060 | BOLT | 8617- | |
| 26 | 01643-31032 | WASHER | 8617- | |
| 27 | 07086-00304 | HOSE | 8617- | |
| 28 | 20U-957-2211 | HOSE | 8617- | |
| 29 | 21T-04-11580 | NIPPLE | 8617- | |
| 30 | 20U-70-25171 | SHIM | 8617- |
