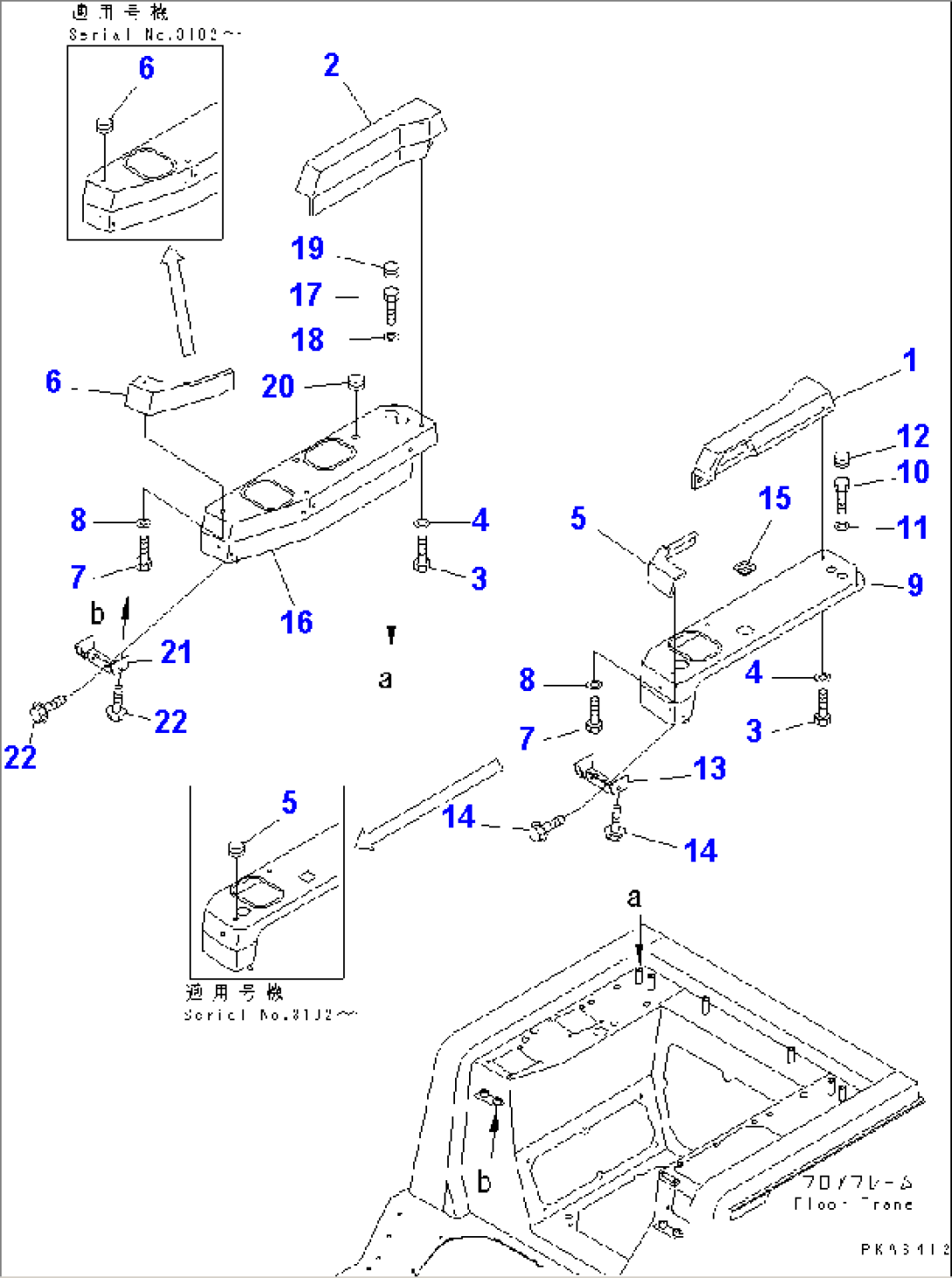

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-16532 | ARM REST,L.H. | 3034-4000 | |
| 2 | 14X-54-16542 | ARM REST,R.H. | 3034-4000 | |
| 3 | 01010-80812 | BOLT | 3034-4000 | |
| 4 | 01643-30823 | WASHER | 3034-4000 | |
| 5 | 09415-00706 | CAP,L.H. | 3102-4000 | |
| 5 | 14X-54-16611 | PAD,L.H. | 3034-3101 | |
| 6 | 09415-00706 | CAP | 3102-4000 | |
| 6 | 14X-54-16621 | PAD,R.H. | 3034-3101 | |
| 7 | 01010-80812 | BOLT | 3034-3101 | |
| 8 | 01643-30823 | WASHER | 3034-3101 | |
| 9 | 17A-54-16711 | COVER,L.H. | 3034-4000 | |
| 10 | 01010-81020 | BOLT | 3034-4000 | |
| 11 | 01643-31032 | WASHER | 3034-4000 | |
| 12 | 09415-02512 | CAP | 3034-4000 | |
| 13 | 14X-54-16442 | COVER,L.H. | 3034-4000 | |
| 14 | 01439-00814 | BOLT | 3034-4000 | |
| 15 | 14X-43-12940 | COVER | 3102-4000 | |
| 15 | 17A-43-25380 | COVER | 3034-3101 | |
| 16 | 14X-54-16912 | COVER,R.H. | 3034-4000 | |
| 17 | 01010-81020 | BOLT | 3034-4000 | |
| 18 | 01643-31032 | WASHER | 3034-4000 | |
| 19 | 09415-02512 | CAP | 3034-4000 | |
| 20 | 09415-01610 | CAP | 3034-4000 | |
| 21 | 14X-54-16452 | COVER,R.H. | 3034-4000 | |
| 22 | 01439-00814 | BOLT | 3034-4000 |
