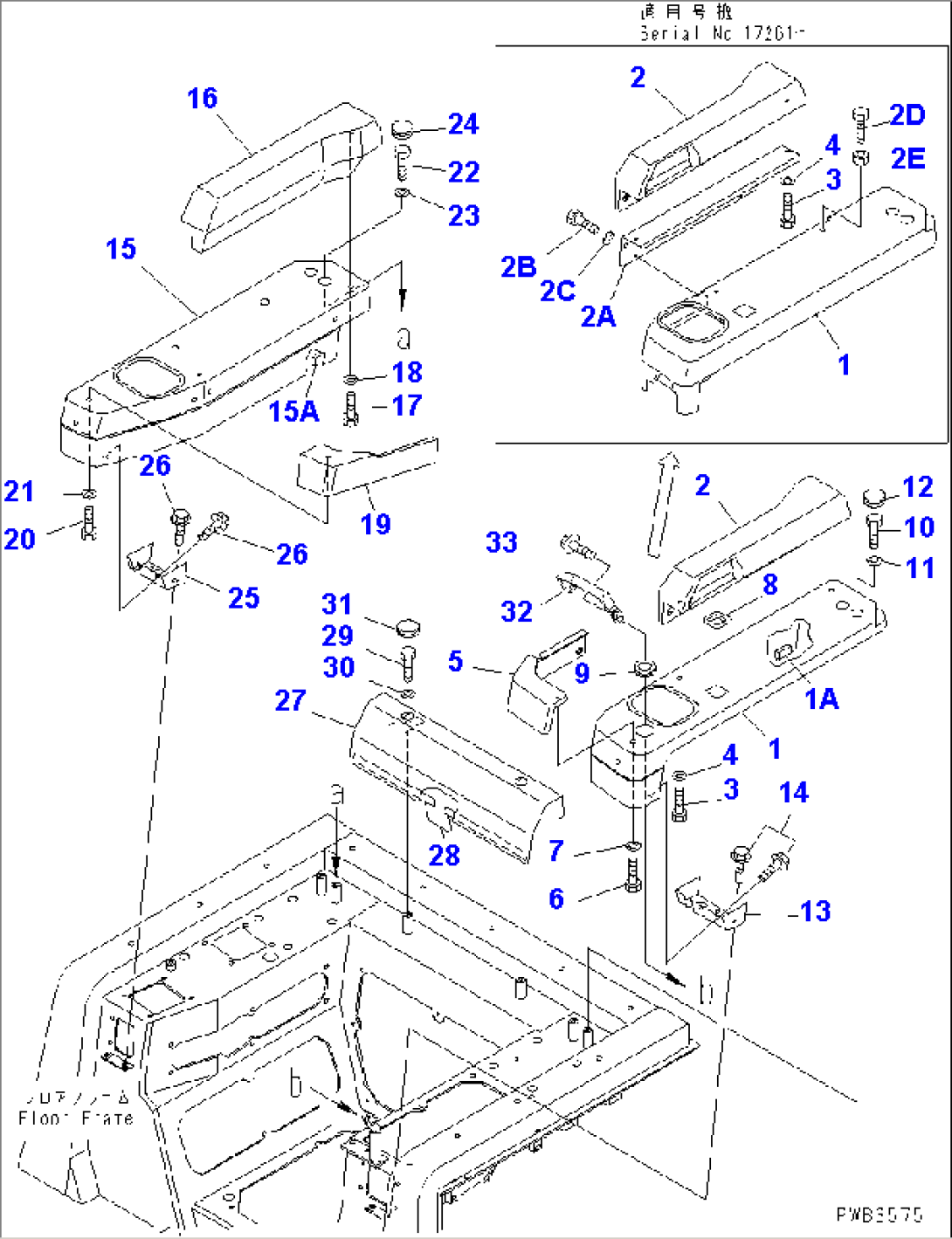

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-54-71211 | COVER | 17261- | |
| 1 | 124-54-58150 | COVER,L.H. | 17088-17260 | |
| 1 | 17A-54-16711 | COVER,L.H. | 17001-17087 | |
| 1A | 17A-54-16881 | SHEET (BONDED) | 17001- | |
| 2 | 14X-54-16532 | ARM REST,L.H. | 17001- | |
| 2A | 195-57-41140 | BRACKET | 17261- | |
| 2B | 01010-80820 | BOLT | 17261- | |
| 2C | 01643-30823 | WASHER | 17261- | |
| 2D | 01016-50806 | BOLT | 17261- | |
| 2E | 01580-10806 | NUT | 17261- | |
| 3 | 01010-80812 | BOLT | 17001- | |
| 4 | 01643-30823 | WASHER | 17001- | |
| 5 | 14X-54-16611 | PAD,L.H. | 17001- | |
| 6 | 01010-80812 | BOLT | 17001- | |
| 7 | 01643-30823 | WASHER | 17001- | |
| 8 | 17A-43-25380 | COVER | 17001- | |
| 9 | 14X-54-16660 | GROMMET | 17001- | |
| 10 | 01010-81020 | BOLT | 17001- | |
| 11 | 01643-31032 | WASHER | 17001- | |
| 12 | 09415-02512 | CAP | 17001- | |
| 13 | 195-54-69961 | COVER | 17261- | |
| 13 | 14X-54-16442 | COVER,L.H. | 17001-17260 | |
| 14 | 01439-00814 | BOLT | 17001- | |
| 15 | 17A-54-16870 | COVER,R.H. | 17001- | |
| 15A | 17A-54-16881 | SHEET (BONDED) | 17001- | |
| 16 | 14X-54-16542 | ARM REST,R.H. | 17001- | |
| 17 | 01010-80812 | BOLT | 17001- | |
| 18 | 01643-30823 | WASHER | 17001- | |
| 19 | 14X-54-16621 | PAD,R.H. | 17001- | |
| 20 | 01010-80812 | BOLT | 17001- | |
| 21 | 01643-30823 | WASHER | 17001- | |
| 22 | 01010-81020 | BOLT | 17001- | |
| 23 | 01643-31032 | WASHER | 17001- | |
| 24 | 09415-02512 | CAP | 17001- | |
| 25 | 14X-54-16452 | COVER,R.H. | 17001- | |
| 26 | 01439-00814 | BOLT | 17001- | |
| 27 | 17A-54-16891 | COVER | 17001- | |
| 28 | 17A-54-13320 | SEAL (BONDED) | 17001- | |
| 29 | 01010-81020 | BOLT | 17001- | |
| 30 | 01643-31032 | WASHER | 17001- | |
| 31 | 09415-02512 | CAP | 17001- | |
| 32 | 14X-54-16631 | HANDLE | 17001- | |
| 33 | 01439-01020 | BOLT | 17001- |
