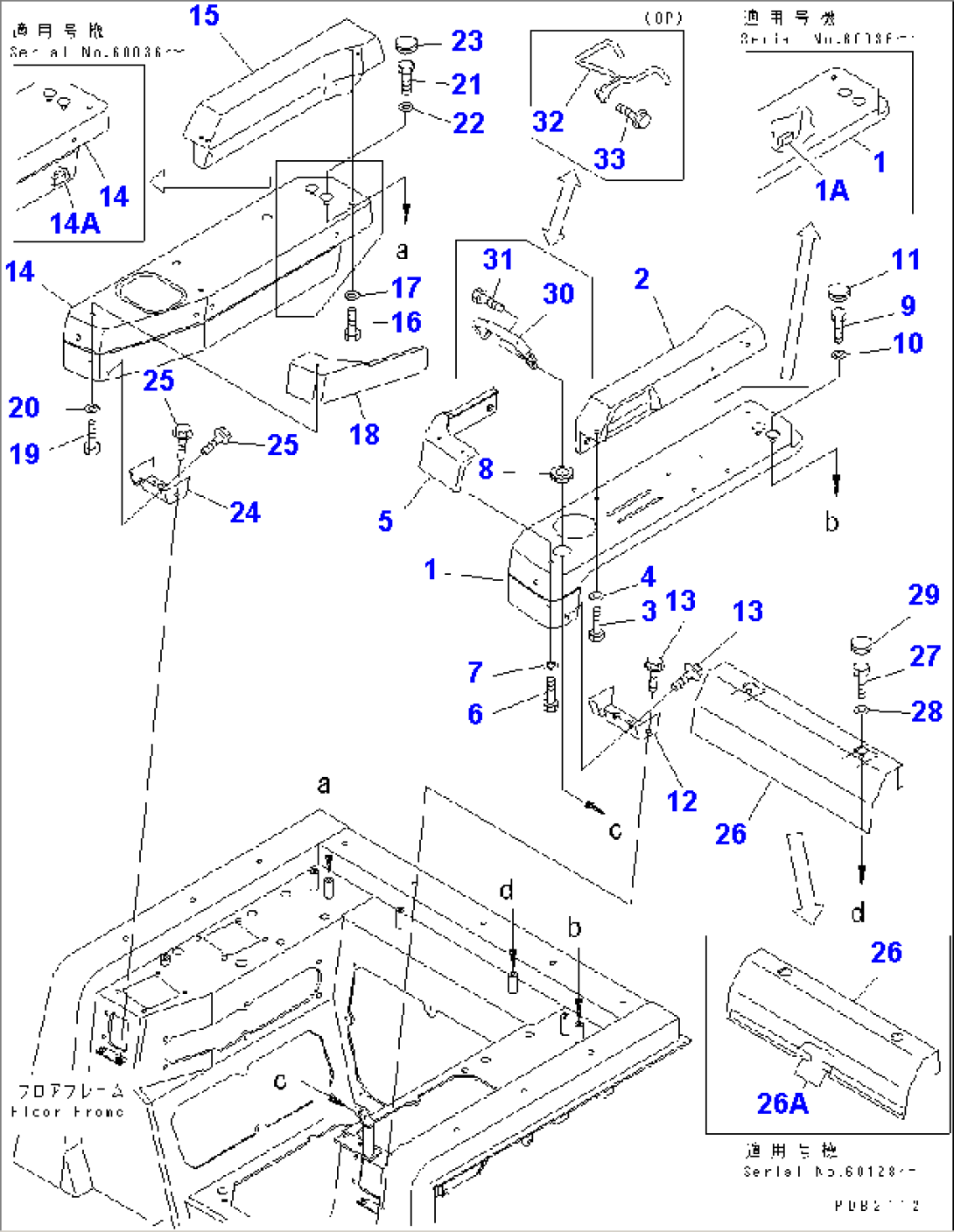

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-54-16811 | COVER | 60001- | |
| 1A | 17A-54-16881 | SHEET (BONDED) | 60036- | |
| 2 | 14X-54-16532 | ARM REST | 60001- | |
| 3 | 01010-80812 | BOLT | 60001- | |
| 4 | 01643-30823 | WASHER | 60001- | |
| 5 | 14X-54-16611 | PAD | 60001- | |
| 6 | 01010-80812 | BOLT | 60001- | |
| 7 | 01643-30823 | WASHER | 60001- | |
| 8 | 14X-54-16660 | GROMMET | 60001- | |
| 9 | 01010-81020 | BOLT | 60001- | |
| 10 | 01643-31032 | WASHER | 60001- | |
| 11 | 09415-02512 | CAP | 60001- | |
| 12 | 14X-54-16442 | COVER | 60001- | |
| 13 | 01439-00814 | BOLT | 60001- | |
| 14 | 17A-54-16870 | COVER | 60001- | |
| 14A | 17A-54-16881 | SHEET (BONDED) | 60036- | |
| 15 | 14X-54-16542 | ARM REST | 60001- | |
| 16 | 01010-80812 | BOLT | 60001- | |
| 17 | 01643-30823 | WASHER | 60001- | |
| 18 | 14X-54-16621 | PAD | 60001- | |
| 19 | 01010-80812 | BOLT | 60001- | |
| 20 | 01643-30823 | WASHER | 60001- | |
| 21 | 01010-81020 | BOLT | 60001- | |
| 22 | 01643-31032 | WASHER | 60001- | |
| 23 | 09415-02512 | CAP | 60001- | |
| 24 | 14X-54-16452 | COVER | 60001- | |
| 25 | 01439-00814 | BOLT | 60001- | |
| 26 | 17A-54-16891 | COVER | 60128- | |
| 26 | 14X-54-16481 | COVER | 60001-60127 | |
| 26A | 17A-54-13320 | SEAL (BONDED) | 60128- | |
| 27 | 01010-81020 | BOLT | 60001- | |
| 28 | 01643-31032 | WASHER | 60001- | |
| 29 | 09415-02512 | CAP | 60001- | |
| 30 | 14X-54-16631 | HANDLE | 60001- | |
| 31 | 01439-01020 | BOLT | 60001- | |
| 32 | 124-54-54451 | HANDLE,(OP) | 60001- | |
| 33 | 01439-01030 | BOLT,(OP) | 60001- |
