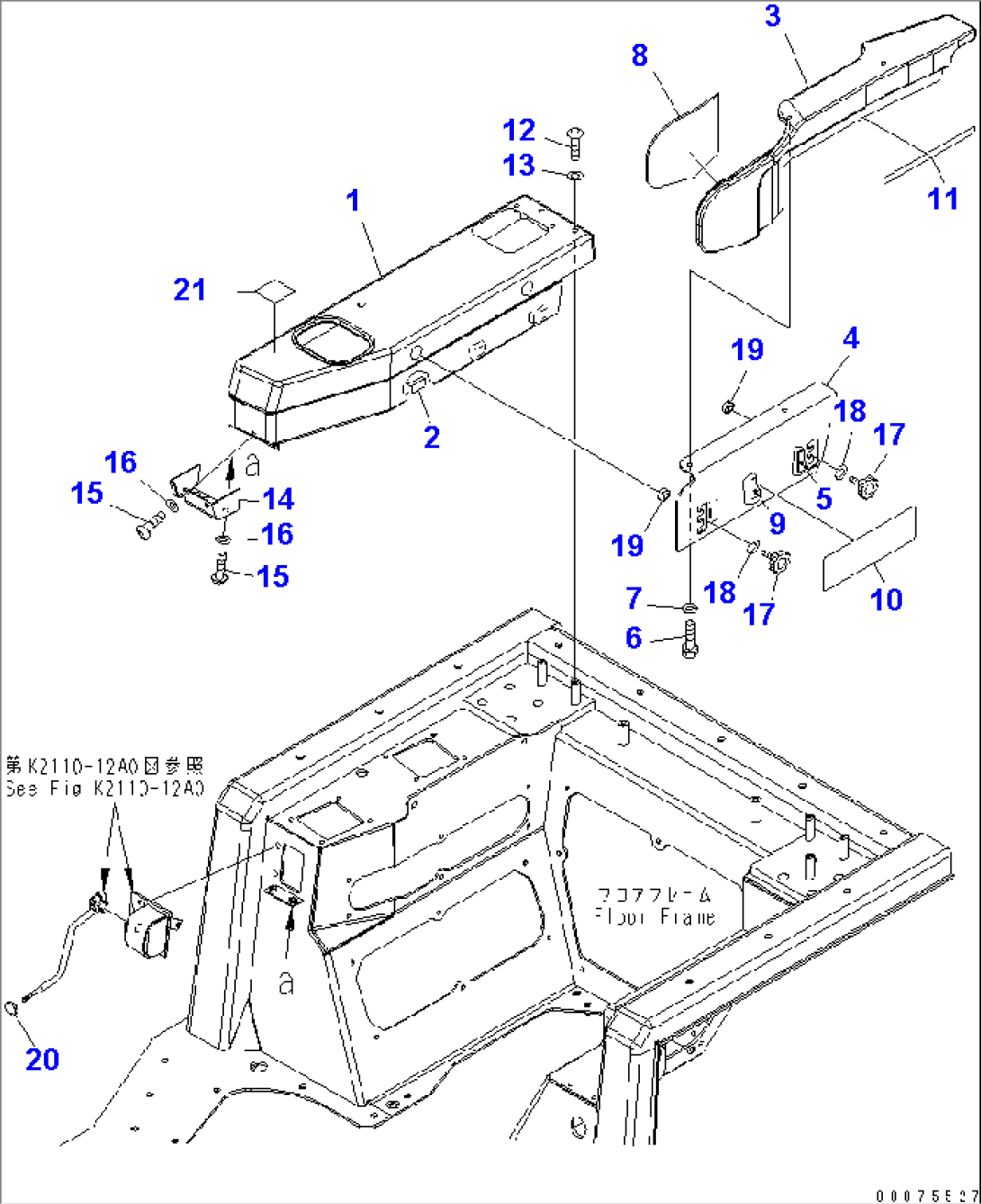

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-54-25840 | COVER | 10001- | |
| 2 | 17A-54-16881 | SHEET (BONDED) | 10001- | |
| 14X-54-36310 | ARM REST ASS'Y | 10425- | ||
| \1\124-54-68410 | ARM REST ASS'Y | 10001-10424 | ||
| 3 | \6\ | REST,ARM, R.H. | 10425- | |
| 3 | \6\ | REST,ARM, R.H. | 10001-10424 | |
| 4 | \6\ | PLATE,R.H. | 10425- | |
| 4 | \6\ | PLATE,R.H. | 10001-10424 | |
| 5 | 134-54-66240 | SHEET (BONDED) | 10001- | |
| 6 | 01010-80820 | BOLT | 10001- | |
| 7 | 01643-30823 | WASHER | 10001- | |
| 8 | 14X-54-36340 | SHEET (BONDED) | 10425- | |
| 9 | 17A-43-42310 | RUBBER (BONDED) | 10425- | |
| 10 | 134-54-66190 | PLATE | 10001- | |
| 11 | 134-54-66290 | PLATE | 10001- | |
| 12 | 01245-00825 | SCREW | 10001- | |
| 13 | 01643-70823 | WASHER | 10001- | |
| 14 | 14X-54-16452 | COVER | 10001- | |
| 15 | 01245-00816 | SCREW | 10001- | |
| 16 | 01643-70823 | WASHER | 10001- | |
| 17 | 195-54-68760 | KNOB | 10001- | |
| 18 | 01643-31032 | WASHER | 10001- | |
| 19 | 17A-54-25610 | SPACER | 10001- | |
| 20 | 09304-10835 | KNOB | 10001- | |
| 21 | 14X-98-11260 | PLATE, OPERATING | 10001- |
