| Item | Part No. | Part Name | Qty | Serial No. |

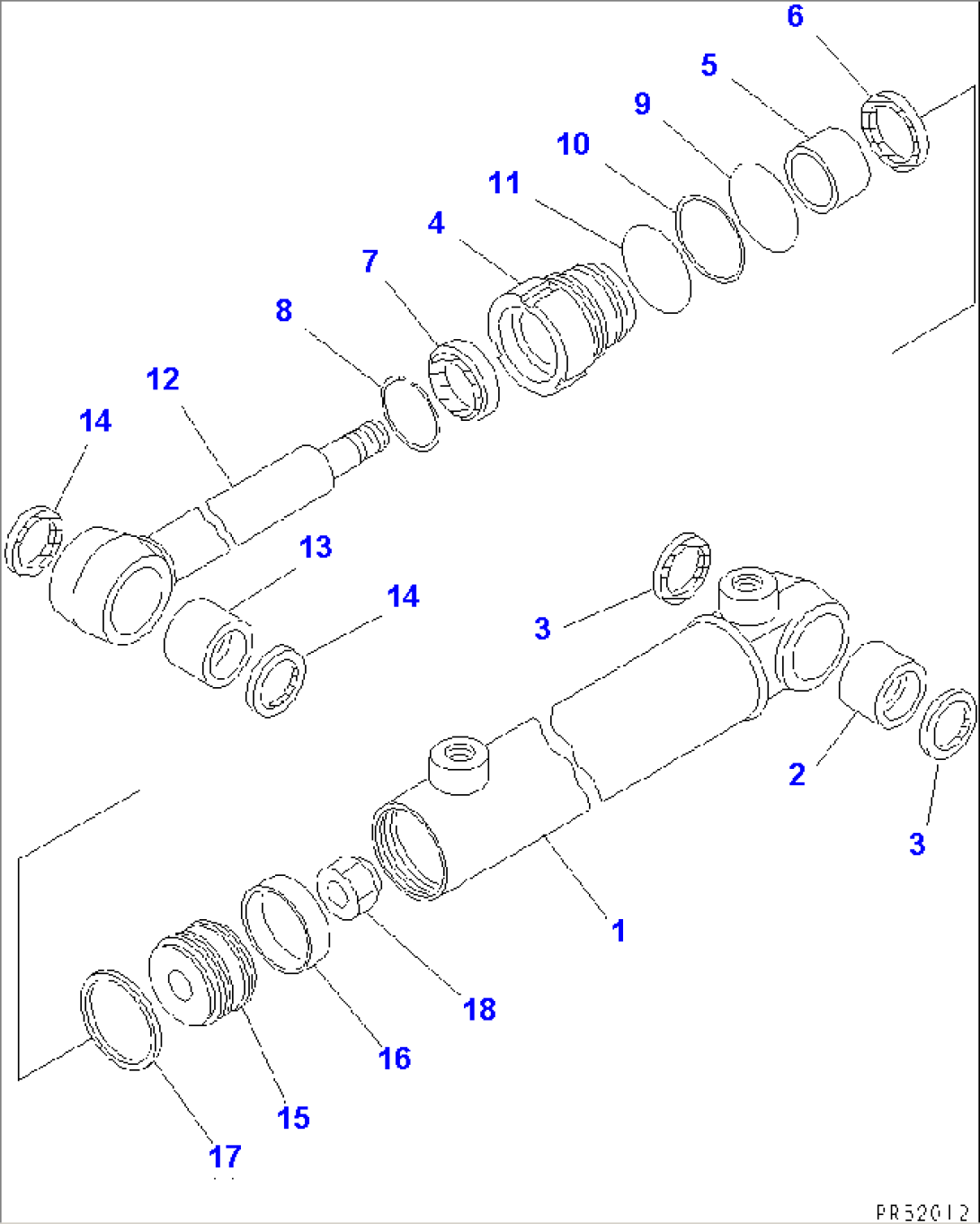

| 26A-63-01030 | CYLINDER ASS'Y,ARTICULATE | 1001- | ||
| 1 | 26A-63-62040 | CYLINDER | 1001- | |
| 2 | 07143-10304 | BUSHING | 1001- | |
| 3 | 07145-00035 | SEAL,DUST (KIT) | 1001- | |
| 4 | 707-29-60830 | HEAD,CYLINDER | 1001- | |
| 5 | 07177-03025 | BUSHING | 1001- | |
| 6 | 707-51-30210 | PACKING,ROD (KIT) | 1001- | |
| 7 | 707-56-30510 | SEAL,DUST (KIT) | 1001- | |
| 8 | 07179-12042 | RING,SNAP | 1001- | |
| 9 | 07000-12055 | O-RING (KIT) | 1001- | |
| 10 | 07146-02056 | RING,BACK-UP (KIT) | 1001- | |
| 11 | 07000-02060 | O-RING (KIT) | 1001- | |
| 12 | 26A-63-62020 | ROD,PISTON | 1001- | |
| 13 | 07143-10404 | BUSHING | 1001- | |
| 14 | 07145-00040 | SEAL,DUST | 1001- | |
| 15 | 707-36-60970 | PISTON | 1001- | |
| 16 | 707-39-60190 | RING,WEAR (KIT) | 1001- | |
| 17 | 707-44-60070 | RING,PISTON (KIT) | 1001- | |
| 18 | 07165-12022 | NUT,NYLON | 1001- | |
| SERVICE KIT | ||||
| KIT | 707-98-11140 | SERVICE KIT,ARTICULATE CYLINDER | 1001- |
