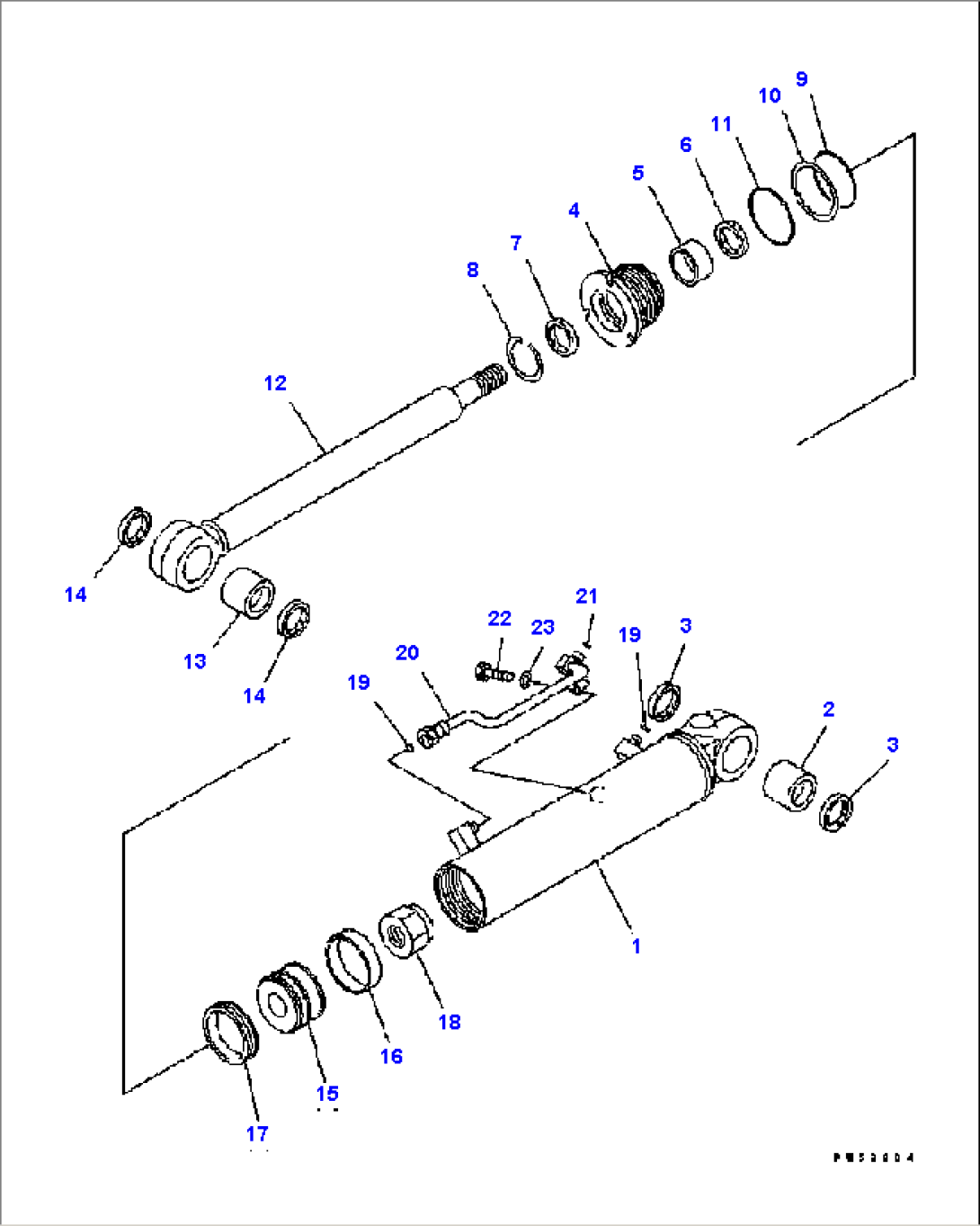

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XC170) | CYLINDER GROUP {L.H.} | B15001- | |
| (\8\707-00-X7G30) | CYLINDER GROUP {L.H.} (FINAL COATING) | B15001- | ||
| (\8\707-00-XC180) | CYLINDER GROUP {R.H.} | B15001- | ||
| (\8\707-00-X7G40) | CYLINDER GROUP{R.H.} (FINAL COATING) | B15001- | ||
| 707-00-0C170 | CYLINDER ASS'Y {L.H.} | B15001- | ||
| 707-00-0C180 | CYLINDER ASS'Y {R.H.} | B15001- | ||
| 1 | 721-11-90370 | CYLINDER {L.H.} | B15001- | |
| 721-11-90380 | CYLINDER {R.H.} | B15001- | ||
| 2 | 07143-10505 | BUSHING | B15001- | |
| 3 | 07145-00050 | SEAL {DUST} (KIT) | B15001- | |
| 4 | 707-29-90730 | HEAD {CYLINDER} | B15001- | |
| 5 | 07177-05030 | BUSHING | B15001- | |
| 6 | 707-51-50211 | PACKING {ROD} (KIT) | B15001- | |
| 7 | 176-63-92240 | SEAL {DUST} (KIT) | B15001- | |
| 8 | 07179-12062 | RING {SNAP} | B15001- | |
| 9 | 07000-12085 | O-RING (KIT) | B15001- | |
| 10 | 07146-02086 | RING {BACK-UP} (KIT) | B15001- | |
| 11 | 07000-12090 | O-RING (KIT) | B15001- | |
| 12 | 721-58-50500 | ROD {PISTON} | B15001- | |
| 13 | 07143-10505 | BUSHING | B15001- | |
| 14 | 07145-00050 | SEAL {DUST} (KIT) | B15001- | |
| 15 | 707-36-90930 | PISTON | B15001- | |
| 16 | 07156-00912 | RING {WEAR} (KIT) | B15001- | |
| 17 | 707-44-90070 | RING {PISTON} (KIT) | B15001- | |
| 18 | 07165-13638 | NUT {NYLON} | B15001- | |
| 19 | 02896-11009 | O-RING (KIT) | B15001- | |
| 20 | 707-86-38940 | TUBE {L.H.} | B15001- | |
| 707-86-38950 | TUBE {R.H.} | B15001- | ||
| 21 | 02896-11009 | O-RING (KIT) | B15001- | |
| 22 | 01010-81020 | BOLT | B15001- | |
| 23 | 01643-31032 | WASHER | B15001- | |
| SERVICE KIT | ||||
| K | 707-98-25680 | SERVICE KIT {ARTICULATE CYLINDER} | B15001- |
