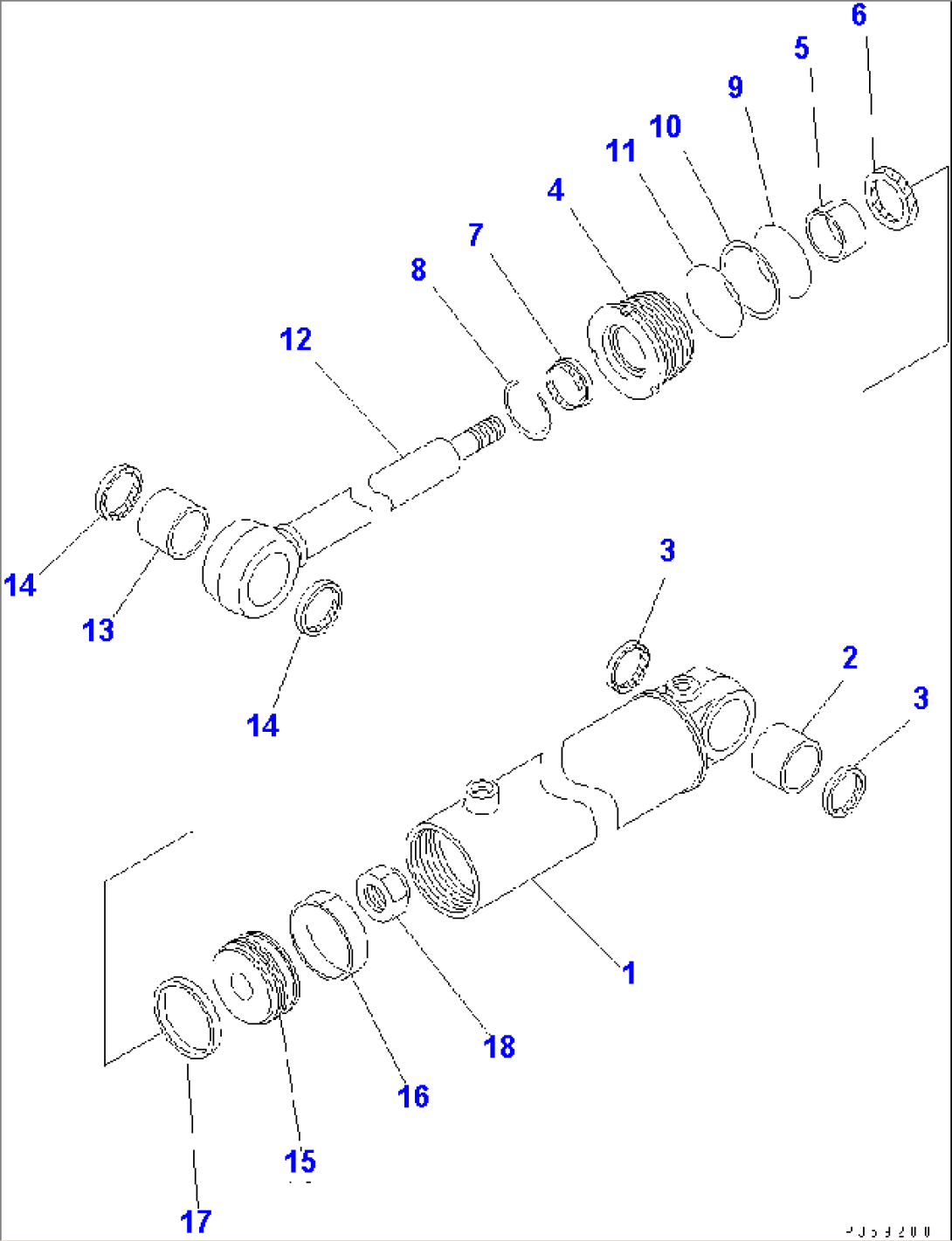

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-63-62101 | CYLINDER ASS'Y | 4001-4076 | ||
| 1 | 23B-63-62140 | CYLINDER | 4001-4076 | |
| 2 | 07143-10505 | BUSHING | 4001-@ | |
| 3 | 07145-00050 | SEAL,DUST | 4001-@ | |
| 4 | 707-29-90930 | HEAD,CYLINDER | 4001-4076 | |
| 5 | 07177-05030 | BUSHING | 4001-@ | |
| 6 | 707-51-50210 | PACKING,ROD | 4001-4076 | |
| 7 | 176-63-92240 | SEAL,DUST | 4001-@ | |
| 8 | 07179-12062 | RING,SNAP | 4001-@ | |
| 9 | 07000-12085 | O-RING | 4001-@ | |
| 10 | 07001-02085 | RING,BACK-UP | 4001-4076 | |
| 11 | 07000-02090 | O-RING | 4001-@ | |
| 12 | 23B-63-62120 | ROD,PISTON | 4001-4076 | |
| 13 | 07143-10505 | BUSHING | 4001-@ | |
| 14 | 07145-00050 | SEAL,DUST | 4001-@ | |
| 15 | 707-36-90910 | PISTON | 4001-4076 | |
| 16 | 07155-00925 | RING,WEAR | 4001-4076 | |
| 17 | 707-44-90070 | RING,PISTON | 4001-@ | |
| 18 | 07165-13033 | NUT,NYLON | 4001-@ |
