| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-46-13680 | Bar | 5001- | |
| 2 | 56B-46-13810 | Pin | 5001- | |
| 3 | 04050-10070 | Pin, Cotter | 5001- | |
| 4 | 56B-46-13820 | Pin | 5001- | |
| 5 | 426-46-12280 | Pin, Linch | 5001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 3m0 s/n 5129 up ( 40°c spec.)
- Frame and its related parts
- Articulate lock bar (#5001 )
Поиск по каталогу

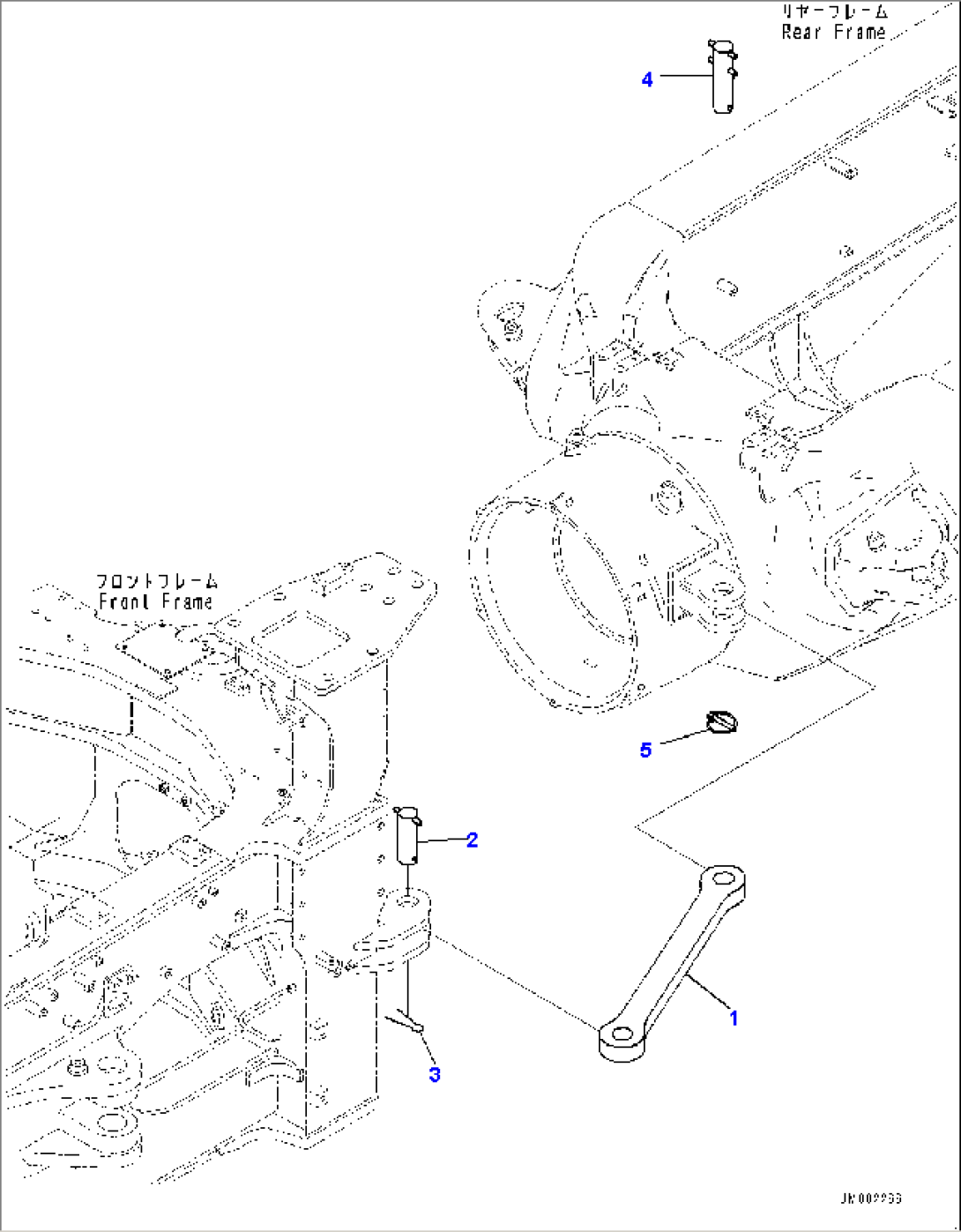

Articulate Lock Bar (#5001-)
