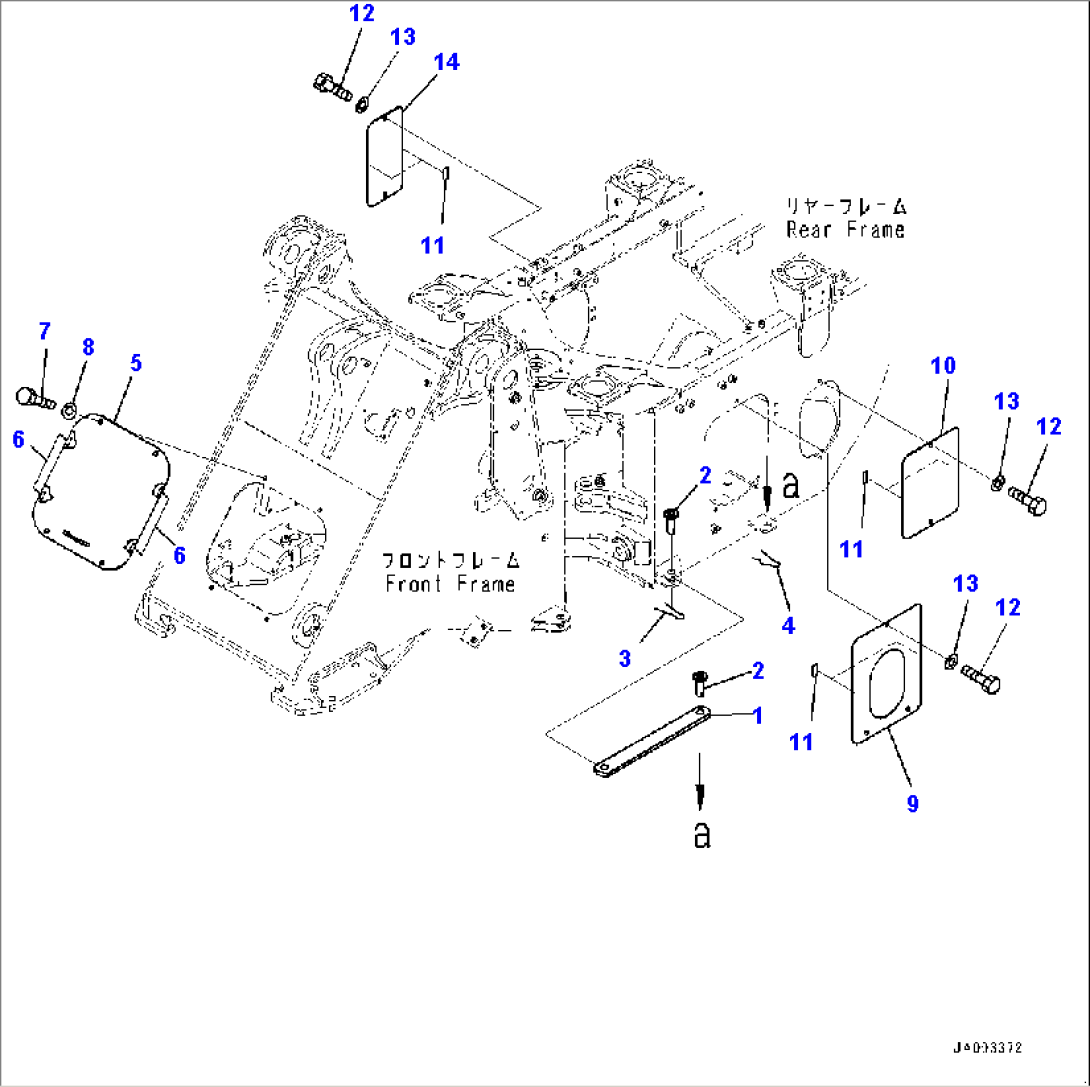

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-46-24110 | Bar | C10001- | |
| 2 | 416-46-12230 | Pin | C10001- | |
| 3 | 04050-18055 | Pin, Cotter | C10001- | |
| 4 | 415-46-11360 | Pin, Snap | C10001- | |
| 5 | 417-46-31331 | Cover | C10001- | |
| 6 | 421-09-21420 | Sheet,Bonded | C10001- | |
| 7 | 01010-81230 | Bolt | C10001- | |
| 8 | 01643-31232 | Washer | C10001- | |
| 9 | 417-46-34411 | Cover,LHS | C10001- | |
| 10 | 418-46-34421 | Cover,LHS | C10001- | |
| 11 | 421-09-21420 | Sheet,Bonded | C10001- | |
| 12 | 01010-81225 | Bolt | C10001- | |
| 13 | 01643-31232 | Washer | C10001- | |
| 14 | 417-46-34432 | Cover,RHS | C10001- |
