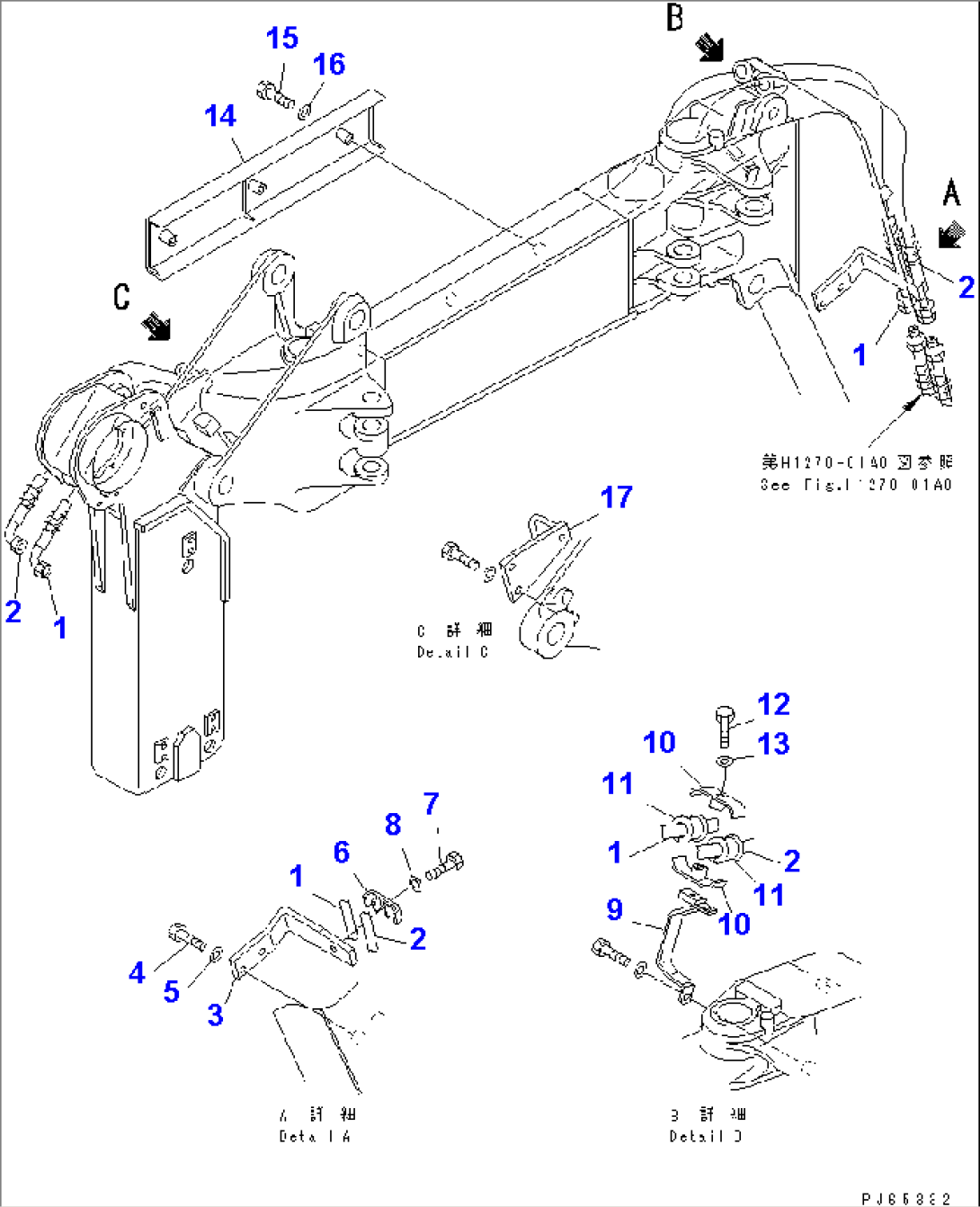

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20C-970-3170 | HOSE | 10001- | |
| 2 | 20C-970-3180 | HOSE | 10001- | |
| 3 | 21U-973-3371 | BRACKET | 10001- | |
| 4 | 01010-81030 | BOLT | 10001- | |
| 5 | 01643-31032 | WASHER | 10001- | |
| 6 | 21U-973-3381 | CLAMP | 10001- | |
| 7 | 01010-81035 | BOLT | 10001- | |
| 8 | 01643-31032 | WASHER | 10001- | |
| 9 | 21U-973-3570 | BRACKET | 10001- | |
| 10 | 07094-30518 | CLAMP | 10001- | |
| 11 | 07095-00526 | CUSHION | 10001- | |
| 12 | 01010-81065 | BOLT | 10001- | |
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 20C-973-3230 | COVER | 10001- | |
| 15 | 01010-81045 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 20C-970-3190 | CLAMP | 10001- |
