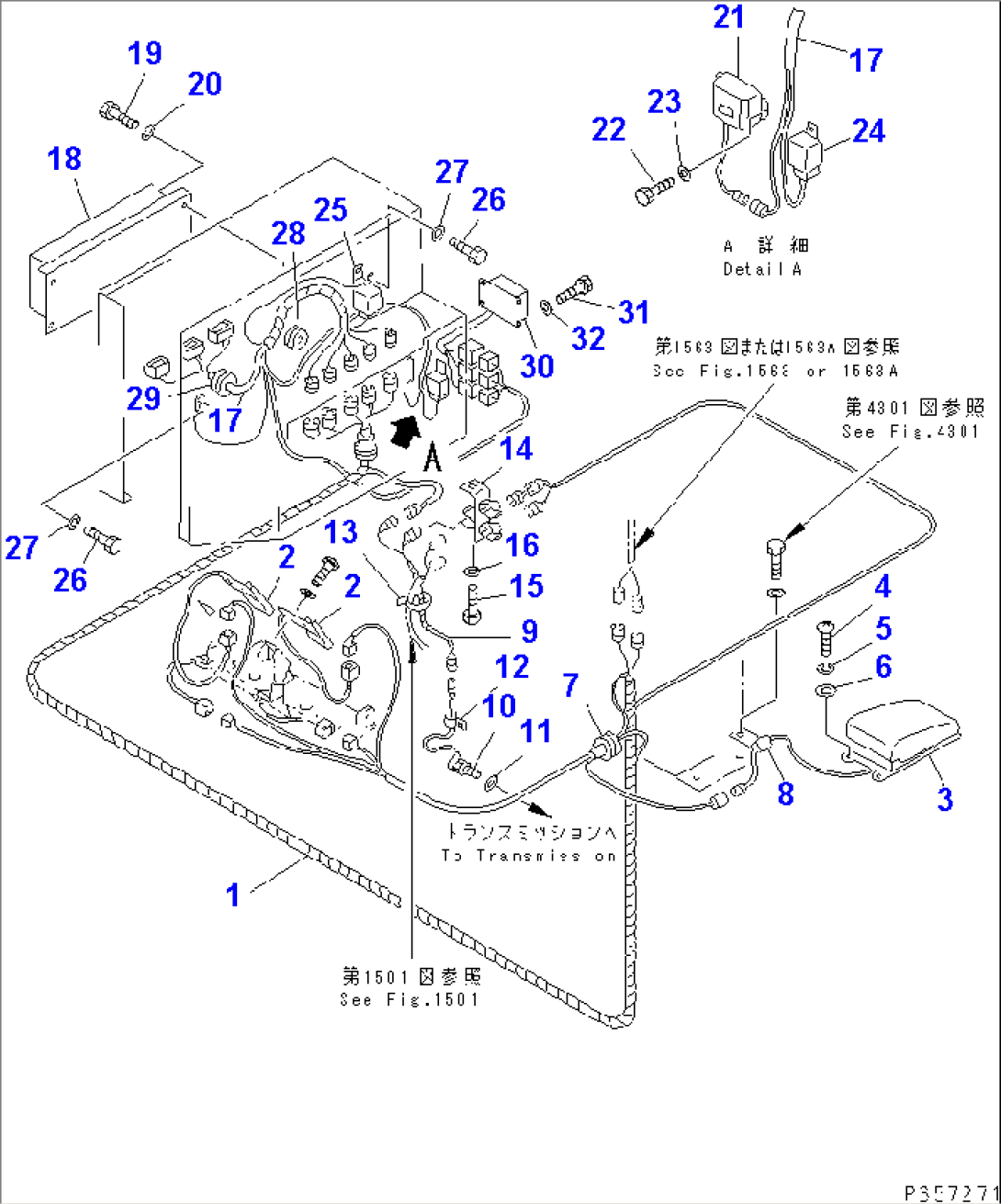

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23F-843-1231 | HARNESS | 11002-12013 | |
| 2 | 7861-92-2410 | SENSOR,FLOAT | 11001-12013 | |
| 3 | 234-843-2170 | SWITCH,FOOT¤ AUTO BLADE | 11001-@ | |
| 4 | 01220-40410 | SCREW | 11001-@ | |
| 5 | 01601-20410 | WASHER,SPRING | 11001-@ | |
| 6 | 01641-20405 | WASHER | 11001-@ | |
| 7 | 08037-03614 | GROMMET | 11001-@ | |
| 8 | 08036-01814 | CLIP | 11001-@ | |
| 9 | 23F-843-1261 | HARNESS | 11002-@ | |
| 10 | 7819-11-2310 | SENSOR,SPEED | 11001-@ | |
| 11 | 07005-02216 | GASKET | 11001-@ | |
| 12 | 08052-11711 | CLIP | 11001-@ | |
| 13 | 08034-00519 | BAND | 11001-@ | |
| 14 | 23F-843-1150 | BRACKET | 11001-@ | |
| 15 | 01010-51016 | BOLT | 11001-@ | |
| 16 | 01643-31032 | WASHER | 11001-@ | |
| 17 | 23F-843-1212 | HARNESS | 11027-12013 | |
| 18 | 7821-23-2100 | CONTROLLER | 11001-@ | |
| 19 | 01010-51020 | BOLT | 11001-@ | |
| 20 | 01643-31032 | WASHER | 11001-@ | |
| 21 | 7821-23-1200 | REGULATOR | 11001-@ | |
| 22 | 01010-50612 | BOLT | 11002-@ | |
| 23 | 01643-30623 | WASHER | 11001-@ | |
| 24 | 287-06-16410 | RELAY,AUTO MODE | 11001-@ | |
| 25 | 287-06-16410 | RELAY,AUTO MODE STOP | 11001-@ | |
| 26 | 01010-50612 | BOLT | 11001-@ | |
| 27 | 01643-30623 | WASHER | 11001-@ | |
| 28 | 08037-03614 | GROMMET | 11001-@ | |
| 29 | 08037-05016 | GROMMET | 11001-@ | |
| 30 | 7861-73-3000 | CONTROLLER ASS'Y | 11027-12013 | |
| 31 | 01010-50612 | BOLT | 11027-12013 | |
| 32 | 01643-30623 | WASHER | 11027-12013 |
