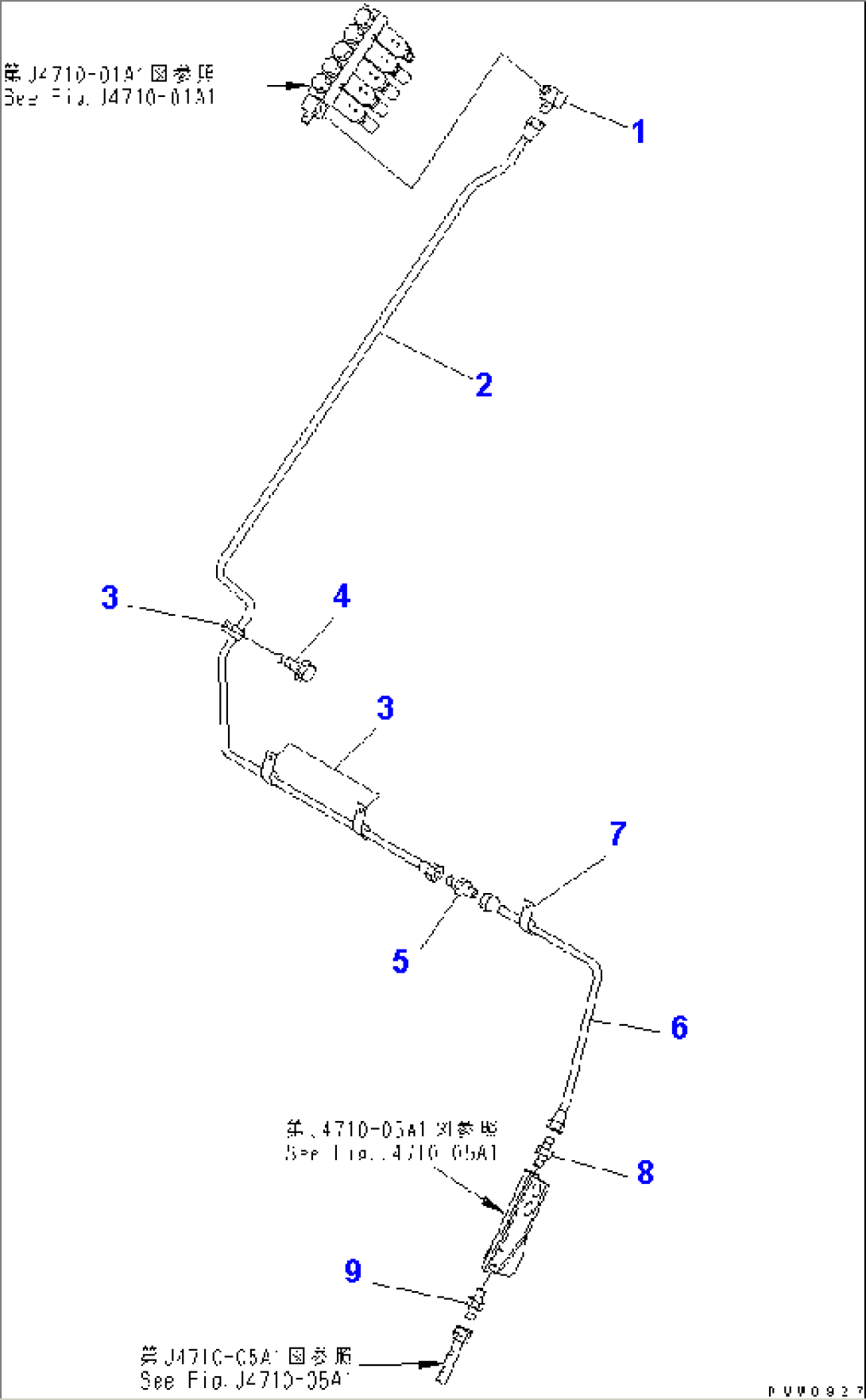

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-09-12550 | ELBOW | 50001- | |
| 2 | 428-S95-2411 | TUBE | 50019- | |
| \0\428-S95-2410 | TUBE | 50001-50018 | ||
| 3 | 04434-51512 | CLIP | 50001- | |
| 4 | 01435-01220 | BOLT | 50001- | |
| 5 | 421-09-12830 | CONNECTOR | 50001- | |
| 6 | 428-S95-2391 | TUBE | 50019- | |
| \0\428-S95-2390 | TUBE | 50001-50018 | ||
| 7 | 04434-51512 | CLIP | 50001- | |
| 8 | 421-09-12730 | CONNECTOR | 50001- | |
| 9 | 07238-10422 | CONNECTOR | 50001- |
