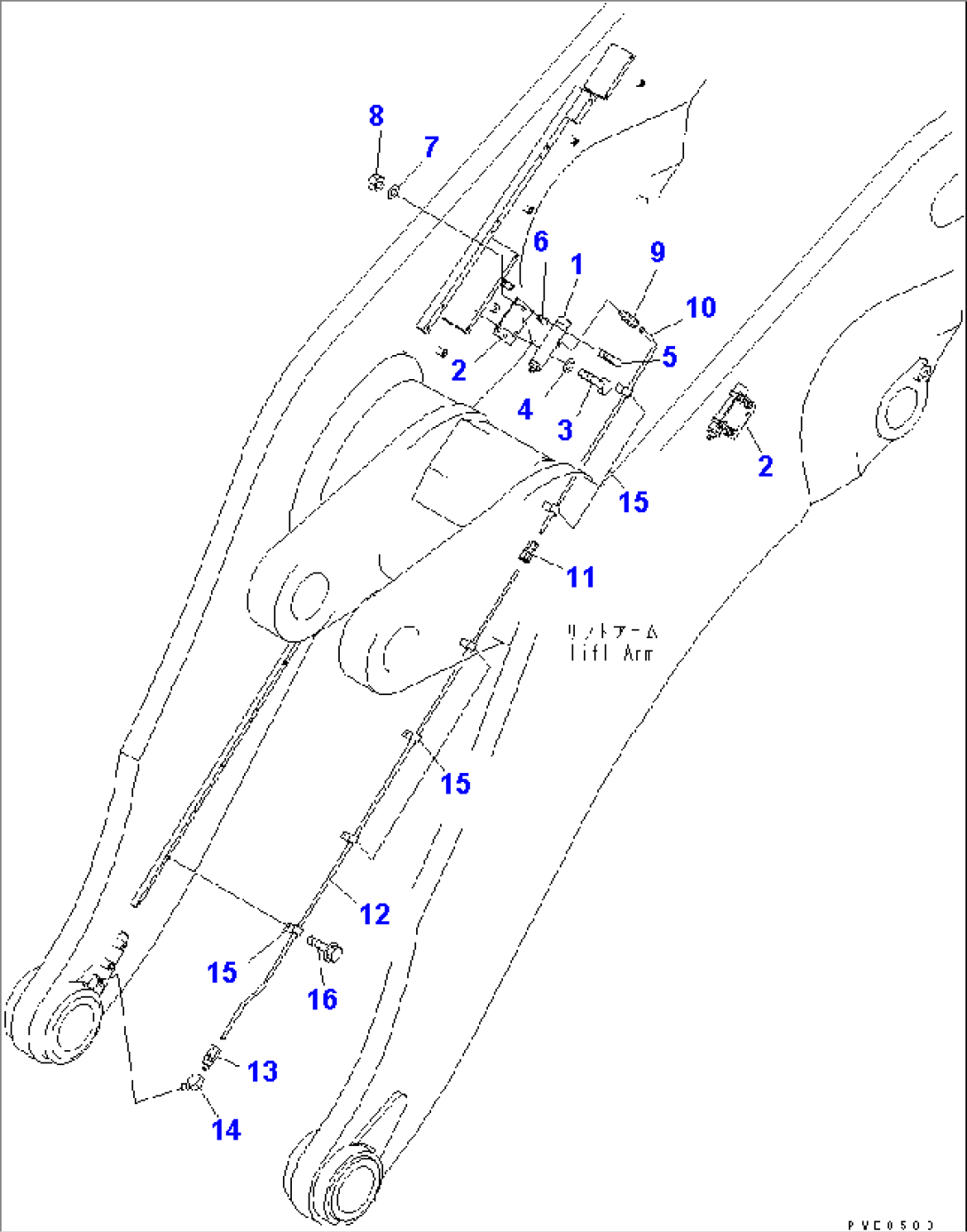

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-S95-3180 | INJECTOR ASS'Y | 52001- | |
| 2 | 427-S95-3272 | BRACKET | 52001- | |
| 3 | 01010-81225 | BOLT | 52001- | |
| 4 | 01643-31232 | WASHER | 52001- | |
| 5 | 07283-35158 | CLIP | 52001- | |
| 6 | 07283-55161 | SEAT | 52001- | |
| 7 | 01643-31032 | WASHER | 52001- | |
| 8 | 01597-01009 | NUT | 52001- | |
| 9 | 427-S95-3370 | CONNECTOR | 52001- | |
| 10 | 427-S95-4710 | TUBE | 52001- | |
| 11 | 427-S95-2430 | UNION | 52001- | |
| 12 | 427-S95-1211 | TUBE | 52001- | |
| 13 | 561-95-63310 | CONNECTOR | 52001- | |
| 14 | 427-S95-1370 | ELBOW | 52001- | |
| 15 | 425-70-13120 | CLIP | 52001- | |
| 16 | 01435-01220 | BOLT | 52001- |
