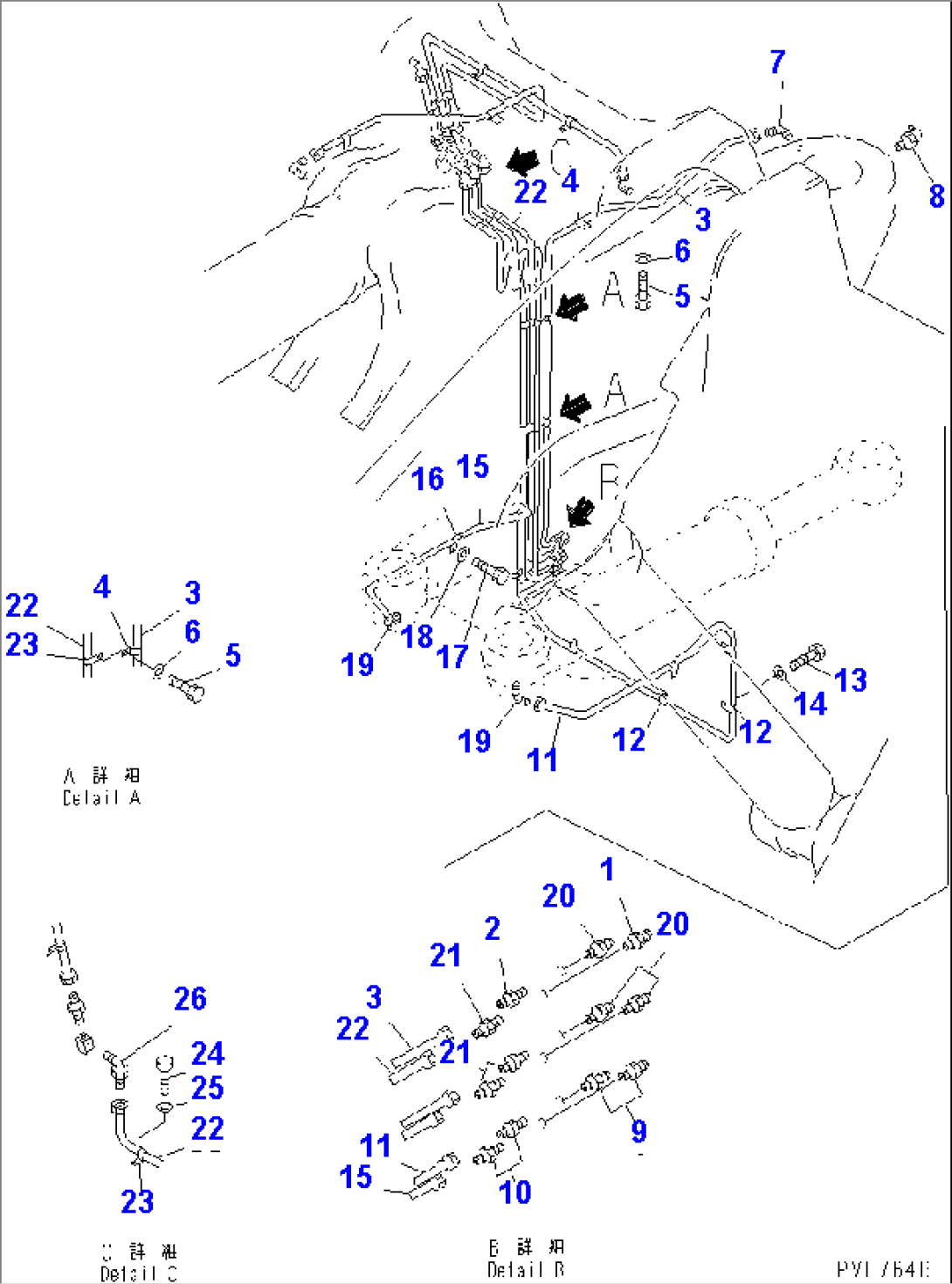

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00000 | FITTING,GREASE | 52001- | |
| 2 | 07214-70710 | CONNECTOR | 52001- | |
| 3 | 427-46-16221 | TUBE | 52001- | |
| 4 | 425-70-13120 | CLIP | 52001- | |
| 5 | 01010-81020 | BOLT | 52001- | |
| 6 | 01643-31032 | WASHER | 52001- | |
| 7 | 07217-70712 | ELBOW | 52001- | |
| 8 | 07020-00675 | FITTING,GREASE | 52001- | |
| 9 | 07020-00000 | FITTING,GREASE | 52001- | |
| 10 | 07214-70710 | CONNECTOR | 52001- | |
| 11 | 427-63-14140 | TUBE | 52001- | |
| 12 | 425-70-13120 | CLIP | 52001- | |
| 13 | 01010-81020 | BOLT | 52001- | |
| 14 | 01643-31032 | WASHER | 52001- | |
| 15 | 427-63-14150 | TUBE | 52001- | |
| 16 | 425-70-13120 | CLIP | 52001- | |
| 17 | 01010-81020 | BOLT | 52001- | |
| 18 | 01643-31032 | WASHER | 52001- | |
| 19 | 07217-70712 | ELBOW | 52001- | |
| 20 | 07020-00000 | FITTING,GREASE | 52001- | |
| 21 | 07214-70710 | CONNECTOR | 52001- | |
| 22 | 427-70-24140 | TUBE | 52001- | |
| 23 | 425-70-13120 | CLIP | 52001- | |
| 24 | 01010-81020 | BOLT | 52001- | |
| 25 | 01643-31032 | WASHER | 52001- | |
| 26 | 07217-70712 | ELBOW | 52001- |
