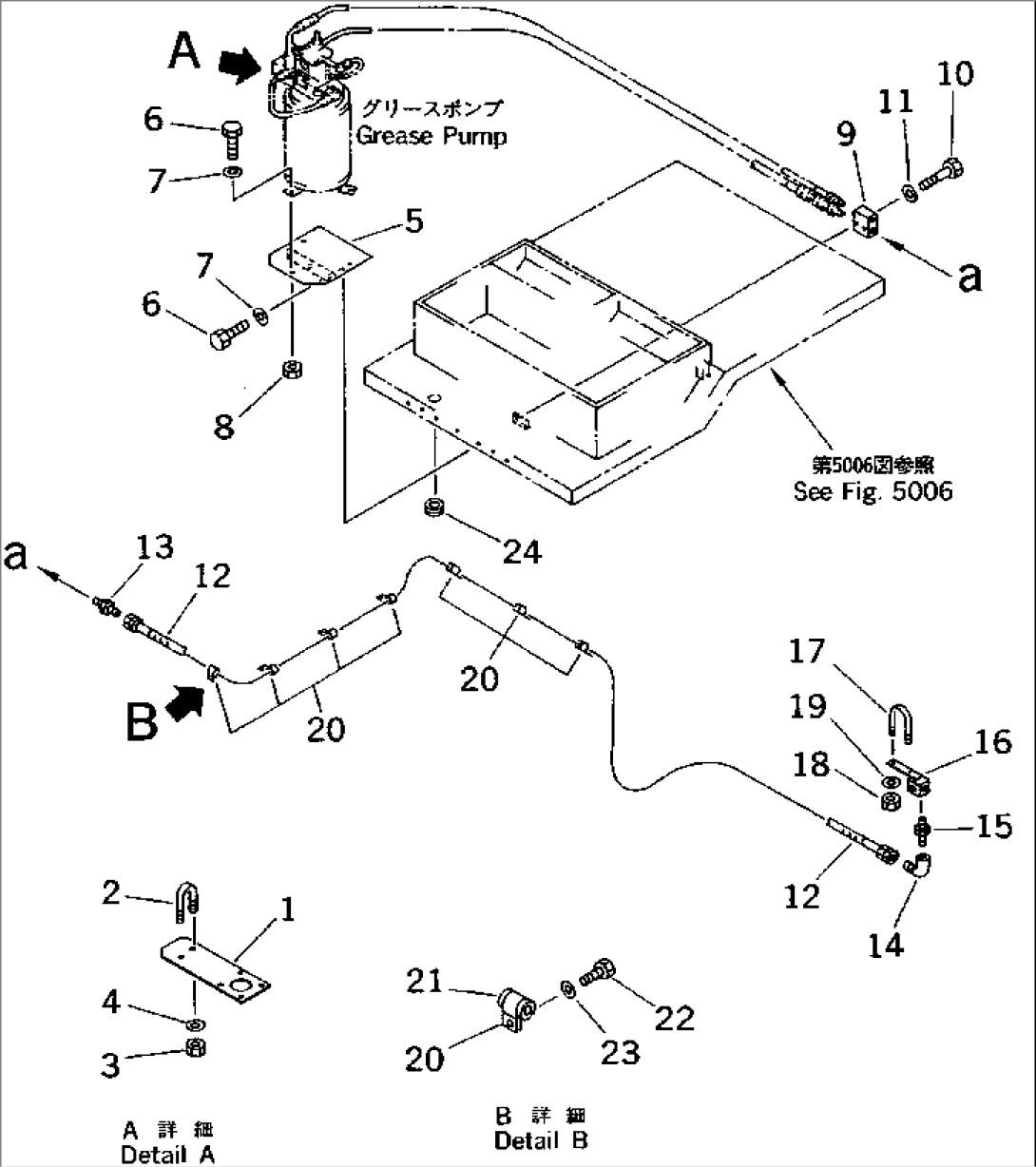

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-95-63110 | PLATE | 2202- | |
| 2 | 195-01-13260 | CLIP | 2202- | |
| 3 | 01598-00608 | NUT | 2202- | |
| 4 | 01643-30623 | WASHER | 2202- | |
| 5 | 561-95-63130 | BRACKET | 2202- | |
| 6 | 01010-51025 | BOLT | 2202- | |
| 7 | 01643-31032 | WASHER | 2202- | |
| 8 | 01580-11008 | NUT | 2202- | |
| 9 | 561-95-63160 | BLOCK | 2202- | |
| 10 | 01010-51065 | BOLT | 2202- | |
| 11 | 01643-31032 | WASHER | 2202- | |
| 12 | 07086-00645 | HOSE | 2202- | |
| 13 | 202-62-41270 | NIPPLE | 2202- | |
| 14 | 565-44-15380 | ELBOW | 2202- | |
| 15 | 07238-10628 | CONNECTOR | 2202- | |
| 16 | 561-95-63190 | BRACKET | 2202- | |
| 17 | 07283-27663 | CLIP | 2202- | |
| 18 | 01599-01011 | NUT | 2202- | |
| 19 | 01643-31032 | WASHER | 2202- | |
| 20 | 285-02-11320 | CLIP | 2202- | |
| 21 | 566-61-49810 | INSULATOR | 2202- | |
| 22 | 01010-51016 | BOLT | 2202- | |
| 23 | 01643-31032 | WASHER | 2202- | |
| 24 | 08037-05016 | GROMMET | 2202- |
