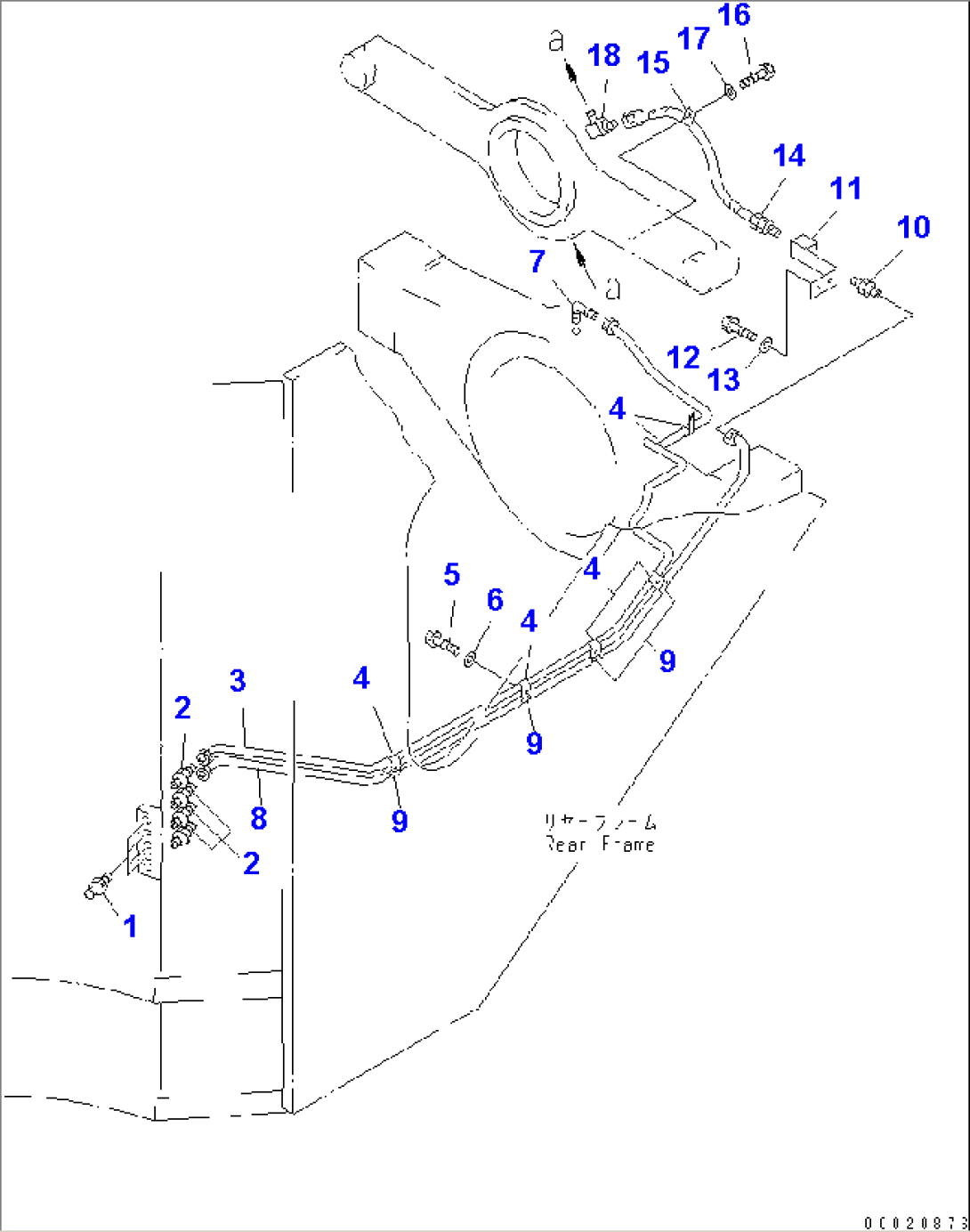

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00000 | FITTING,GREASE | 52001- | |
| 2 | 07214-70710 | CONNECTOR | 52001- | |
| 3 | 427-46-16114 | TUBE | 52001- | |
| 4 | 425-70-13120 | CLIP | 52001- | |
| 5 | 01010-81020 | BOLT | 52001- | |
| 6 | 01643-31032 | WASHER | 52001- | |
| 7 | 07217-70712 | ELBOW | 52001- | |
| 8 | 427-46-16123 | TUBE | 52001- | |
| 9 | 425-70-13120 | CLIP | 52001- | |
| 10 | 07214-70710 | CONNECTOR | 52001- | |
| 11 | 427-46-16190 | BRACKET | 52001- | |
| 12 | 01010-81020 | BOLT | 52001- | |
| 13 | 01643-31032 | WASHER | 52001- | |
| 14 | 427-46-16230 | HOSE | 52001- | |
| 15 | 424-06-12730 | CLIP | 52001- | |
| 16 | 01010-81020 | BOLT | 52001- | |
| 17 | 01643-31032 | WASHER | 52001- | |
| 18 | 426-70-13270 | ELBOW | 52001- |
